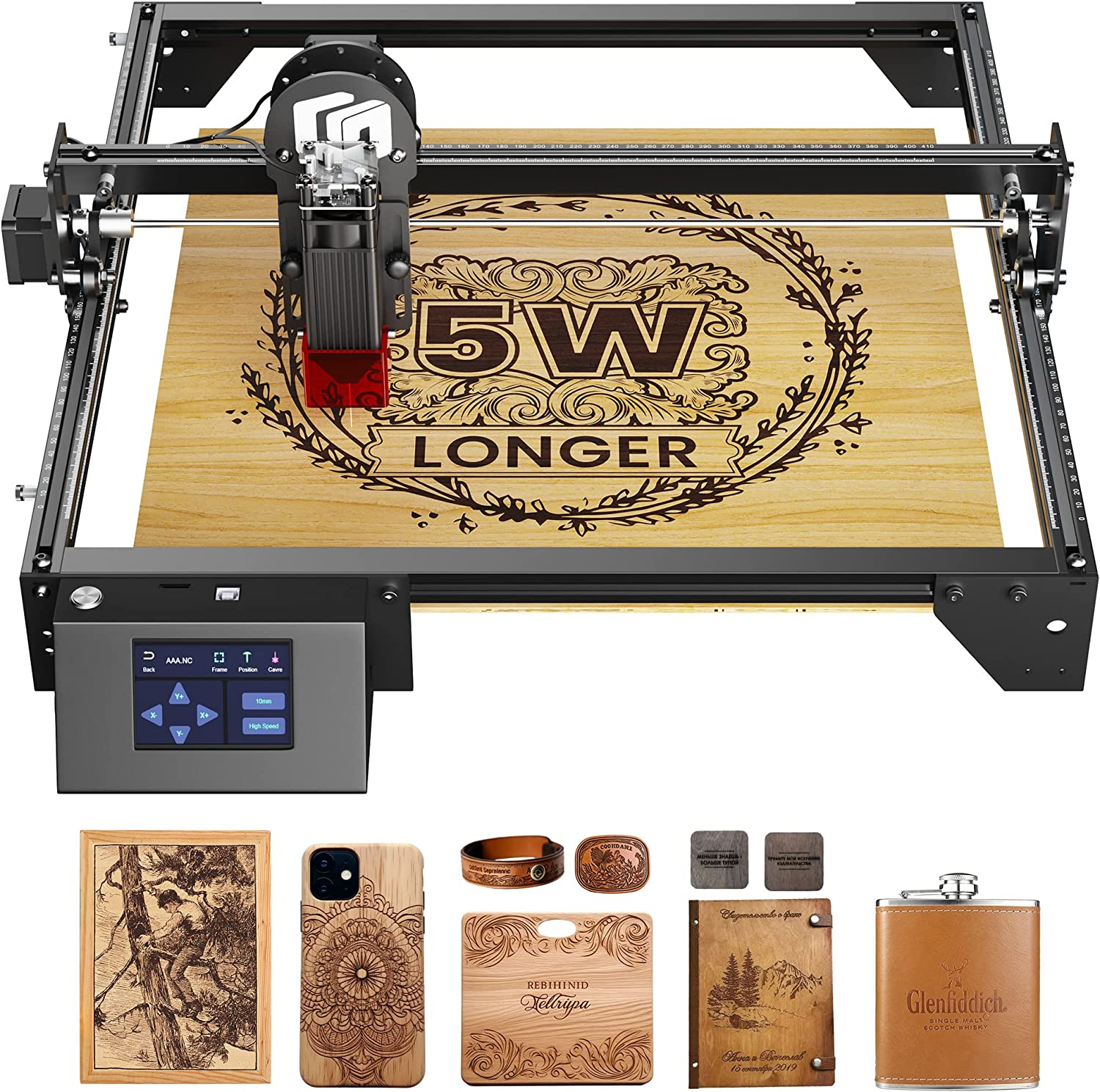

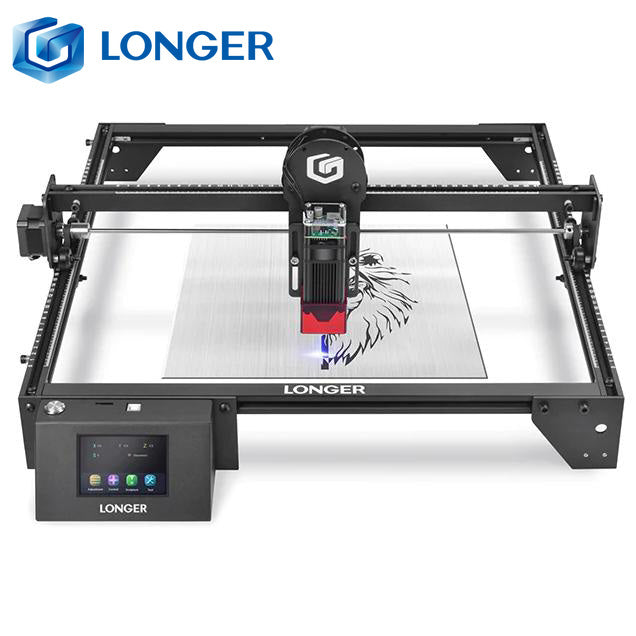

Longer RAY5 5W Laser Engraving Cutting Machine for Wood Metal 3.5-inch Color Touch Screen 400x400mm Engraving Area


Longer


● Ultrafine 5.5W Optical Output
● 0.08*0.08mm FAC Compressed Laser
● 3.5'' Built-in Touch Screen & Offline Work
● Large Working Space: 400mm*400mm(15.75''*15.75'')
● Easy Set-up, great for first-time laser engraver users
● Upgradable to 10W/20W laser module
● PS: Non-US and non-EU regions may incur additional customs duties when shipping, such as the UK, Switzerland and Canada.
Save -41% $199.00 $335.99

Power/Plug Type
shiping   US Warehouse: In stock in the US (arrived within 2 to 5 days)
return    30-Day Returns: Protect your shopping experience
safe   12-Month Warranty: Perfect after-sales service
Notify Me
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Longer RAY5 5W Features:

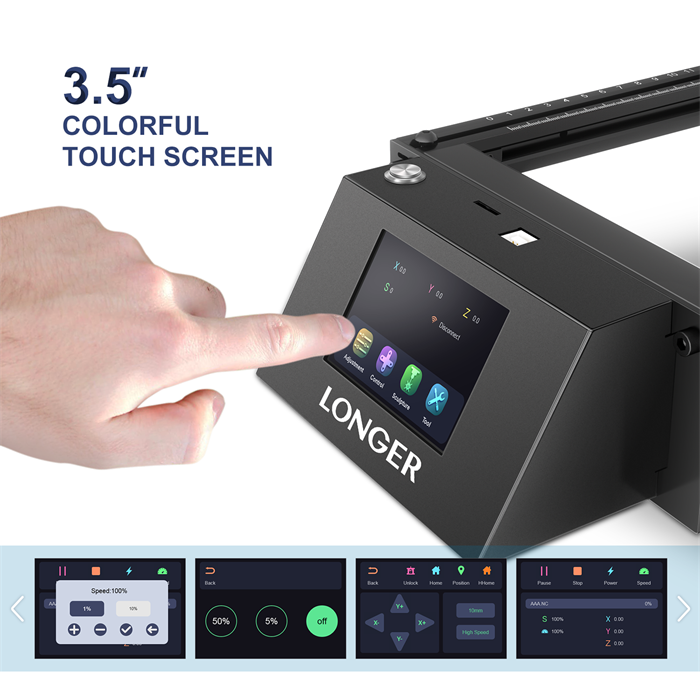

  • 【Touch Screen & Offline Carving】LONGER RAY5 5W laser engraver has a built-in 3.5” touch screen with a friendly user interface.  This allows us to cut multiple pieces of plywood or images to be engraved without tying up your computer to run it. The Longer Ray5 has a built-in controller and no computer required to connect the laser engraver all the time. Save your file to a TF card, and use it to run the Ray5 for engraving or cutting.

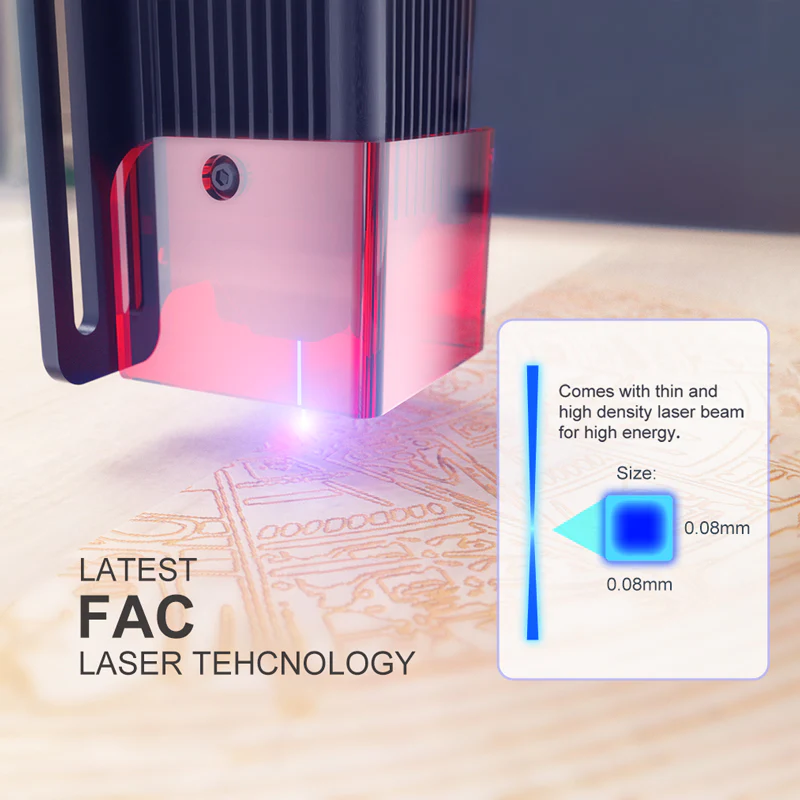

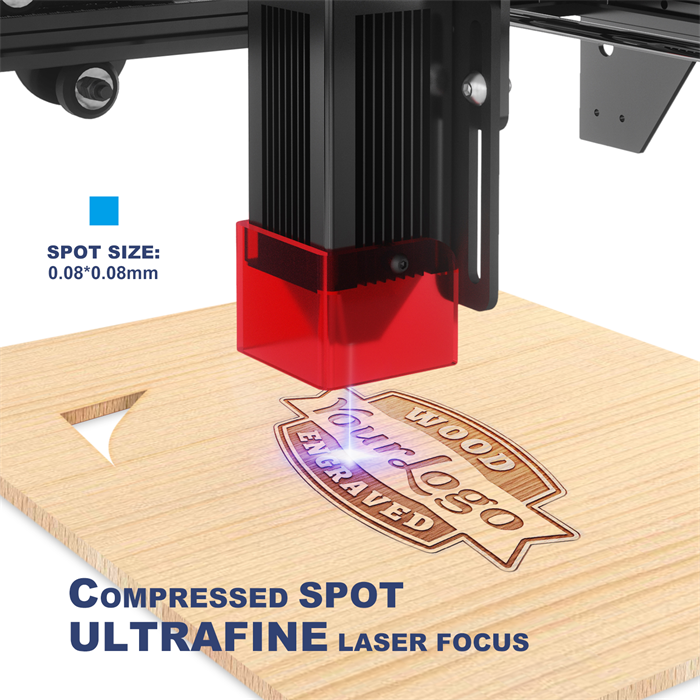

  • 【Ultrafine Laser Point & Powerful Laser Module】This laser engraver comes with the latest FAC laser technology for compressed laser point, the size of the point is 0.08*0.08mm; The smaller size of the point, the more focused the energy. This allows the engraving or cutting to be much stronger. The output power of the laser module reaches 5-5.5W.
  • 【32-Bit Chipset & WIFI Connection】RAY5 is built with an ESP32 chipset and includes a WIFI connection for the engraver to router. This 32-bit chipset is running at 240MHz.That means it is faster and more powerful than comparably equipped machines with 8-bit chipsets. As an added bonus, the RAY5 supports WIFI connections through the web page or App to control engraving or cutting.

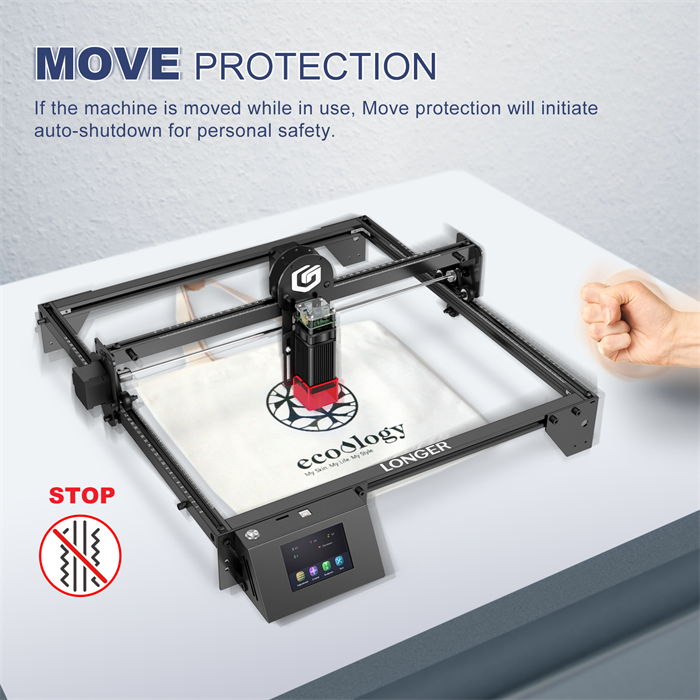

  • 【Safety Protection】Longer RAY5 5W is designed with move protection and thermal protection functions. If the machine is moved while in use, Move protection will initiate auto-shutdown for personal safety. Thermal protection initiates an auto-shutdown if it detects a flame or the engraving area overheats.

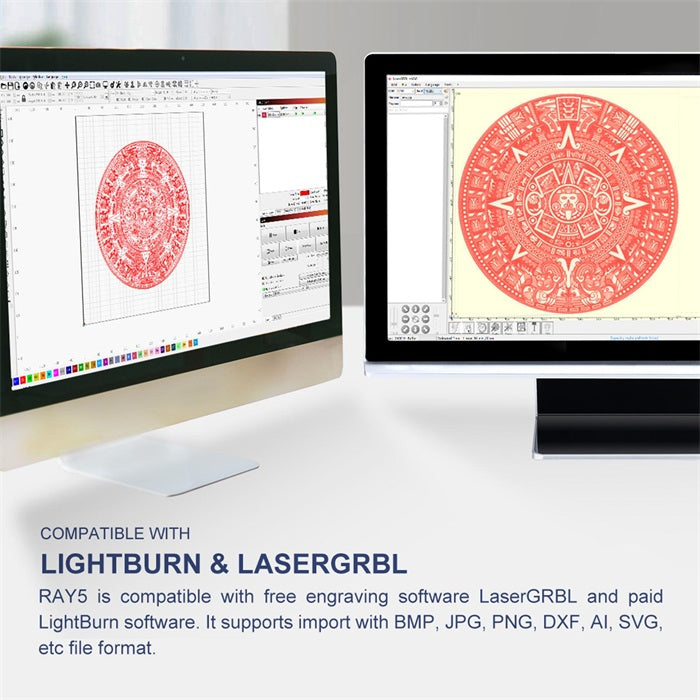

  • 【Compatible with Windows/MAC/Linux System】RAY5 is compatible with free engraving software LaserGRBL and paid LightBurn software. It supports import with BMP, JPG, PNG, DXF, AI, SVG, etc file format.

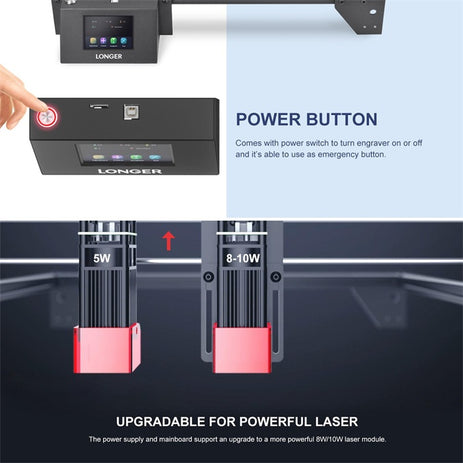

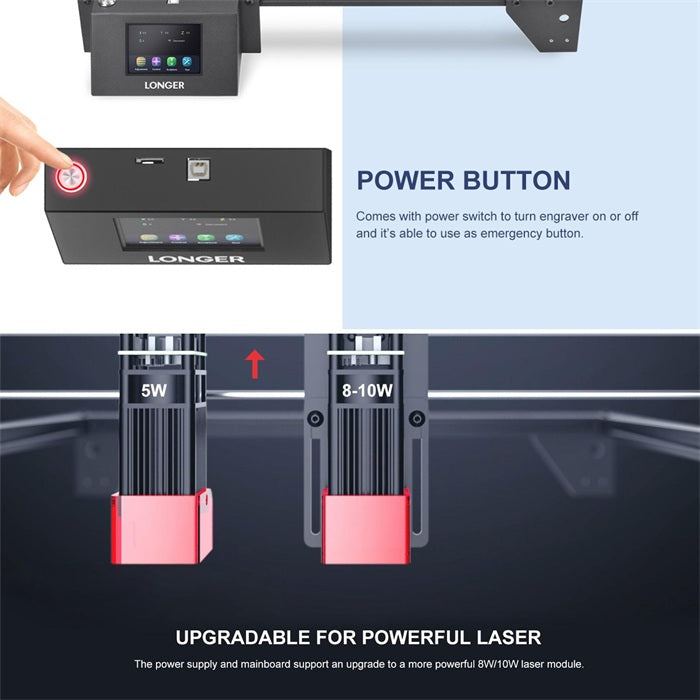

  • 【Power Button & Eye Protection】The engraver comes with a power switch to turn the power on or off. The laser module has an acrylic cover.  This shields the laser light to help protect eyes. You will want to wear eye protection for laser scatter as well.
  • 【Upgradable Laser Module】 RAY5 5W laser engraver is upgradable. The power supply and mainboard support an upgrade to a more powerful 8W/10W laser module.

Cutting Objects: Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.
Carving Objects: All wood, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal.

LONGER RAY5 5W Laser Engraver Specification:


  • Brand: Longer
  • Model: RAY 5
  • Laser Technology: Diode Fiber Laser
  • Working Area: 400x400mm(15.75 x 15.75 inch)
  • Laser Wavelength: 450nm
  • Focus Type: Fixed Focus -30mm Focal Range
  • Spot Size at Optimal Focus: 0.08x0.08mm
  • Optical Output Power: 5W-5.5W
  • Z Axis-Height Range: Up to 65mm
  • Engraving/Cutting Speed: 40-10000mm/min
  • Engraver Output: DC 12V 5A
  • Engraver Input: AC 110-240V
  • Software: LaserGRBL, compatible with LightBurn
  • Connection: USB/TF Card / Wifi
  • Laser Engraver Size: 61 x 67 x 20cm (24.01 X 26.38 X 0.79 Inch)
  • Package Size: 59 X 31 X 15cm/23.3 X 12.2 X 5.9Inch
  • Package Weight: 4.75KG/10.47LBS
  • Packing Details:

    • X-Axis Frame*1
    • Laser Module
    • Timing Belt,Frame*4
    • Power Cable
    • Safety Glasses
    • USB Cable
    • Plywood
    • Support Feed
    • Control Box
    • Card Reader&TF Card
    • Frame*4
    • Others Accessories
    LONGER RAY5 5W laser engraver
    LONGER RAY5

    LONGER RAY5 5W review

    LONGERlaser engraving machine

    FAQ:

    Q: LONGER focuses on 3D printer products. Why did it launch the laser engraver and what are some of its advantages.
    A: LONGER has a good technical accumulation in 3D printers. This feature has been recognized by so many customers across the globe. In addition, Laser Engraving and 3D Printing make use of the same technology called "DIY" while so many 3D printer users have a strong demand for laser engraving machines.
    Based on LONGER's mature 3D printing technology, LONGER experts developed the first engraving machine with a built-in touch screen, which gives a better experience for users.
    Q: When will the order be delivered? From which warehouse?
    Overseas warehouses are located in the United States and the Czech Republic and will be delivered within 48 hours after placing an order.
    Q: What are the advantages of connecting the touch screen to the laser engraver?
    A: The touch screen can be used for offline engraving /cutting without connecting to the computer for engraving, which is more convenient to operate, realize large-scale engraving, and save cost.
    Q: What software does the engraving machine support?
    A: LightBurn Software For Windows(XP/7/8/10) / MAC /Linux; LaserGRBL Software For Windows Only.
    Q: What materials can be engraved?
    A: Support engraving materials: wood, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating, and lacquered metal.
    Q: What material can be cut?
    A: Support cutting materials: Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board. Ray5 can cut 4mm plywood and 6mm pine board.
    Q: How long can Ray5 last and how soon can a finished product be carved?
    A: Ray5 has the capability of working 24 hours continuously with no disruption. Generally, a finished product can be engraved in five minutes.
    Q: Is Ray5 easy to assemble? How long will it take to assemble it?
    A: Ray5 is quite easy to assemble; the process can be completed in 30 minutes.
    Q: Can the laser module be replaced? Can I upgrade?
    A: The LONGER RAY5 supports 5.5w/10w laser heads. Meanwhile, the 10W laser head is expected to be released in May. This can be purchased separately for self upgrading.
    Q: What are the warranty conditions?
    A: Customers who purchase from the official website will enjoy a one-year warranty.
    Q: Does LONGER Ray5 have a protection function in case of accidents in the engraving process?

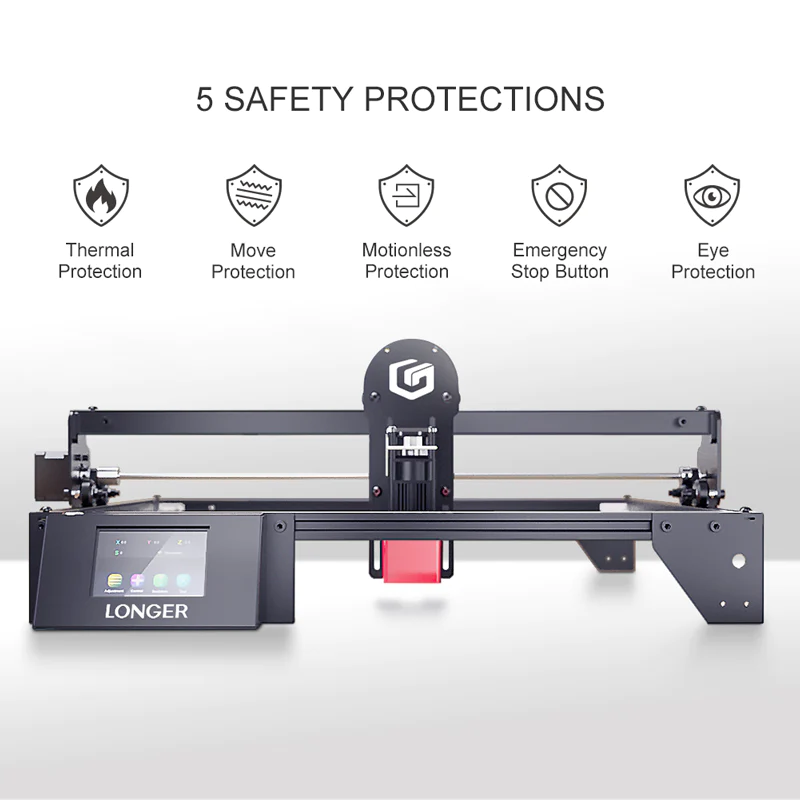

    A: This amazing device has five safety protections: Thermal Protection/Move Protection/Motionless protection /Emergency Stop Button/Eye Protection.
    Q: Is there a limit switch?
    A: No, RAY5 only has several plysical limits.
    Q: Can Ray5 auto focus?
    A: No it can't. Manual focusing is required.


    LaserGRBL VS LightBurn Software

    LaserGRBL (Free) (Windows): LaserGRBL Download Page

    LaserGRBL is one of the best Windows software for image Laser Engraving. It is able to load any image, pictures and logo and send to your laser engrave with few click. It is specifically developed for use with hobbist laser cutter and engraver and could be a good free and easy alternative to picengrave, benbox, T2laser, lightburn for who don’t need more then a simple and effective tool. LaserGRBL is compatible with any engraver based on Grbl v0.9 and Grbl v1.1 standards.

    LightBurn (Paid - 30 Day Free Trial) (Windows/Mac OS/Linux): LightBurn Download Page  , Purchase LightBurn software key.

    LightBurn is layout, editing, and control software for your laser cutter. With LightBurn you can:

    - Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, BMP)

    - Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing

    - Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more

    - Send the result directly to your laser cutter

    LightBurn is a native application written for Windows, Mac OS, and Linux.
