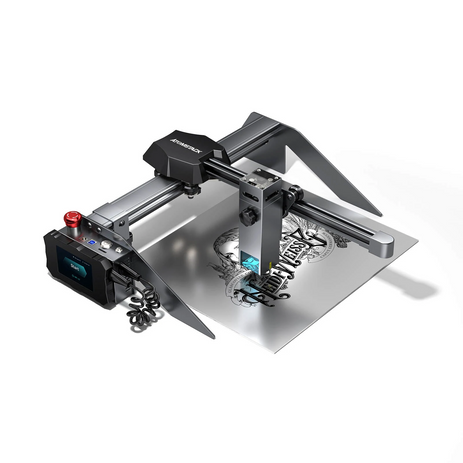

ATOMSTACK P9 M50 10W Laser Engraving Cutting Machine with Touch Screen & 32-Bit Chipset 220*250mm Engraving Area Fixed Focus
Atomstack
translation missing: en.products.product.loader_label
Free Fast Shipping in US. Ship out in 1-2 business days from US Warehouse.
- Can Easily Cut 20mm Thick Wooden Board & 15mm Black Acrylic
- Can Directly Engrave Mirror Stainless Steel Metal And Ceramics
- The Cutting Speed Is 40% Higher Than The Ordinary Laser Engraver
- Comparable To The Effect Of The 150w Co₂ Laser Engraving Machine
$399.99
Atomstack P9 M50 Laser Engraving Machine Features:
- The new filter panoramic glass eye protection design: the panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, you and the people around you do not need to wear goggles, you can also watch laser engraving. Reduce the cost of your goggles and the inconvenience of wearing goggles.
- Robust and easy-to-install structure design: The all-aluminum alloy anodized structure design makes the laser engraver more durable and improves the accuracy of engraving. The portable all-metal structure, 85% pre-assembly, can be installed in 5 minutes.
- Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving;The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
- Wide compatibility:The Atomstack P9 M50 laser engraving machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
- Upgraded dual compression spot coupling technology: ultra-fine laser focus area is reduced to 0.06*0.06mm, high-density laser can easily cut 20mm thick wood, 15mm thick black acrylic; can directly engrave mirror stainless steel metal, ceramics, glass, and engraving &The cutting speed is 40% higher than the ordinary model, which can be comparable to the effect of the 150W CO₂ laser engraver.
- Integral screw rod: The P9 M50 laser engraver uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.
- New laser with knob: It is more convenient and quick to adjust the height of the laser.

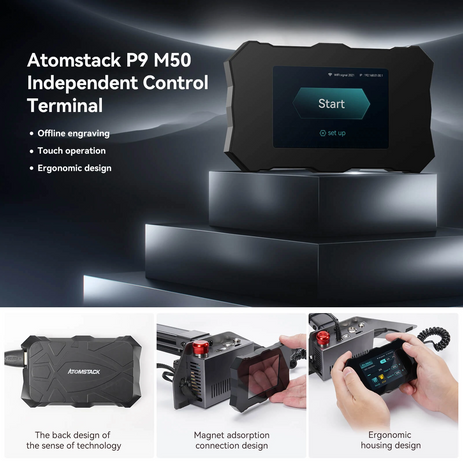

- Support offline engraving: P9 M50 configures the terminal control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.
- The laser sintering temperature is up to 1200℃
- Emergency stop button: In the event of an unexpected situation, stop the machine at any time to make the engraving safer
- Stopper: Yes
- Reset switch: Yes
- Colorful gift box packaging: more beautiful, convenient for you to store or give as a gift to others
P9 M50 Laser Machine Description:
- Item model number: ATOMSTACK P9 M50
- Print Size: Recommend Print Size: 220*250mm
- Carving Objects:Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective
- Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
- Cutting Objects:Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;
- Laser power: 50W
- Laser output power: 10-11W
- Wave Length: 445 ± 5nm
- Engraving accuracy: 0.01mm
- Focusing method: fixed focus laser, no need to focus
- Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
- Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
- Input Format: NC, BMP, JPG, PNG, DXF, etc.
- Data transmission method: USB connection/SD card
- Input Voltage: AC100-240V, 50/60Hz
- Output Voltage: DC12V, 5A
- Certification: CE FCC RoHS FDA PSE
P9 M50 PACKAGE:
1×Screw parts (Step2/3/4/5) |
3 × Wood chips |
1×Display cable |
1×Manual |
1×Dust-free cloth |
1×Card reader |
1×Power adapter |
1×Laser assembly |
1×Tool kit |
5×Cable tie |
1×Power cable |
1×X axis assembly |
1×Fixed focus film |
1×Accessories package |
1×Data line |
1×Y axis assembly |
3×Acrylic sheet |
1×Display assembly |
1×Metal cutting pad |
2×Support tripod |
4×Assembly block |
1×Desiccant |
Note:
- When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
- Please do not touch the laser emitter with your hand, or it may burn your hand.
- Please avoid strong impact on the machine.
- Children under 14 are not allowed to use this product and children over 14 need adult supervision.
- The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
