Atomstack P9 M40 Mini 40W Laser Engraver with Touch Screen Control Terminal Portable Wood Laser Cutter 200x200mm Engraving Area 5.5W Output Power


Atomstack


Free Fast Shipping in US. Ship out in 1-2 business days from US Warehouse.

- Touch Screen Control & Support Offline Engraving

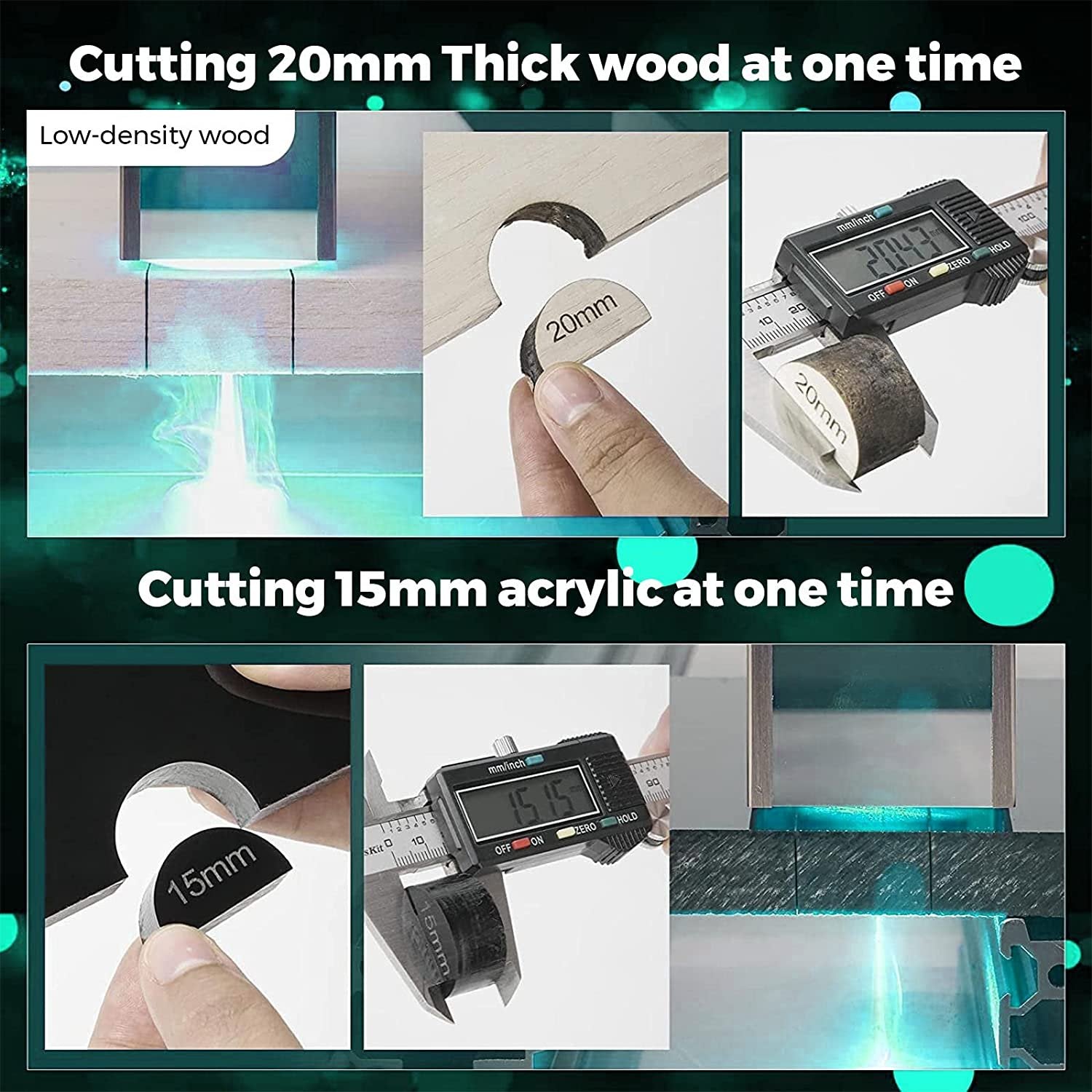

- Can Easily Cut 15mm Thick Wooden Board & 15mm Black Acrylic
- Can Directly Engrave Mirror Stainless Steel Metal And Ceramics
- 200x200mm Engraving Areameet Various Engraving Needs
- Can Be Comparable To The Effect Of The 100W Co₂ Laser Engraver

Save -2% $279.99 $284.99

AC POWER PLUG
Notify Me

ATOMSTACK P9 M40 Laser Engraver Features:

  • New filter eye protection acrylic design: The filter acrylic protective cover plays a good role in protecting your eyes, filtering 97% of ultraviolet light, you and the people around you do not need to wear goggles, you can also watch the laser engraving. Reduce your goggle expense and the inconvenience of wearing goggles.
  • Robust and easy-to-install structure design: The all-aluminum alloy anodized structure design makes the laser engraver more durable and improves the accuracy of engraving. The portable all-metal structure, 85% pre-assembly, can be installed in 5 minutes.
  • Upgraded high-performance fixed-focus laser: No need to adjust the focus before engraving;The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
  • Wide compatibility:The Atomstack P9 M40 laser engraver  can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
  • Precise scale lines axis : There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.
  • Newly upgraded compressed laser: Newly upgraded ultra-fine compressed laser: The laser adopts 4-fold lens group collimation focusing technology, the optical power is 5-5.5W, the laser focus area is reduced to 0.08*0.08mm, and the high-density laser can easily cut 15mm thick Wooden board, 15mm black acrylic; it can directly engrave mirror stainless steel metal and ceramics, and can achieve the effect of 100W CO₂ laser engraving machine.
  • Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

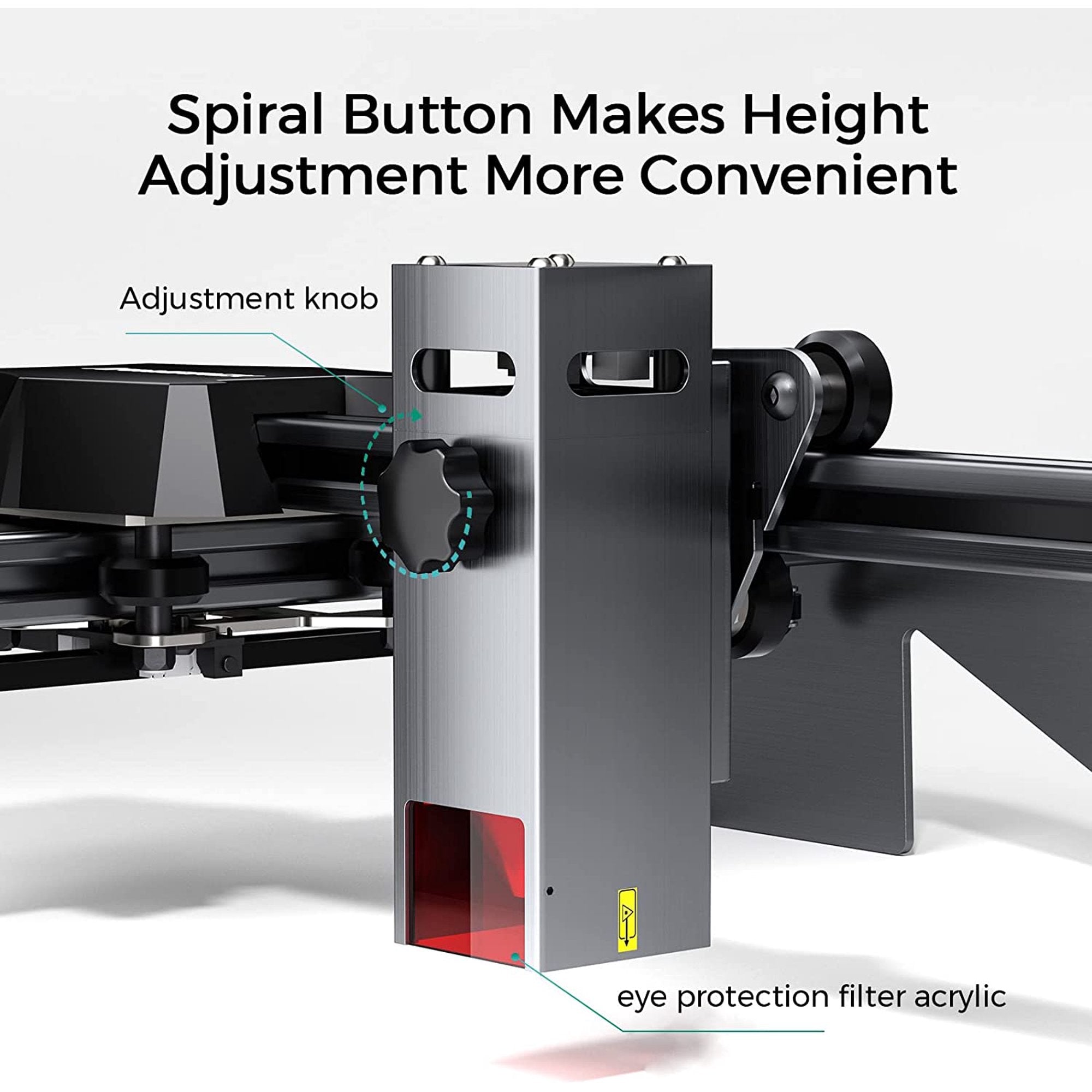

  • New laser with knob: It is more convenient and quick to adjust the height of the laser.
  • Support offline engraving: P9 M40 configures the terminal control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.
  • The laser sintering temperature is up to 850℃
  • Emergency stop button: In the event of an unexpected situation, stop the machine at any time to make the engraving safer
  • Stopper: Yes
  • Reset switch: Yes
  • Colorful gift box packaging: more beautiful, convenient for you to store or give as a gift to others

P9 M40 Laser EngraverDescription:

Item model number
ATOMSTACK P9 M40
Carving Objects
Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective,Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
Print Size
Recommend Print Size: 220*250mm
Cutting Objects
Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;
Laser power
40W
Input Format
NC, BMP, JPG, PNG, DXF, etc.
Laser output power
5-5.5W
Data transmission method
USB connection/SD card
Wave Length
445 ± 5nm
Input Voltage
AC100-240V, 50/60Hz
Engraving accuracy
0.01mm
Output Voltage
DC12V, 5A
Focusing method
Fixed focus laser, no need to focus
Certification
CE FCC RoHS FDA PSE
Laser protective cover
Protect the user's eyes and prevent pets from grabbing the laser spot.


P9 M40 PACKAGE:

1 × Screw parts (Step2/3/4/5)
1 × Dust-free cloth
1 × Tool kit
1 × Fixed focus film
3 × Acrylic sheet
3 × Wood chips
1 × Card reader
5 × Cable tie
1 × Accessories package
1 × Display assembly
1 × Display cable
1 × Power adapter
1 × Power cable
1 × Data line
1 × Metal cutting pad
1 × Manual
1 × Laser assembly
1 × X axis assembly
1 × Y axis assembly
2 × Support tripod
4 × Assembly block
1 × Desiccant


Note:

  • When operating the laser engraver, please install the laser protective cover. If it is not installed, you need to wear goggles.
  • Please do not touch the laser emitter with your hand, or it may burn your hand.
  • Please avoid strong impact on the machine.
  • Children under 14 are not allowed to use this product and children over 14 need adult supervision.
  • The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
