Sculpfun S30 Pro 10W Laser Engraving Machine with Automatic Air Assist Pump & Nozzle Cleaner and Faster Higher Accuracy Laser Engraver 410x400mm Engraving Area
Sculpfun
translation missing: en.products.product.loader_label
Free Fast Shipping in US & EU. Delivered within 3-5 business days !
- Equipped With Automatically Controlled Air Assist System
- Can Cut 10mm Balsa Wood And 6cm Plywood At One Time
- Suitable For Frequent Cutting, Do Everything Faster
- Equipped With Advanced High-Pressure Air-Assisted Metal Nozzle
- Replaceable Protective Lens Improves The Service Life of The Laser
$519.99
Sculpfun S30 Pro Features:
- Upgraded Laser Engraving with Air Assist System: The SCULPFUN S30 series is equipped with an airassist 32-bit motherboard and a control-type air pump, which can intelligently control the air-assist switch during engraving through the LightBurn software M8 button, this makes the engraving and cutting very clean, and is very suitable for the manufacture of exquisite gifts.
- Excellent Engraving Performance: Sculpfun S30 Pro 10W laser is suitable for frequent cutting, do everything faster; It can cut 10mm balsa wood and 6cm plywood at one time. And making it reach industrial-grade engraving accuracy with extremely solid and high-precision linear slide rail X-axis, no e wavy pattern in carving small items. 410*400mm large-area engraving range can meet your various engraving needs.
- Built-in high pressure air assist nozzle: S30 series laser engraver is equipped with advanced high-pressure air-assisted metal nozzle, which can generate high-pressure airflow under the air pump, greatly improving the cutting efficiency, and the cutting speed is more than 5 times faster than that without air assistance. The powerful airflow blows away the residue, making the cut surface very clean.
- Replaceable protective lens: Adopts innovative replaceable lens, greatly improves the service life of the laser, which is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore the cutting power. A free lens is included with the purchase, more lens can be easily purchased from Htpowlasers.
- Eye Protection and Safety Design: equipped with a detachable eye shield, which will not dazzle even without glasses. If you don't need it, you can easily disassemble it. The presented A4 size steel pad can well protect the table from laser damage. Isolate fire hazards. There is a very safe and eye-catching power switch on the machine, you can directly and quickly turn off the power in an emergency.
Specification:
- Model: SCULPFUN S30 PRO
- Power Input: 100-240V AC, 50/60HZ Output: 12V 5A
- Engraving accuracy: 0.005mm
- Engraving area size: 410*400mm
- Machine power: about 84W
- Motherboard: 32-bit air-assisted motherboard, reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately)
- Diode laser output power: 10W (note that this is light energy not electrical energy)
- Laser focus: 0.06x0.08mm
- Laser wavelength 455±5nm
- Focusing method: fixed focus column + sliding device
- Laser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.
- Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone
- Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards
- Operating software: LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
- Data transmission method: USB connection or BT wireless connection
Air Pump:
- Type: mainboard-controlled air pump, voltage 12V, flow 30L/min
- Air hose inner diameter: 7.5mm
- Package Size: 62.3x24x22.5cm/24.5x9.4x8.8in
- Package Weight: 6.85kg/15.1lb
Both 10W, what is the difference between SCULPFUN S30 Pro and other brands?
- 32-bit automatic air-assisted motherboard.
- Equipped with industrial-grade high-precision linear guide.
- Equipped with advanced hydrodynamic air-assist nozzle.
- Equipped with automatic air assist.
- Equipped with limit switches.
- Replaceable lens to improve 10 times laser life.

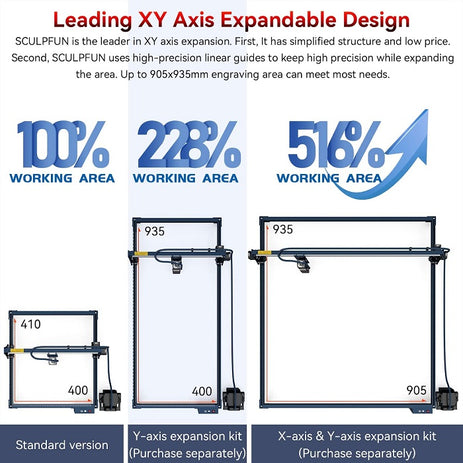

- Support 935x905mm large size engraving and cutting.
- Finer engraving, faster and cleaner cutting.
