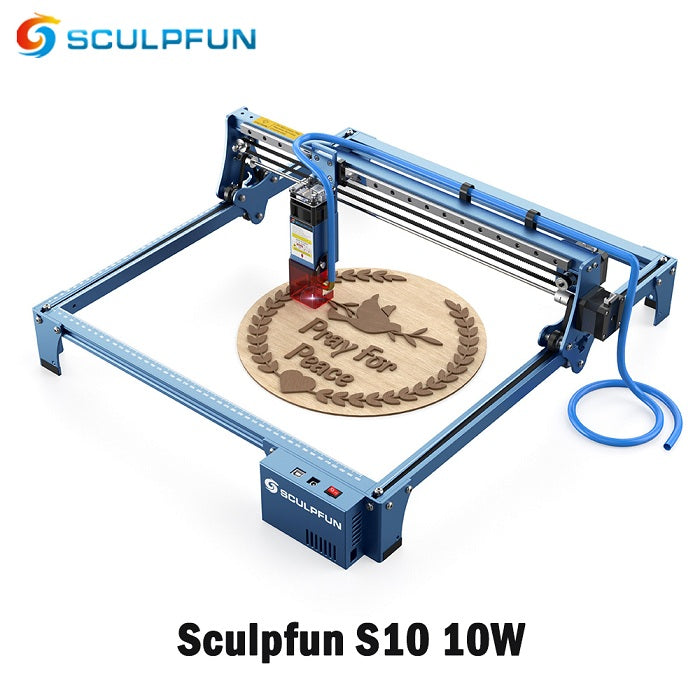

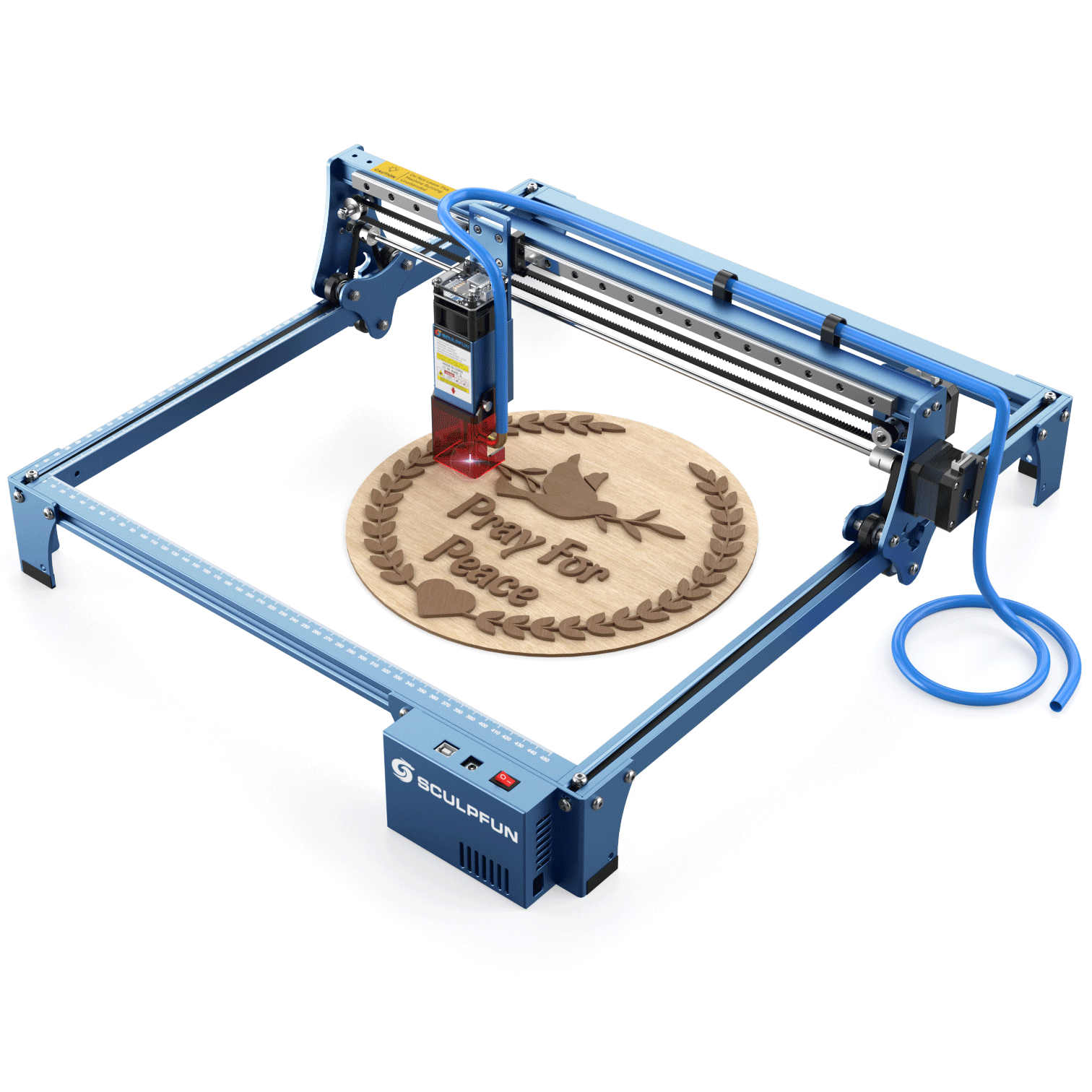

Sculpfun S10 Laser Engraver 10W Output Power High Accuracy Laser Cutter for Metal Wood with Air Assist Nozzle 410x400mm Engraving Area
Sculpfun
● Higher Energy Density, Stronger Cutting Penetration And Engraving Capabilities
● Can Cut 10mm Wood, 5mm Acrylic In 1 Pass & Cut 10mm Walnut And 6mm MDF
● Purchase The s10 y-Axis Extension Kit Can Expand The Engraving Area To 400 x 950 MM
● Reserves z-Axis And Limit Switch Functions To Facilitate People To Upgrade Laser engraver
30-Day Returns: Protect your shopping experience
12-Month Warranty: Perfect after-sales service
Sculpfun S10 Features:

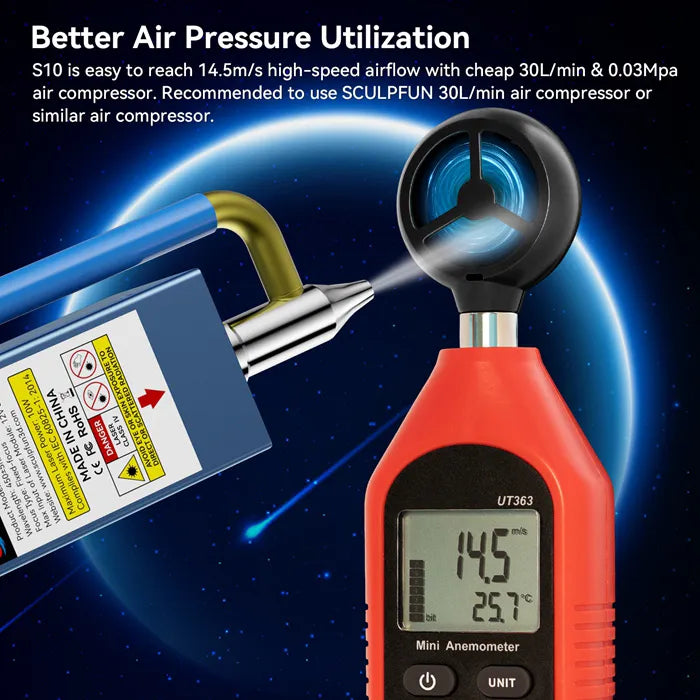

- Powerful High-speed Air Assist: Sculpfun S10 is equipped with a high-speed air assist nozzle. The difference of this nozzle is that it has an advanced fluid mechanics design to better utilize the air pressure. When using the same air compressor, the S10 spray airflow faster. For example, when using 30L/min, 0.03Mpa air compressor, the S10 nozzle will spray high-speed airflow up to 14.5m/s. This will greatly improve the cutting penetration and cutting efficiency.

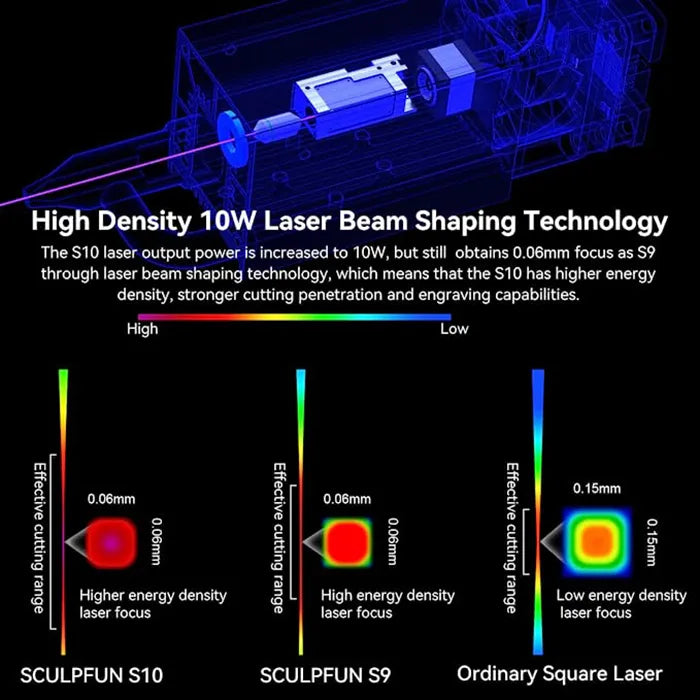

- Ultra-thin High Density 10W Laser Beam Shaping Technology: The Sculpfun S10 laser output power is increased to 10W, which is twice that of the Sculpfun S9. But S10 obtains the same ultra-thin laser beam with 0.08mm focus as S9 , which means S10 has higher energy density, stronger cutting penetration and engraving capabilities.

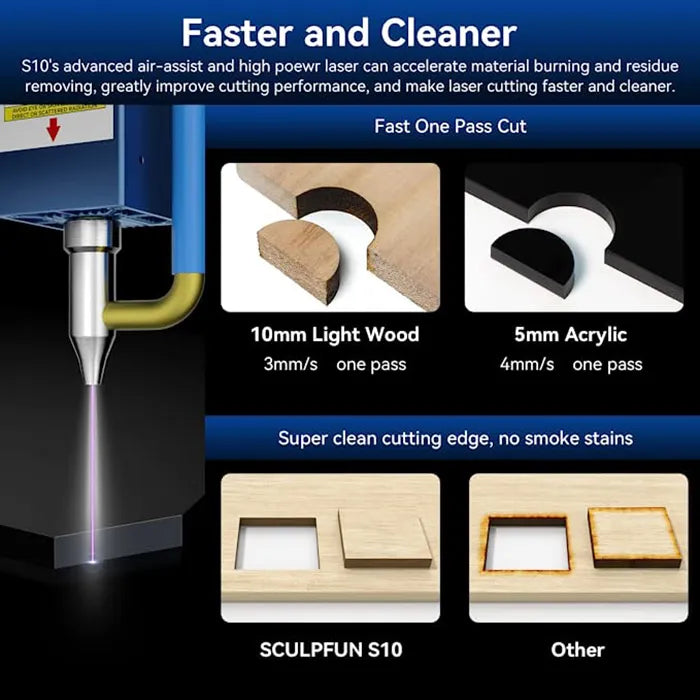

- Faster, Stronger, Cleaner: Combining advanced high-speed air assist and 10W high density laser, S10 shows comparable to industrial-grade wood cutting performance: First, the cutting efficiency is greatly improved, cut faster; Second, the cutting penetration is stronger, and many high-density woods can be cut; Third, the cutting surface is cleaner, the powerful airflow blows away the residue, so that there is no stain on the surface of the cutting object.

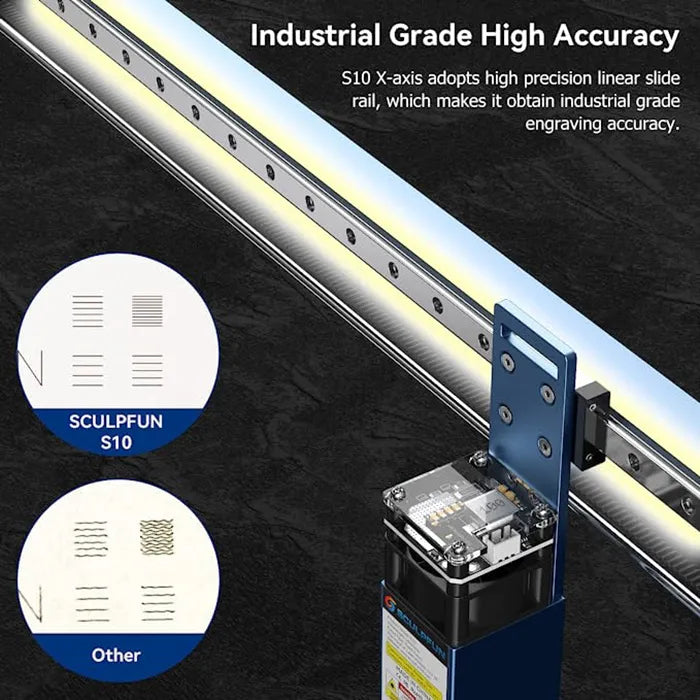

- Industrial-grade Cutting Accuracy: S10 adopts industrial high-precision linear slide rail X-axis, which makes it get industrial-grade engraving accuracy. When comparing the small engraving details, S10 does not have the wave lines that other ordinary engraving machines appear.
- More Advanced and Upgradable 32-bit Motherboard: The S10 motherboard uses 32-bit chips, with faster computing speed, and it still reserves Z-axis and limit switch functions to facilitate people to upgrade the engraving machine. It still perfectly supports laser cutting software like Lightburn and LaserGRBL.

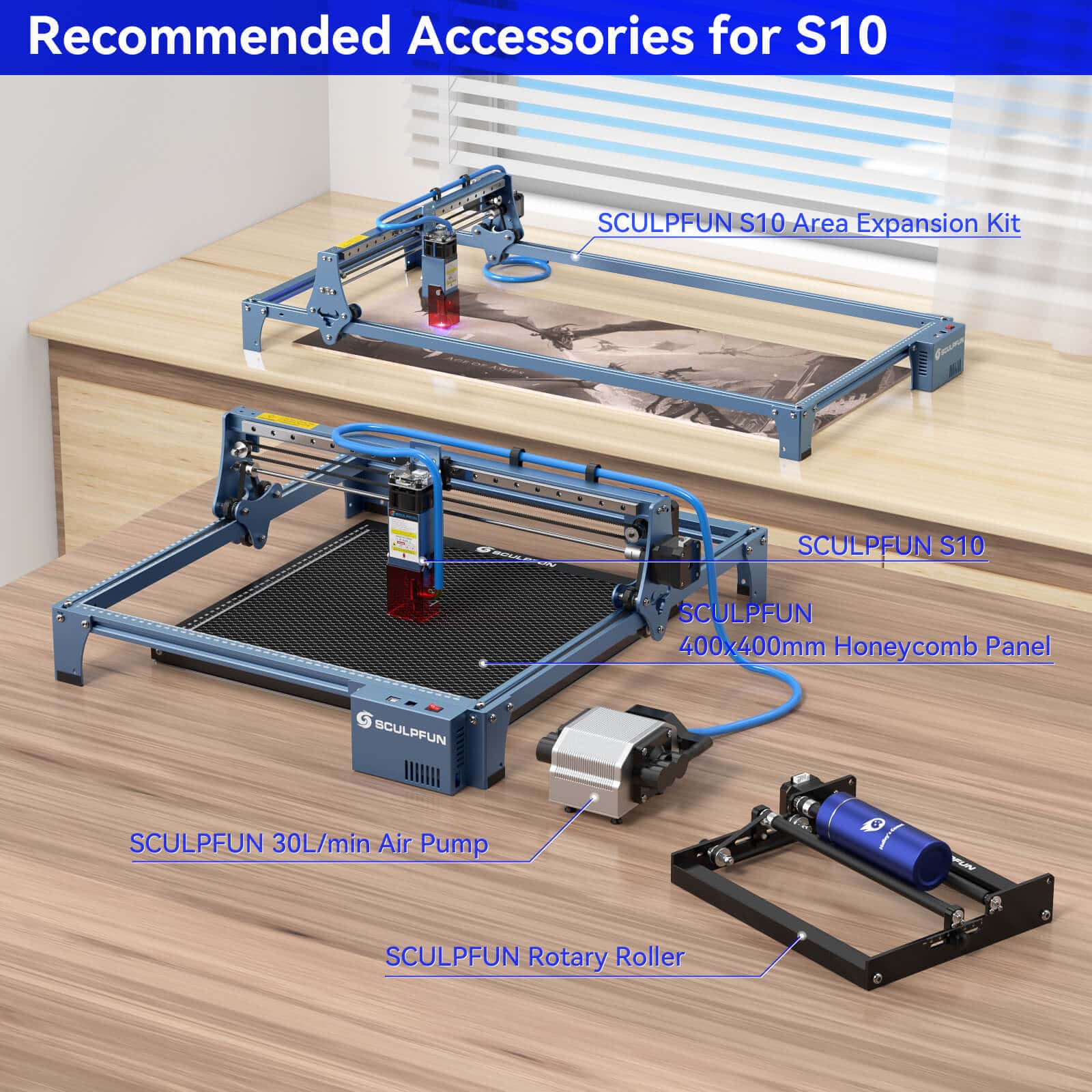

- Expandable Engraving Area: Sculpfun S10 keeps Y-axis expandable design like S9, the original engraving area is about 410x400mm, but you can buy S10 Y-axis extension kit to expand the engraving area to 410X940mm, which can help you get 230% of the engraving area at a very low price. This can help you better to deal with large-area engraving or cutting work.
- Adjustable Laser Eye Shield: The S10 laser is equipped with a detachable eye shield, which will not dazzle even without glasses. And if you don't need it, you can easily disassemble the eye shield.
- Safe Design: There is a very safe and eye-catching power switch on the laser engraver, you can directly and quickly turn off the power in an emergency. The all-metal body makes the machine very sturdy and durable.
- A4 Steel Pad: The free A4 size steel pad can protect the table from laser damage. Isolate fire hazards.
- Square Measuring Ruler: X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly. The 400x400mm large-area engraving interval can meet your various engraving needs.
Sculpfun S10 Laser Engraver Parameter:
- Diode laser output power: 10W (note this is light energy not electrical energy)
- Inner diameter of air pipe: 7.5mm (recommended to use 30L/min, 0.03Mpa air compressor, out diameter of nozzle:8mm)
- Laser wavelength :455±5nm
- Engraving accuracy: 0.01mm
- Engraving area size: 410*400mm
- Focusing method: fixed focus + sliding device
- Laser protection cover: Equipped with a detachable laser cover to protect the eyes. You can adjust it up and down, or remove the cover.
- Machine power consumption: about 36W (not related to engraving or cutting performance, just power consumption)
- Engraving material: all kinds of wood (including walnut, cherry and other high density wood), MDF,bamboo, cardboard, plastic, leather, PCB board, alumina, 304 stainless steel, ceramic, dark stone
- Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic, cardboard, bamboo, some plastic boards, leather,PCB boards
- Laser software: LaserGRBL, LightBurn, LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
- Data transfer method: USB connection
- Power input: 100-240V AC, 50/60HZ Output: 12V 5A
- Product weight: 3.42kg
- Packing weight: 5.13kg
- Packing size: 600*345*130mm
- Certification: CE FCC RoHS FDA ICE certification
Comparison of S9 and S10:
Sculpfun s9 | Sculpfun s10 | |
---|---|---|
Diode Output Power | 5.5-6W | 10W |
Engraving accuracy | 0.01mm | 0.01mm |
Engraving size | 410*420mm | 410x400mm |
Focusing Method | Fixed Focus + Sliding Device | Fixed Focus + Sliding Device |
Laser Beam | 0.08mm | 0.08mm |
Machine Electricity Power | 30W | 36W |
Expandable Engraving Area | 410x950mm | 410x940mm |
Detachable Laser Eye Shield | Yes | Yes |
Air Assist Nozzle | No | Yes |
Limit Switch Functions | No | Yes |
Engraving Material | wood, paper, cardboard, plastic, white, PCB board, aluminum oxide, black-painted metal/ceramic | Wood, Bamboo, Cardboard, Plastic, Leather, PCB Board, Aluminum Oxide, Non-reflective, Electroplating Layer and Paint Surface Layer Metal, 304 Mirror Stainless Steel, Glass, Ceramics, Cotton Cloth, Slate; |
Cutting material | wood, paper, tape, cloth, acrylic, cardboard, fabric, bamboo, plastic board, KT board… | Cardboard, Non-woven Fabric, Wood Board, Acrylic, some plastic boards, Sponge, cardboard, all kinds of wood (including walnut, cherry and other high-density woods), MDF, bamboo, leather, PCB boards |

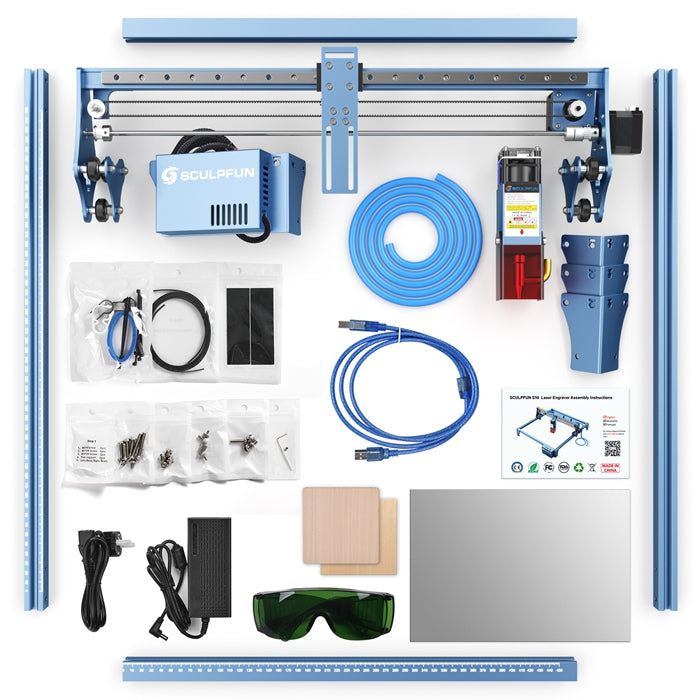

- 1*X-axis assembly
- 2* X profiles
- 2*Y profiles
- 1* Control Box Assembly
- 3*support feet
- 1* S10 laser
- 1*12V 5A power adapter
- 1* power cord
- 1*USB cable
- 1* Air Tube
- 3*Tool bag
- 1*Laser Goggles
- 1*Test wood board
- 1*A4 size metal pad

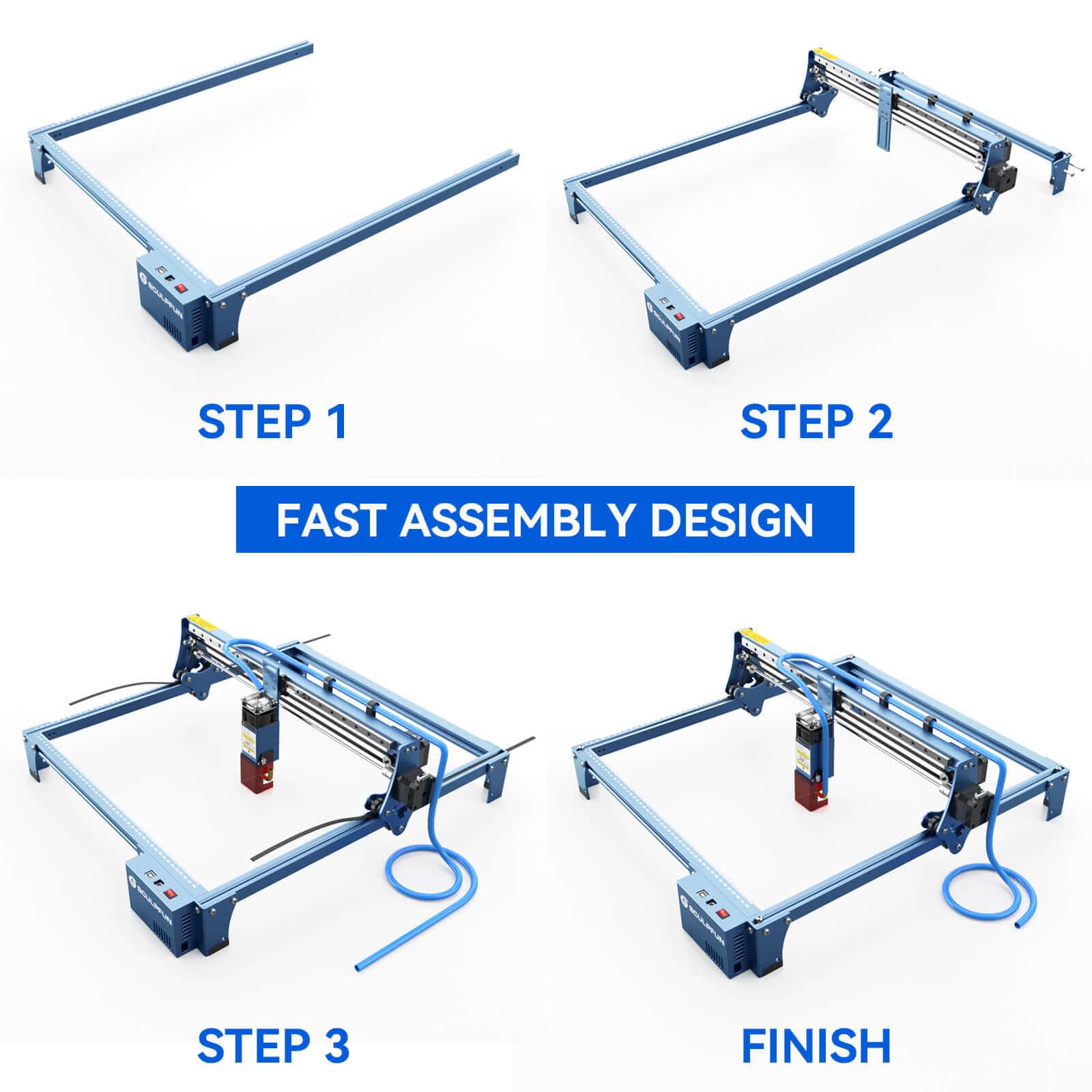

- 1*Step 1-6 Install the package
- 1*User Manual
LaserGRBL VS LightBurn Software
LaserGRBL (Free) (Windows): LaserGRBL Download Page
LaserGRBL is one of the best Windows software for image Laser Engraving. It is able to load any image, pictures and logo and send to your laser engrave with few click. It is specifically developed for use with hobbist laser cutter and engraver and could be a good free and easy alternative to picengrave, benbox, T2laser, lightburn for who don’t need more then a simple and effective tool. LaserGRBL is compatible with any engraver based on Grbl v0.9 and Grbl v1.1 standards.
LightBurn (Paid - 30 Day Free Trial) (Windows/Mac OS/Linux): LightBurn Download Page , Purchase LightBurn software key.
LightBurn is layout, editing, and control software for your laser cutter. With LightBurn you can:
- Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, BMP)
- Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing
- Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more
- Send the result directly to your laser cutter
LightBurn is a native application written for Windows, Mac OS, and Linux.
