Ortur Aufero Laser 2 LU2-10A Laser Engraver For Metal AL2 Wood Laser Cutter 15,000mm/min 10W & 5W 390mm×390mm Engraving Area
Ortur
LU2-4-SF: Short Focus Laser Module : It has a smaller Luminous Cavity, so it has a smaller Focal Spot and good at engraving high-precision pattern.
LU2-4-LF: Long Focus Laser Module :It's high power and has a Compressed Laser Spot, so it's good at cutting and better at engraving harder materials.
LU2-2: Laser Module:It's high power and has a longer Depth of Field, so it's good at engraving and better at cutting.
US Warehouse: In stock in the US (arrived within 2 to 5 days)
30-Day Returns: Protect your shopping experience
12-Month Warranty: Perfect after-sales service
US Warehouse: In stock in the US (arrived within 2 to 5 days)
30-Day Returns: Protect your shopping experience
12-Month Warranty: Perfect after-sales serviceAufero Laser 2 Description:
- 【Advanced Motherboard】Aufero laser 2 adopts the advanced motherboard (32-bit MCU) for fast and precise engraving; processes 32 instructions; up to 10,000 mm/min engraving speed; LU2-4-LF Long Focus Laser Module (Real Luminous Power: 4,500-5,500mw)
- 【Excellent Mechanical Structure】Aufero Laser enraving machine is designed with low gravity center of X-axis, providing more stability and ensuring accurate engraving even at high processing speed; 390mm × 390mm large engraving area to meet various DIY needs
- 【Broad Compatibility】Aufero laser engraver is compatible with mature engraving software - LaserGRBL (free), lightBurn (paid); supports Win XP / Win 7 / Win 8 / Win 10, Mac and Linux system; File types BMP, JPG, PNG, JPEG, SVG etc
- 【4 Security Protection】→ 1: Active Position Protection; 2: exposure duration detection and limitation; 3: laser beam safety protection; 4: Power Safety Control System; Full security protection allows you to hook onto your project without any worries
- 【Dual Eye Protection】Ortur Aufero Laser engraver features a protective cover that effecitvely protects your eyes from dazzling beam; comes with a pair of goggles for more protection; Works on food, MDF, cardboard, plywood, black acrylic, leather, power coated metal, stone, etc.
Aufero Laser 2 Laser Engraver Features:
- Most advanced ninth-generation laser control motherboard 32Bits MCU, which could preprocess 32 instructions and supports Win10 and Mac without installing drivers
- ESP32 chip with higher main frequency and calculation speed
- Laser control firmware version 1.8 with optimized algorithm for higher execution efficiency and faster machine engraving speed
- Adopts FreerTOS system, a more stable and efficient real-time operating system
- Up to 15,000 mm/min engraving speed

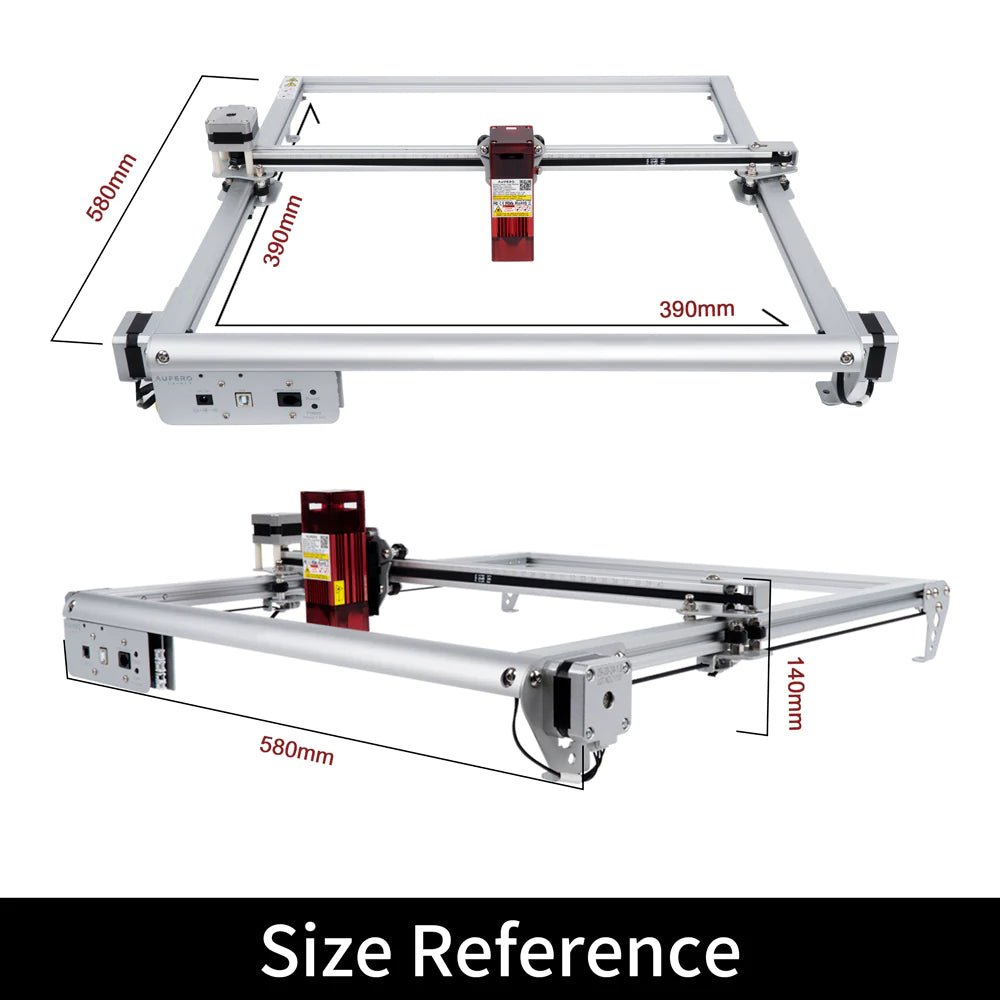

- 390×390mm Large engraving range
- Active Position Protection: With a gravity sensor installed, the laser will be stopped when the machine is moving
- Laser Beam Safety Protection: When the machine and the host computer are disconnected, the laser will stop
- Exposure Duration Detection and Limitation: when the XY axis of the machine does not move and the machine is emitting laser light, the laser will be turned off within a certain time limit;
- Power Supply Safety Management: when the input voltage is abnormal, the power supply to the laser module will be stopped
- Compatible with LaserGRBL (free) and Lightburn (paid)
- Note: LightBurn is paid software. After a 30-day free trial you will need to purchase a GCode License Key for continued use.

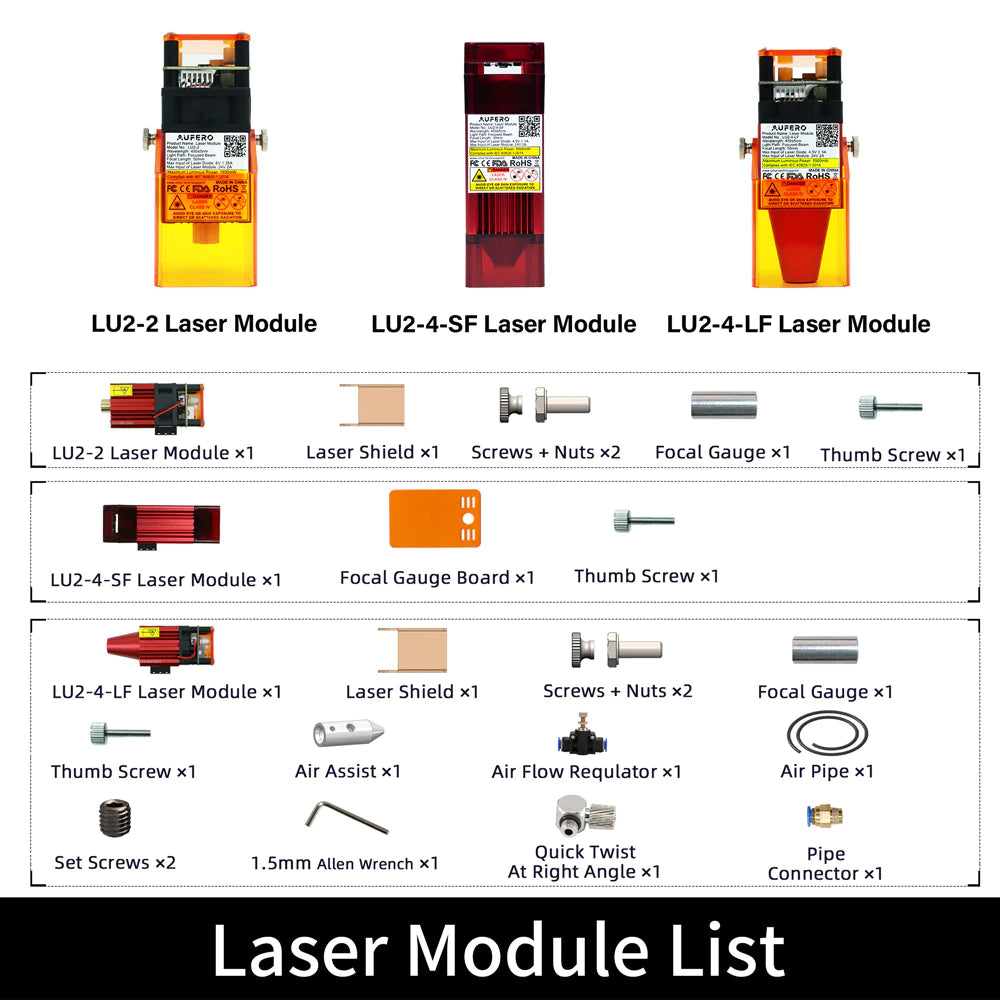

| Available Laser Modules | |||
| Product Name | LU2-4-SF | LU2-4-LF | LU2-2 |
| Optical Power | 4500- 5500 mW | 4500- 5500 mW | 1000-1600 mW |
| Focal Spot | About 0.12x0.15 MM | About 0.1 7x0.25 MM | About 0.07×0.06 MM |
| Light Path | Focused Beam | Focused Beam | Focused Beam |
| Focal Length | 30 MM | 50 MM | 50 MM |
| Electric Current | 3.4-3.6 A | 1.1-1.35 A | |
| Wavelength | 445+10 NM | 445+10 NM | 445±10 NM |
| Voltage | 4.2-5.0 V | 4.2-5.0 V | 5-6 V |
| Product Size | 40x41x122 MM | 40x41.5x1 10 MM | 40×41.5×96 MM |
| Specifications | ||
| Motherboard | OLM-PRO-V1.2 Motherboard,32Bits ESP32MCU | |
| Firmware | OLF-V180 series Firmware | |
| Safety Precautions | 1.Active Position Protection, 2.Exposure Duration Detection and Limitation, 3.Laser Beam Safety Guard, 4.24V Power Delivery System, 5.Power control system, if shutdown the machine, it would cut the power. |
|
| Add-ons | 1.Ortur Offline Controller 2.Ortur Saftey Enclosure |
|
| Frame Materials | Aluminum Profile + Metal Sheet | |
| Motors | NEMA 17 Stepper Motors | |
| Mechanical Precision | Y:12.5um，X:12.5um | |
| Pixel Accuracy | Adjustable (Default: 300 pixels per inch, about 0.81um Pixel Accuracy) | |
| Engraving Area | 390MM×390MM | |
| Available Laser Modules | LU2-2 Laser Module (Real Luminous Power: 1,000-1,600mw) LU2-4-SF Short Focus Laser Module (Real Luminous Power: 4,500-5,500mw) LU2-4-LF Long Focus Laser Module (Real Luminous Power: 4,500-5,500mw) Every 50 hours of use, please clean the lens with a medical cotton swab and alcohol. |
|
| Wave Length | 445±5nm | |
| Focus | Fixed Focus | |
| Control Mode | PWM | |
| Power Rate | S0-S1,000 | |
| Engraving Speed | 0-10,000MM/Min | |
| Baud Rate | 115200 – 921600 (Default: 115200) | |
| Computer OS | Win XP, Win 7, Win 8, Win 10, Win 11 (LaserGRBL) Mac and Linux (LightBurn) |
|
| Control Softwares | LaserGRBL (free), LightBurn (Paid Software) | |
| Input Format | JPG, JPEG, PNG, BMP, SVG, etc. | |
| Available Materials of Engraving |
Food, MDF, Paperboard, Black Acrylic, Leather, Stainless Steel, Power Coated Metal, Stone, etc. | |
| Available Materials of Cutting |
Plywood, Pine Board, Paperboard, Black Acrylic, Leather, Felt Cloth, etc. | |
| Input Voltage | 110V-220V (Compatible) | |
| Power Adapter Output | 24V / 2A | |
| Operating Temp. | -20℃-50℃ | |
| Packaging Information | ||
| Product Size | 582x580x140MM | |
| Net Weight | 3.0 Kg | |
| Packing Way： | Modular Packaging | |
| Box Size： | 630x290x110MM | |
| Gross Weight： | 4.16Kg | |
LaserGRBL VS LightBurn Software
LaserGRBL (Free) (Windows): LaserGRBL Download Page
LaserGRBL is one of the best Windows software for image Laser Engraving. It is able to load any image, pictures and logo and send to your laser engrave with few click. It is specifically developed for use with hobbist laser cutter and engraver and could be a good free and easy alternative to picengrave, benbox, T2laser, lightburn for who don’t need more then a simple and effective tool. LaserGRBL is compatible with any engraver based on Grbl v0.9 and Grbl v1.1 standards.
LightBurn (Paid - 30 Day Free Trial) (Windows/Mac OS/Linux): LightBurn Download Page , Purchase LightBurn software key.
LightBurn is layout, editing, and control software for your laser cutter. With LightBurn you can:
- Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, BMP)
- Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing
- Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more
- Send the result directly to your laser cutter
LightBurn is a native application written for Windows, Mac OS, and Linux.
