Longer Laser B1 30W (33-36W Output Power)


Longer


● 33-36W ultra-high power output & 6-core laser head;
● 17.72 x 17.32" / 450 x 440 mm engraving area;
● Engraving speed up to 36,000mm/min, 32 bits chipset;
● Equipped with smart Air-Assist system automatically controlled by lightburn.

Save -29% $999.99 $1,399.99

PLUG TYPE & SHIP FROM
shiping   US Warehouse: In stock in the US (arrived within 2 to 5 days)
return    30-Day Returns: Protect your shopping experience
safe   12-Month Warranty: Perfect after-sales service
Notify Me
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

longer laser

Powerful Longer Laser B1 30W 33-36W Output Power

Auxiliary Booster Accessories
360° Cylindrical Rotating Engraving
Longer Laser B1 30W

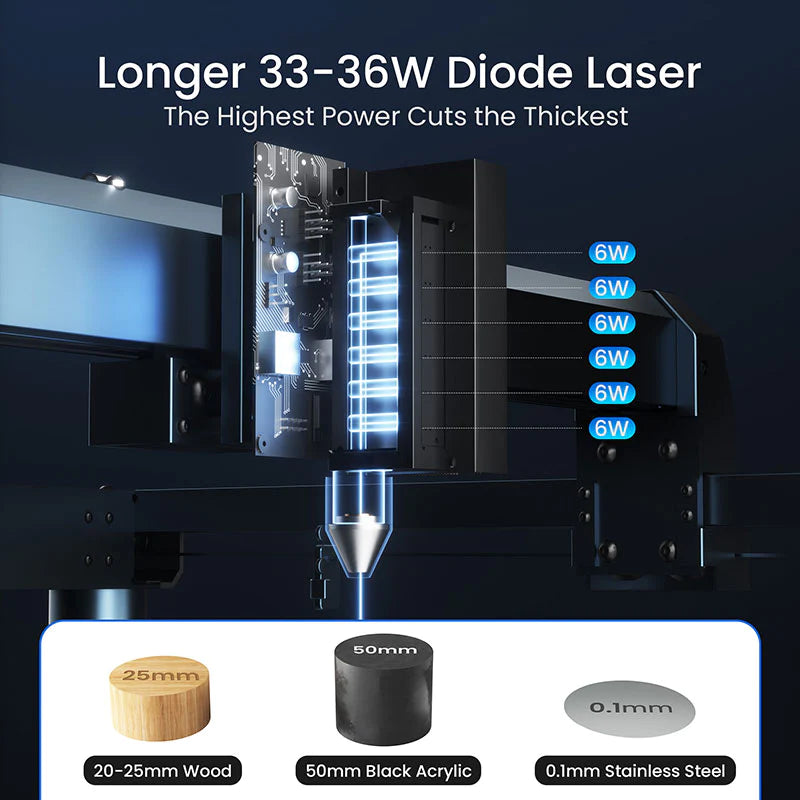

Highly Concentrated Laser and Improved Cutting Power
The highly concentrated laser beam increases cutting capabilities by 20%, and can cut through 25mm basswood and 50mm acrylic.
Cheap Longer Laser B1
Bigger Frame
The Laser B1 boasts a working area of 450 x 440 mm, an increase of 23.75% compared to competitors. This is ideal for A3 panels.
Laser B1 30W
36,000mm/min High Speed
Laser B1 is equipped with a new 32-bit motherboard, which allows engraving speed up to 36,000mm/min, four times faster than ordinary laser engraving machines. In addition, TMC2209 silent drivers is used to effectively reduce the noise of operation, providing a faster and more enjoyable experience.
longer laser b1 30w laser engraver
Smart Air-Assist System
The Air-assist pump can be automatically turned on and off, and is directly controlled by the lightburn, improving the precision and quality when cutting.
Longer b1 30w laser
Multi-Color Engraving
A high-energy laser beam instantly oxidizes metal, bringing vibrant colors to fulfill your creative needs.
Cheap Longer 30W laser engraving machine
Safety Measures
The B1 boasts eight major safety features including Move/Flame/Offline/Motionless/Security Lock/Eye Protection/Emergency Stop/Zero Reset.
Longer Laser 30W for sale
Wide Variety of Uses
The 33W laser can cut or engrave over 1000 different materials, such as wood, steel, leather, silver, acrylic, cloth, and more.
33W laser
Sturdy Metal Frame
Sturdy Metal Frame
The B1 is made with a sturdy aluminum frame which stays stable even under high-speed working mode.
Focus Positioning Bar
Focus Positioning Bar
The laser integrates an easy-to-use pull-down focus bar
XY-axis Limit Switches
XY-axis Limit Switches
Limit switches can accurately locate the position of the laser module, allowing for a safety feature where the B1 will trigger an alarm if it detects the laser is moving in the wrong direction.
Laser Lens Protection
Laser Lens Protection
The laser module is equipped with a replaceable lens and dust-proof hood which prevents smoke from polluting the lens.
Multiple Data Transfer Options
Multiple Data Transfer Options
Supports Wi-Fi, USB, APP and TF cards. The Ray5 is not limited to a physical computer connection.
Software Compatibility
Software Compatibility
Compatible with LaserGRBL, LightBurn and supports Windows 7+, macOS, and Linux. Supported file formats: JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc.

Technical Specifications

Model number

Laser B1 30W

Ray5 10W

Ray5 20W

Laser B1 20W

Ray5 5W

Laser Technology

Diode Laser Technology

Dioser Technology

Dioser Technology

Diode Laser Technology

Dioser Technology

Working Area

450x440mm (17.72x17.32inch)

400x400mm (15.75x15.75inch)

375x375 mm (14.76x14.76 inch)

450x440mm (17.72x17.32inch)

400x400mm (15.75x15.75inch)

Laser Wavelength

450 - 460 nm

450nm

450 - 460 nm

450 - 460 nm

450nm

Focal Length

Fixed Focus-50mm

Fixed Focus-50mm

Fixed Focus-40mm

Fixed Focus-50mm

Fixed Focus-30mm

Laser Spot Size

0.08x0.15mm

0.06x0.06mm

0.08x0.10mm

0.08x0.15mm

0.08x0.08mm

Optical Output Power

33-36W

10W

18 - 21 W

20-22W

5W

Power Max Consumption

180W

60W

120W

120W

40W

Engraver Output

DC 24V 7.5A

DC 12V 5A

DC 24V 5A

DC 24V 5A

DC 12V 5A

Engraver Lnput

AC 110-240V, 50/60Hz

AC 110-240V

AC 110-240V

AC 110 - 240V 50/60Hz

AC 110-240V

Z Axis-Height Range

Up to 50mm

Up to 47mm

Up to 47mm

Up to 50mm

Up to 47mm

Fastest Working Speed

Speed 36000mm/min

Speed 10000mm/min

Speed 10000mm/min

Speed 36000mm/min

Speed 10000mm/min

Software

LaserGRBL on XP/7/8/10 (Free); LightBurn on Windows, Mac OS, and Linux

LaserGRBL and LightBum

LaserGRBL and LightBum

LaserGRBL on XP/7/8/10 (Free); LightBurn on Windows, Mac OS, and Linux

LaserGRBL and LightBum

Input Image Format

JPG, PNG, BMP, GIF, SVG, AI, etc.

JPG, PNG, BMP, GIF, SVG, AI, etc.

JPG, PNG, BMP, GIF, SVG, AI, etc.

JPG, PNG, BMP, GIF, SVG, AI, etc.

JPG, PNG, BMP, GIF, SVG, AI, etc.

Connection type

USB / TF Card / Wifi / APP

USB/TF Card/Wifi

USB/TF Card/Wifi

USB / TF Card / Wifi / APP

USB/TF Card/Wifi

limit switches

Yes

Optional

Yes

Yes

Optional

Air assist interface

Yes

Optional

Yes

Yes

Optional

Laser Engraver Size

727x668x244 mm(28.6x26.3x 9.7 in)

586 x 583 x 176.5mm(23.07x22.95x6.95inch)

610 x 67 x 200 mm(24.02 x 26.38 x 7.87 inch)

727x668x244 mm(28.6x26.3x 9.7 in)

586 x 583 x 176.5mm(23.07x22.95x6.95inch)

Packaging Size

742x557x124 mm(29.2x21.9x4.9 in)

621x299 x 127mm(24.45 x11.77 x 5 inch)

621 x 347 x 127mm(24.45 x 13.66 x 5 inch)

742x557x124 mm(29.2x21.9x4.9 in)

621 x 299 x 127mm(24.45 x 11.77 x 5 inch)

Gross weight

9.7Kg

4.9Kg

5.55Kg

9.6Kg

4.7Kg


Please download the user manual settings / installation manual: Laser B1 20W 30W Engraver Material Profiles , Laser B1 20W 30W User Manual

FAQ:

Q: What materials are supported by the laser engraver?
A: Support engraving materials:All wood, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating, and lacquered metal.Support cutting materials: Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.

Q: What software does the engraving machine support?
A: Laser B1 is compatible with various mature engraving software such as LaserGRBL and LightBurn. It supports Windows 7+, macOS, Linux; the engraving file format supports JPG, PNG, BMP, G-code, GIF, SVG, NC, GC, etc.

Q: Are Laser Engravers Safe to Use?
A: Set 8 safety protection functions of moving/flame/offline/stationary/safety lock/eye protection/emergency stop button/return to zero. The laser is automatically turned off when a drop, flame, data disconnection, or laser head freeze is detected for more than 15 seconds. In addition, the laser head is automatically zeroed to avoid burning out when igniting. Panoramic filter glass can effectively filter 99.8% of laser light, making it safer to use.

Q: What are the advantages of the Laser B1 air pump?
A: Lase B1 can smartly control the air pump switch through the main board, that is, set the Air on or off in lightburn, then the air pump switch can be automatically controlled without manually switching the air pump.

Q: What is the top speed of Laser B1 engraver?
A: The maximum speed of Laser B1 30W is 30000mm/min, and which is 30000mm/min for Laser B1 20W.

Q: How to focus the laser head?
A: The focusing block is fixed on the laser head to avoid accidental loss, it just needs to pull out the focusing block, loosen the M3*20 handle screw, move the laser module down, tighten the M3*12 handle screw when the bottom of the focusing block touches the plywood, and close the focusing block.

Q: How thick the material can be cut by the Laser B1 30W engraver?
A: Laser B1 30 can cut 20mm paulownia wood, 10mm black acrylic, 0.1mm stainless steel plate by single pass, and can cut 25mm basswood, 50mm acrylic by multiple passes.

Q: What is the focal length of Laser B1?
A: The focal length of Laser B1 30W and 20W is 50mm. Compared with the 40mm focal length of other products, the longer focal length is more suitable for cutting.

LaserGRBL VS LightBurn Software

LaserGRBL (Free) (Windows): LaserGRBL Download Page

LaserGRBL is one of the best Windows software for image Laser Engraving. It is able to load any image, pictures and logo and send to your laser engrave with few click. It is specifically developed for use with hobbist laser cutter and engraver and could be a good free and easy alternative to picengrave, benbox, T2laser, lightburn for who don’t need more then a simple and effective tool. LaserGRBL is compatible with any engraver based on Grbl v0.9 and Grbl v1.1 standards.

LightBurn (Paid - 30 Day Free Trial) (Windows/Mac OS/Linux): LightBurn Download Page  , Purchase LightBurn software key.

LightBurn is layout, editing, and control software for your laser cutter. With LightBurn you can:

- Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, BMP)

- Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing

- Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more

- Send the result directly to your laser cutter

LightBurn is a native application written for Windows, Mac OS, and Linux.
