[EU/US Direct] Atomstack P7 M40 40W Destop Laser Engraver for Wood and Metal 12mm Wood and 10mm Acrylic Cutting in One-PASS 200*200mm Engraving Area
● 85% Pre-assembled Structure Design
● Cut 6mm Thick Wood And Black Acrylic
● Can Easily Cut 10mm Thick Wood & 6-8mm Black Acrylic
● Can Directly Engrave Mirror Stainless Steel & Ceramics
● Portable Laser Engraving Machine And 200*200 Mm Engraving Area
30-Day Returns: Protect your shopping experience
12-Month Warranty: Perfect after-sales service
Atomstack P7 M40 Laser Engraving Machine Features:
- Eye-protection flame-retardant filter panoramic glass: The flame-retardant filter panoramic glass can filter 97% of the ultraviolet light, which plays a very good role in protecting your eyes. You and the people around you do not need to wear goggles, you can also clearly Watch laser engraving. Reduce the cost of your goggles and the inconvenience of wearing goggles. The glass is flame retardant and safer to use.

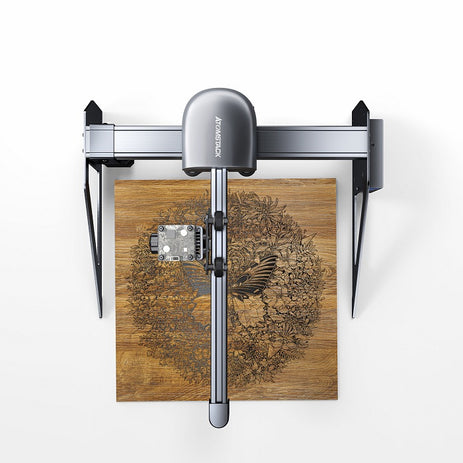

- Robust and easy-to-install structure design: The all-aluminum alloy anodized structure design makes the laser engraver more durable and improves the accuracy of engraving. The portable all-metal structure, 85% pre-assembly, can be installed in 5 minutes.
- Upgraded version of high-performance fixed-focus laser: Engraving can be done without adjusting the focal length; the newly upgraded compressed spot increases the energy concentration by 200%, and the spot size is only 0.02mm², which can take into account both precision engraving and high-energy cutting. At the same time, the laser power of fixed-focus laser is more stable than that of zoom laser.

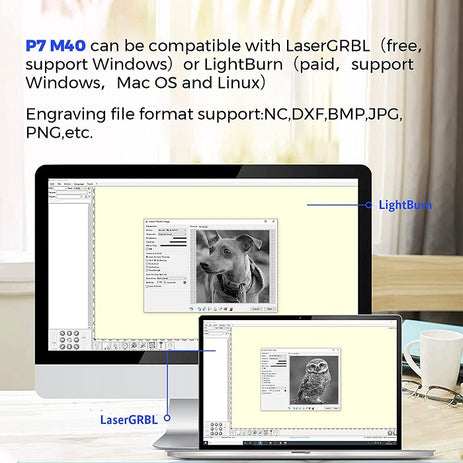

- Wide compatibility:The Atomstack P7 M40 laser engraving machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
- Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 200*200mm large area engraving interval can meet your various engraving needs.

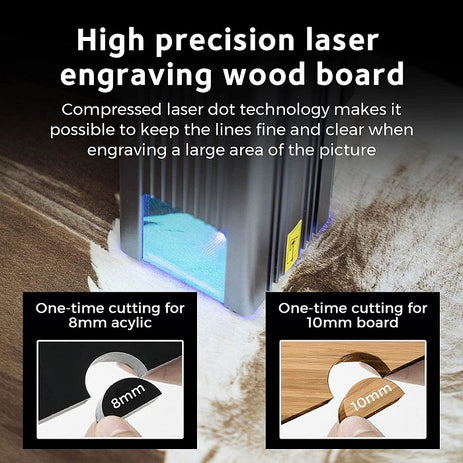

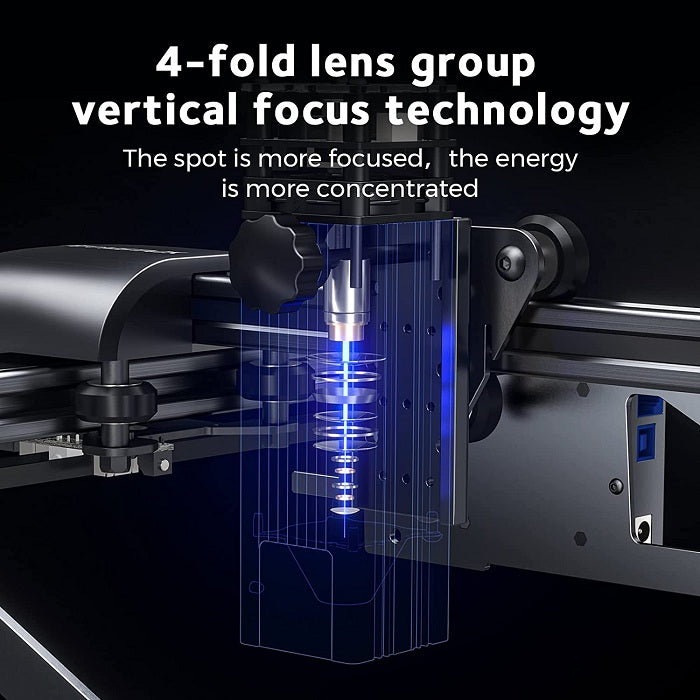

- Newly upgraded ultra-fine compression laser: the laser adopts 4-fold lens group collimation and focus technology, the optical power is 4.5~5.5W, the laser focus area is reduced to 0.02mm², the high-density laser can easily cut 10mm thick wood boards and 6-8mm black acrylic ; Can directly engrave mirror stainless steel metal and ceramics.
- Integral screw rod: The laser engraver uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

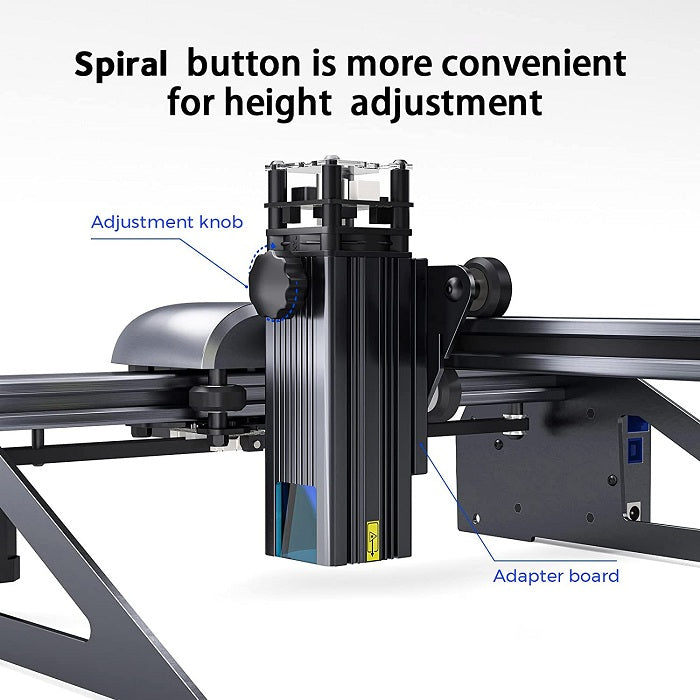

- New laser with knob: It is more convenient and quick to adjust the height of the laser.
- Colorful gift box packaging: more beautiful and more convenient to give gifts.
P7 M40 Laser Cutter Description:
- Item model number: ATOMSTACK P7 M40
- Print Size: Recommend Print Size 200*200mm
- Engraving materials: wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel;
- Cutting material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather;
- Laser electric power: 40W
- Laser output power: 4.5-5.5W
- Wave Length: 445 ± 5nm
- Engraving accuracy: 0.01mm
- Focusing method: fixed focus laser, no need to focus
- Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
- Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
- Input Format: NC, BMP, JPG, PNG, DXF, etc.
- Data transmission method: USB connection.
- Input Voltage: AC100-240V, 50/60Hz
- Output Voltage: DC12V, 5A
- Certification: CE FCC RoHS FDA PSE
P7 M40 PACKAGE:
|Assembly block *4
||Lower support foot*1
||Y-axis belt assembly*1
||Upper support foot*1
||Fixed focus film*1
|Foot pad foam*4
||X axis assembly*1
||Cutting pad *1
||Y axis assembly*1
- When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
- Please do not touch the laser emitter with your hand, or it may burn your hand.
- Please avoid strong impact on the machine.
- Children under 14 are not allowed to use this product and children over 14 need adult supervision.
- The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
LaserGRBL VS LightBurn Software
LaserGRBL (Free) (Windows): LaserGRBL Download Page
LaserGRBL is one of the best Windows software for image Laser Engraving. It is able to load any image, pictures and logo and send to your laser engrave with few click. It is specifically developed for use with hobbist laser cutter and engraver and could be a good free and easy alternative to picengrave, benbox, T2laser, lightburn for who don’t need more then a simple and effective tool. LaserGRBL is compatible with any engraver based on Grbl v0.9 and Grbl v1.1 standards.
LightBurn is layout, editing, and control software for your laser cutter. With LightBurn you can:
- Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, BMP)
- Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing
- Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more
- Send the result directly to your laser cutter
LightBurn is a native application written for Windows, Mac OS, and Linux.
