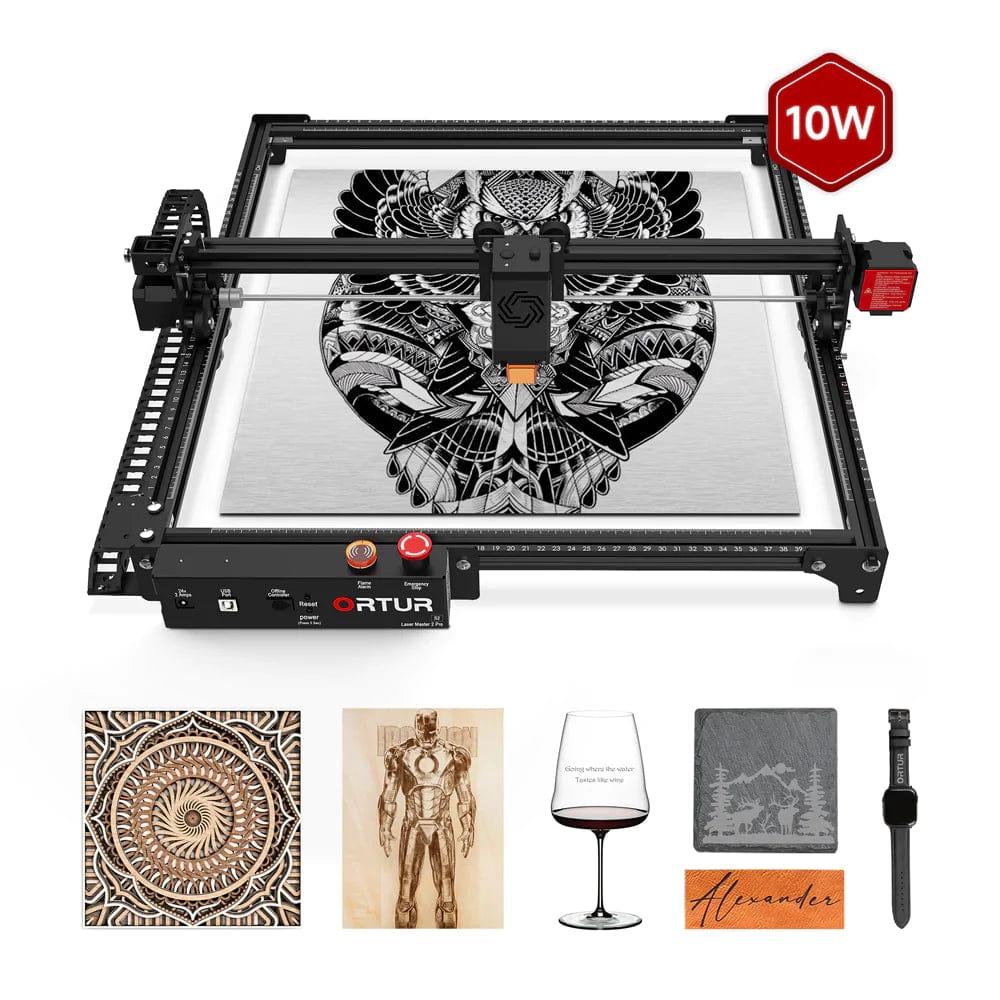

Ortur Laser Engraver Laser Master 2 Pro S2 LU2-10A With 10W Output Power | LU2-4-LF With Air Assist Nozzle | LU2-4-SF For Engraving ,5.5W-10W Output Power 400 * 400mm Engraving Area For Wood Metal Acrylic
Ortur
★Increases the maximum speed to 15000mm/min.
★Support Ortur offline control screen, with more powerful functions.
★It is equipped with the latest OLM-PRO-V10 motherboard, Ultimate Engraving Experience with Precision.
★Update Ortur Laser 1.8 firmware, , the engraving accuracy is higher, and the speed is faster.
★4 Safety protection: Active position protection, sloping position protection, flame detector and buzzer alarm and emergency stop switch for an emergency.
Ortur Laser Master 2 Pro S2 Laser Engraving Machine 10,000mm/min 24V/2A
Engraving and cutting of various materials can be realizedAvailable Materials of Engraving: Wood, Paperboard, Black Acrylic, Leather, Some Plastic(opaque), Power Coated Metal, etc.
Available Materials of Cutting: Paper Board, KT Board, Felt Cloth, Leather, Thin Plywood, Thin Black Acrylic, etc.
LU2-4-SF: Short Focus Laser Module : It has a smaller Luminous Cavity, so it has a smaller Focal Spot and good at engraving high-precision pattern. LU2-4-LF: Long Focus Laser Module :It's high power and has a Compressed Laser Spot, so it's good at cutting and better at engraving harder materials.
LU2-2: Laser Module:It's high power and has a longer Depth of Field, so it's good at engraving and better at cutting.
[Ortur new upgrade pro model] Ortur LU2-2 is newly upgraded, adding new functions such as flame detection, emergency stop, etc., with stronger system reliability, smooth engraving, faster engraving speed, higher accuracy, and more refined engraving products. The new upgrade brings users a better experience!
[Overall optimization] Laser Master 2 Pro S2 LU2-2 has a longer service life, because the mechanical structure has been optimized and designed to have a faster speed and can work stably for a long time. At the same time, Ortur Laser Master 2 Pro can provide users with more security because it has more security features.
[Accessories system update]
- Because it is equipped with the latest OLM-PRO-V10 motherboard, the engraving is smoother and more delicate, the engraving accuracy is higher, and the speed is faster.
- The circuit system with 24V voltage is upgraded, the current is lower, and the system is safer.
- Update Ortur Laser 1.8 firmware, which is the most advanced laser engraver firmware at present, with more powerful functions.
- Support Ortur offline control screen.
[Product advantage]
Ortur Laser 1.8 firmware is based on OLF1.4 firmware upgrade, optimizes the motion algorithm, and increases the maximum motion speed from 4000mm/min to 10000mm/mm. The focus of the LU2-2 laser module is smaller because of it. It is the second-generation FAC laser module, the focal point is only 0.07*0.06mm, and the focal area is about a quarter of the first-generation 0.23*0.23mm. So he can cut through 3mm plywood and 6mm pine board at a time.
[Safety protection]
- When the laser engraver is displaced or tilted, it will automatically stop the laser to prevent damage to the target from the laser;
- When the engraving machine or computer crashes, the laser will stop working immediately to prevent continuous fire.
- The laser engraving machine is turned on, but there is no movement for a long time, it will be protected, and the laser will be turned off automatically.
- Flame Detector + Buzzer Alarm
- Emergency stop switch for emergency
Available Laser Modules |
|||
Product Name |
LU2-4-SF |
LU2-4-LF |
LU2-2 |
Optical Power |
4500- 5500 mW |
4500- 5500 mW |
1000-1600 mW |
Focal Spot |
About 0.12x0.15 MM |
About 0.1 7x0.25 MM |
About 0.07×0.06 MM |
Light Path |
Focused Beam |
Focused Beam |
Focused Beam |
Focal Length |
30 MM |
50 MM |
50 MM |
Electric Current |
3.4-3.6 A |
3.4-3.6 A |
1.1-1.35 A |
Wavelength |
445+10 NM |
445+10 NM |
445±10 NM |
Voltage |
4.2-5.0 V |
4.2-5.0 V |
5-6 V |
Product Size |
40x41x122 MM |
40x41.5x1 10 MM |
40×41.5×96 MM |
Specifications
Motherboard 9th Ortur Laser Motherboard, with32BitsMCU
Firmware OLF-V180 Series Firmware
Safety Precautions:
- Active Position Protection,
- Exposure Duration Detection andLimitation,
- Laser Beam Safety Guard.
- Flame Detector
- Emergency Stop Button
- Power Control System
Add-ons: 1. Ortur Offline Controller 2. Adjustable Z-axis Lifting Device
Frame Materials: Aluminum Profile + Powder CoatedSteel
Motors: NEMA 17 Stepper Motors
Mechanical Precision: Y:12.5um,X:12.5um
Pixel Accuracy: Adjustable (Default: 300 pixels per inch, about 0.81um Pixel Accuracy)
Engraving Area: 400MM×400MM
Available Laser Modules:
- LU2-2 24V Laser Module (Electric Power: 7W, Luminous Power: 1,000- 1,600mw)
- LU2-4-SF 24V Short Focus Laser Module(Electric Power: 20W, Luminous Power: 4,500- 5,500mw)
- LU2-4-LF 24V Long Focus Laser Module(Electric Power: 20W, Luminous Power: 4,500- 5,500mw)
- Wave Length 445±5nm
- Focus Fixed Focus
- Default Focal Length 50mm (from the heat sink to the object)
- Control Mode PWM
- Power Rate S0-S1,000
- Engraving Speed 0-10,000MM/Min
- Baud Rate 115200 - 921600 (Default: 115200)
- Computer OS Win XP, Win 7, Win 8, Win 10 (LaserGRBL) Mac and Linux (LightBurn)
- Control Softwares LaserGRBL (free), LightBurn (PaidSoftware)
- Input Format JPG, JPEG, PNG, BMP, SVG, etc.
- Available Materials of Engraving Wood Board, Paperboard, Black Acrylic, Leather, Food, Stainless Steel, Power CoatedMetal, etc.
- Available Materials of Cutting Wood Board, Paperboard, Black Acrylic, Leather, Felt Cloth, Dark Color Plastic Sheet (Melt), etc.
- Input Voltage 110V-220V (Compatible)
- Power Adapter 24V / 2A
- Operating Temp. -20℃-50℃
Packaging Information:
- Product Size: 600 x 570 x 189MM/ 23.62" x 22.44" x7.44"
- Net Weight: 3.5KGS / 7.72LBS
- Packing Way: X-axis Assembly+Y-axis Assembly+Laser Module+Accessories, inserted in PEFoam, packed in a Cardboard Box.
- Box Size: 660*250*110MM/ 26" x 10" x 4.33"
- Gross Weight: 4.60KGS / 10.14LBS
