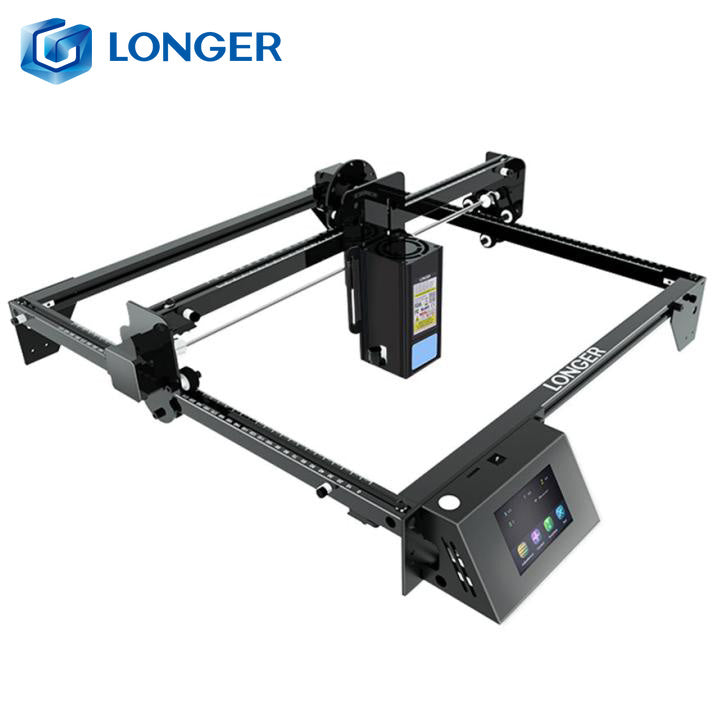

Longer RAY5 20W Laser Engraver for Metal Wood 130W Laser Engraving and Cutting Machine Multi-Color Engraving On Metal XY-axis Limit Switch Multiple Machines Control


● Quad-Core Diode Laser, 20W Optical Output, Powerful Cutting Capability
● Ultrafine 0.08*0.1mm² focus point, High Accuracy Engraving & Cutting
● Multi-color engraving on metal surface, breathe more life into your creations
● Come with Air Assist Nozzles(Pump not included) and laser protection lens
● XY-axis limit switches & 5 Safety Protections, safer to use
● 3.5'' built-in touch screen, support WiFi, APP, USB cable, and TF cards
● PS: Non-US and non-EU regions may incur additional customs duties when shipping, such as the UK and Switzerland
Save -51% $540.00 $1,099.99

shiping   US Warehouse: In stock in the US (arrived within 2 to 5 days)
return    30-Day Returns: Protect your shopping experience
safe   12-Month Warranty: Perfect after-sales service
Notify Me
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Longer Ray5 20W Feature:

  • 20W Powerful Cutting:LONGER Ray5 20W has a 20W powerful laser module, which comes with the most advanced laser enhancement technology and enhance the cutting capacity of this machine. It can cut 0.59"/15mm pine wood and 0.31"/8mm acrylic in one pass, even cutting 0.002"/0.05mm stainless steel.
  • 0.08*0.1mm² High Accuracy Laser Spot:With the latest compressed laser technology, the laser spot is as tiny as 0.08*0.1mm², thus engraving thinner lines, clearer texture, more delicate and beautiful artworks. And air-assisted interface is reserved, which can be easily matched with various air pumps, more clean surfaces.
  • More Efficiently:Longer Ray5 20W is euipped with a 20W powerful laser output power and 120W electric power, deeper cutting at one time, smoother engraving with high power at high speed, and wider cutting and engraving materials, saving time. Suitable for professional office, workshops or factories.

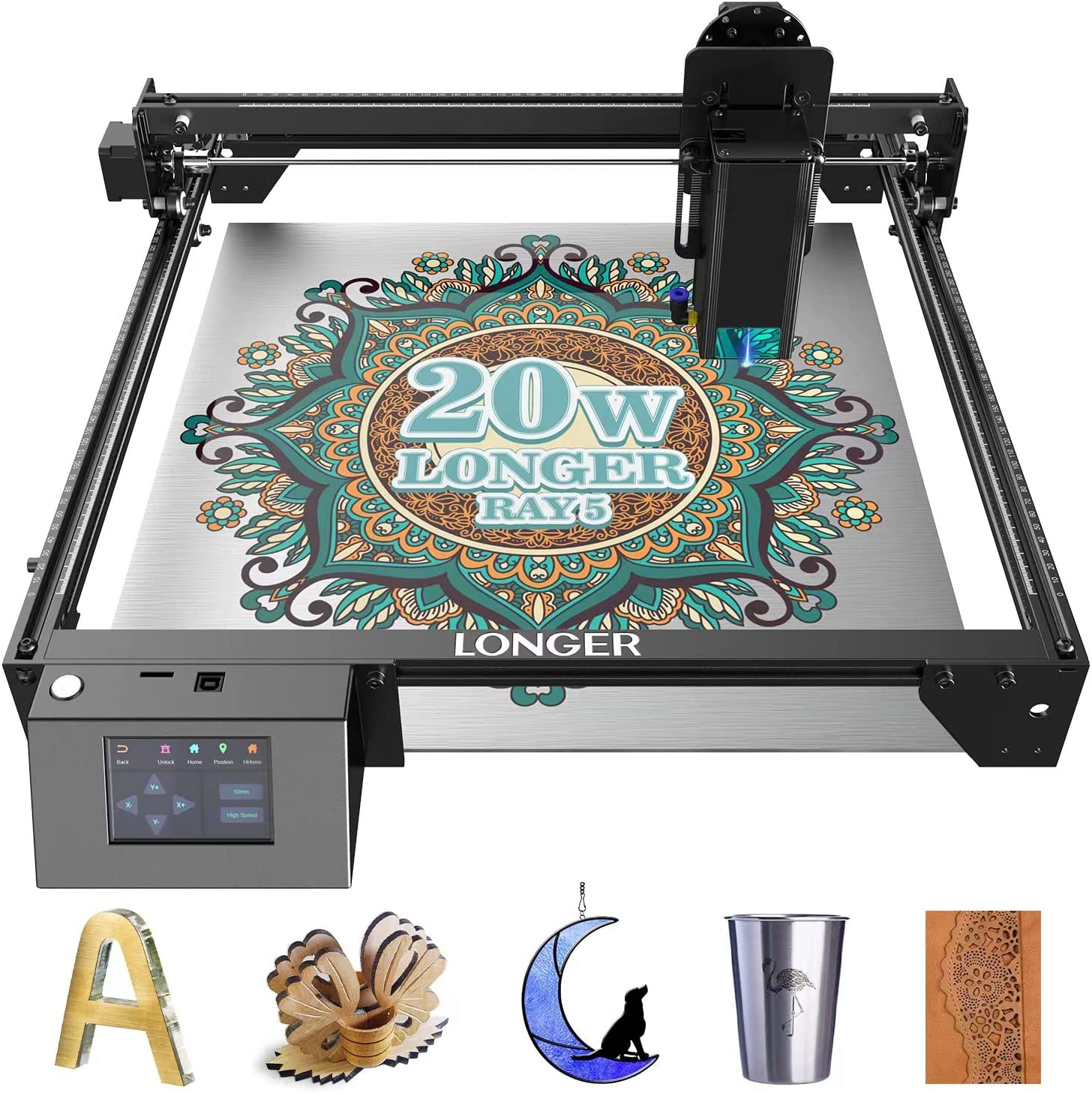

  • Multi-Color Engraving:The 20W high-energy laser beam instantly oxidizes the metal surface, bringing rich colors to fulfill your colorful creative needs.

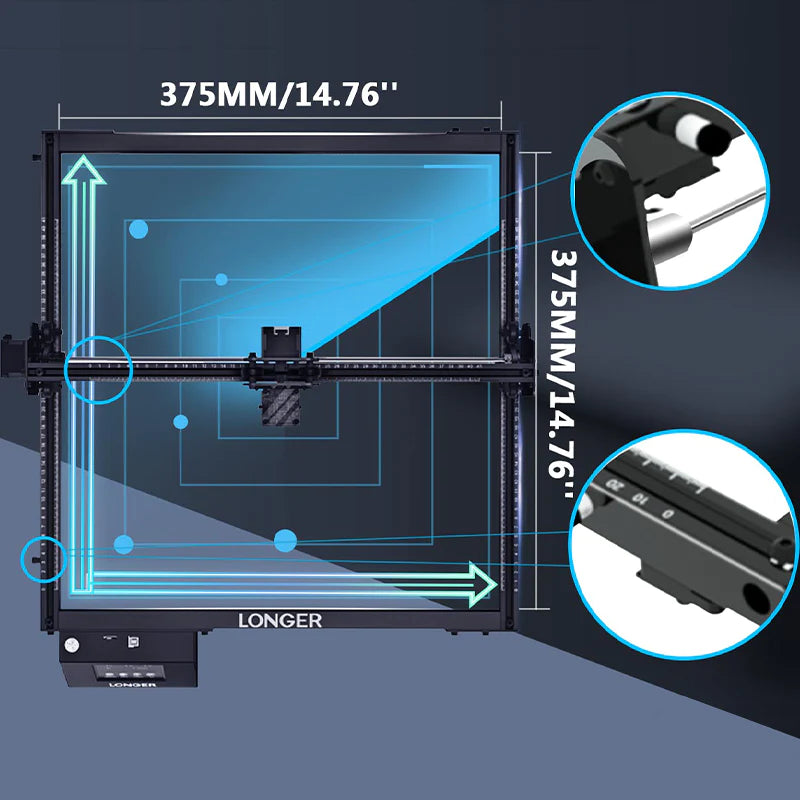

  • XY-axis Limit Switch:Added X-axis and Y-axis direction limit switches, which can accurately locate the position of the laser module. At the same time, if the laser module moves in the negative direction of the X-axis or Y-axis, Ray5 20W will trigger an alarm and restrict the movement.
  • 5 Safety Protections:Laser emergency stop will be triggered when tilted, flame, data connection interruption and laser head freezing over 15 seconds are detected. In addition, the panoramic filter glassv can effectively filter the laser and protect the eyes, safer to use.
  • New Laser Lens Protection:The 20W laser module is euipped with a replaceable protective lens and dust-proof hood to effectively prevent smoke from polluting the laser lens, and greatly improve the service life of the laser module.
  • Multiple Transfer Ways:Data can be transferred via different methods of Wi-Fi, USB cable, APP and TF cards , which supports offline operations. You can use Ray5 anywhere, without the limits of physical connection to a computer.
  • Multiple Machines Control:One computer can control multiple Ray5 laser engravers work parallelly, Whether it is Ray5 5W, Ray5 10W or Ray5 20W, and improve the production efficiency.
  • Wide Compatibility:Ray5 20W laser engraver is compatible with various mature carving software, such as LaserGRBL, LightBurn, supports Windows 7+, macOS, Linux; carving file formats Support JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc.
  • 3.5" Touch Screen:3.5-inch smart built-in color screen, it does not need to connect the laser engraving equipment to the computer, supports offline operations.
  • Adjust Focus Easily:The focus plate is easy to focuse. And there is a 1mm pitch scale on the laser module, which can precisely adjust the focal length according to the thickness of the material for engraving and cutting.
  • 32-Bit Chipset:Ray5 20W is built with an ESP32 chipset, which is running at 240MHz. Faster and more powerful than comparably equipped machines with 8-bit chipset.

Longer Ray5 Comparison:

Model Number Ray5 20W Ray5 10W Ray5 5W
Laser Technology Dioser Technology Dioser Technology Dioser Technology
Working Area 375x375 mm 400x400mm 400x400mm
Laser Wavelength 450 - 460 nm 450nm 450nm
Focal Length Fixed Focus-40mm Fixed Focus-50mm Fixed Focus-30mm
Laser Spot Size 0.08x0.10mm 0.06x0.06mm 0.08x0.08mm
Optical Output Power 18 - 21 W 10W 5W
Power Max Consumption 120W 60W 40W
Engraver Output DC24V5A DC12V5A DC12V5A
Engraver Lnput AC110-240V AC110-240V AC110-240V
Z Axis-Height Range  Up to 47mm Up to 47mm Up to 47mm
Fastest Working Speed Speed 10000mm/min Speed 10000mm/min Speed 10000mm/min

LaserGRBL & LightBum

LaserGRBL & LightBum

LaserGRBL & LightBum

Input Image Format JPG, PNG, BMP, GIF, SVG, AI, etc. JPG, PNG, BMP, GIF, SVG, AI, etc. JPG, PNG, BMP, GIF, SVG, AI, etc.
Connection type USB/TF Card/Wifi USB/TF Card/Wifi USB/TF Card/Wifi
limit switches Yes Optional Optional
Air assist interface Yes Optional Optional
Laser Engraver Size 610 x 67 x 200 mm
586 x 583 x 176.5mm
586 x 583 x 176.5mm
Packaging Size 621 x 347 x 127mm
621x299 x 127mm
621 x 299 x 127mm
LONGER RAY5 20W LONGER RAY5 20W laser engraver RAY5 20W LONGER laser engraver

LaserGRBL VS LightBurn Software

LaserGRBL (Free) (Windows): LaserGRBL Download Page

LaserGRBL is one of the best Windows software for image Laser Engraving. It is able to load any image, pictures and logo and send to your laser engrave with few click. It is specifically developed for use with hobbist laser cutter and engraver and could be a good free and easy alternative to picengrave, benbox, T2laser, lightburn for who don’t need more then a simple and effective tool. LaserGRBL is compatible with any engraver based on Grbl v0.9 and Grbl v1.1 standards.

LightBurn (Paid - 30 Day Free Trial) (Windows/Mac OS/Linux): LightBurn Download Page  , Purchase LightBurn software key.

LightBurn is layout, editing, and control software for your laser cutter. With LightBurn you can:

- Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, BMP)

- Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing

- Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more

- Send the result directly to your laser cutter

LightBurn is a native application written for Windows, Mac OS, and Linux.
