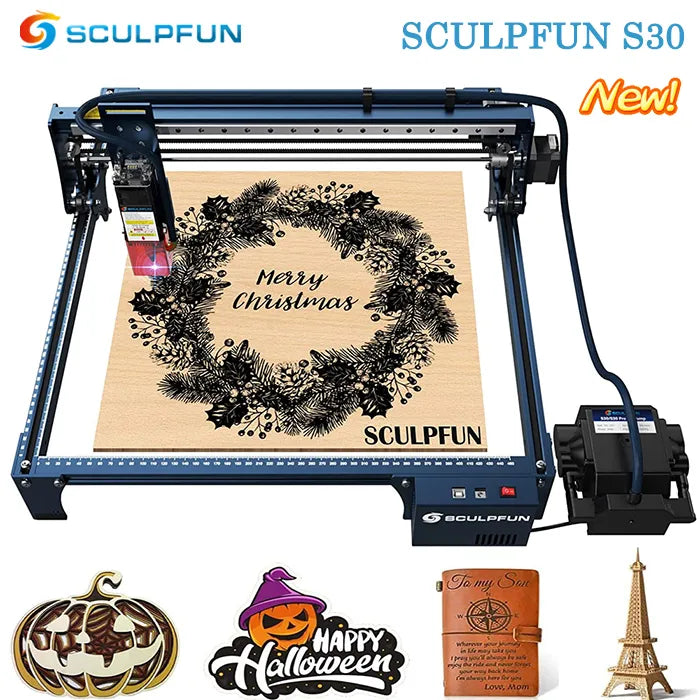

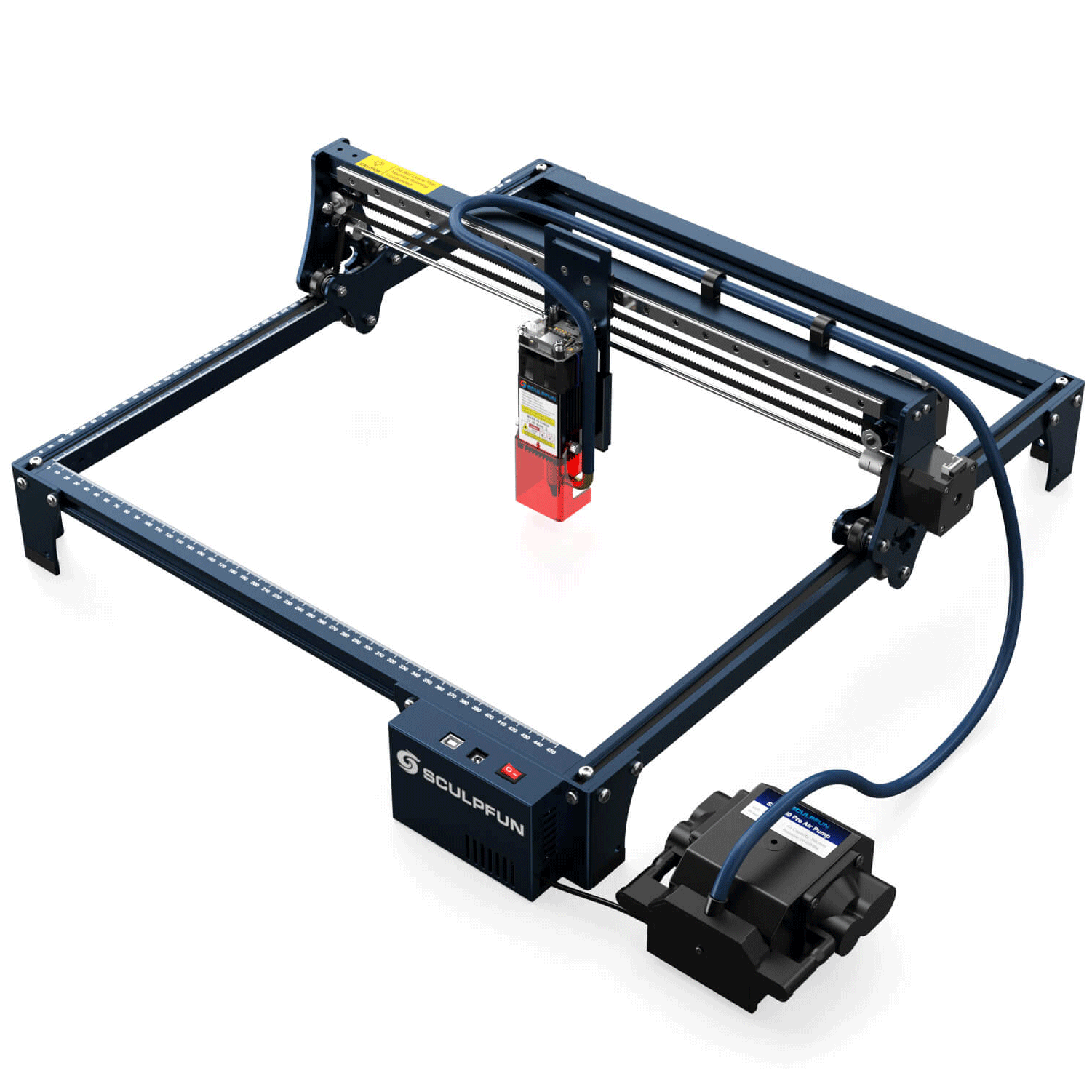

SCULPFUN S30 5W Automatic Air-assist Laser Engraver 410x400mm Engraving Area Expandable Laser Cutter


Free Fast Shipping in US & EU. Delivered within 3-5 business days !

- Equipped With Automatically Controlled Air Assist System

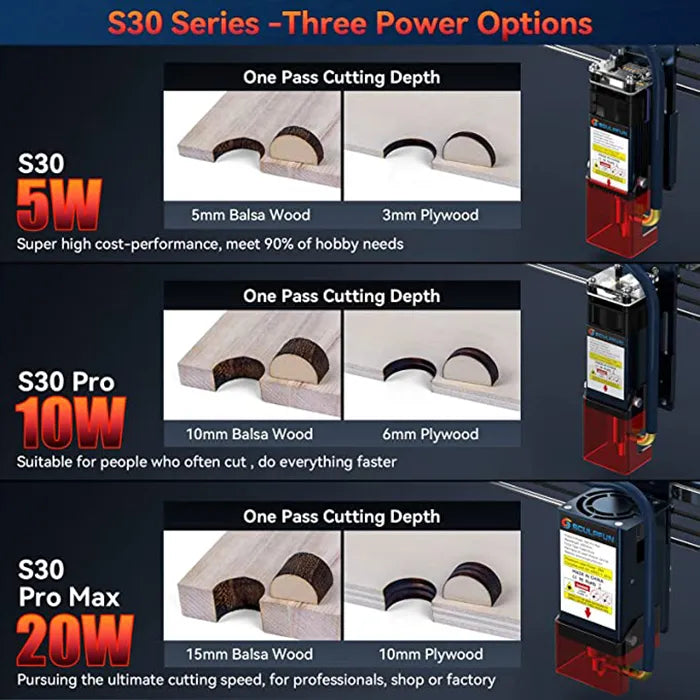

- Can Cut 5mm Balsa Wood Or 3mm Plywood In One Pass
- High Cost-Effective And Can Meet 90% Of Hobby Needs
- Presented a4 Size Steel Pad Can Well Protect The Table From Laser Damage
- Built-In High-Pressure Air Assist Nozzle Greatly Improves Cutting Efficiency


Notify Me

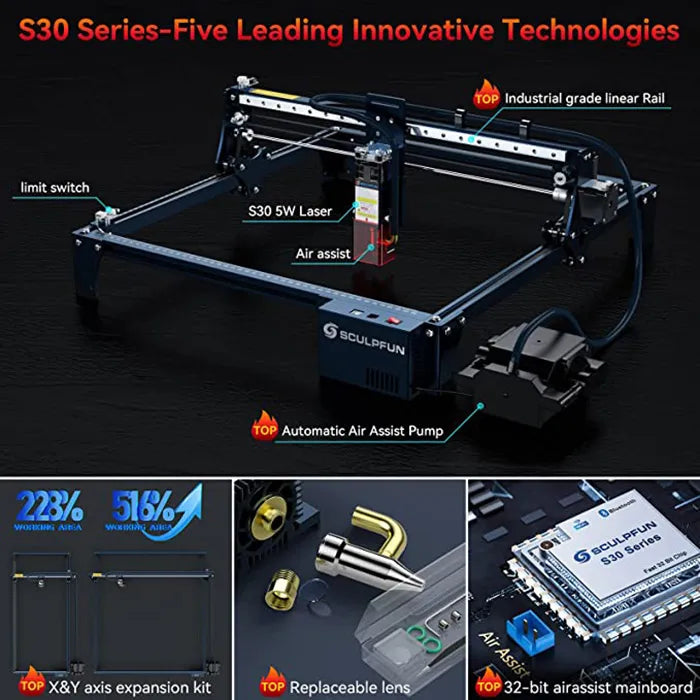

SCULPFUN S30 Feature:

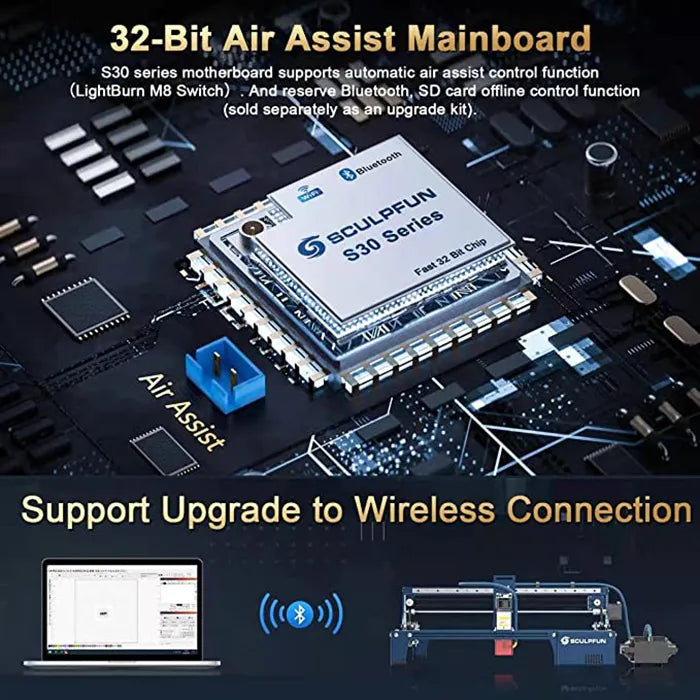

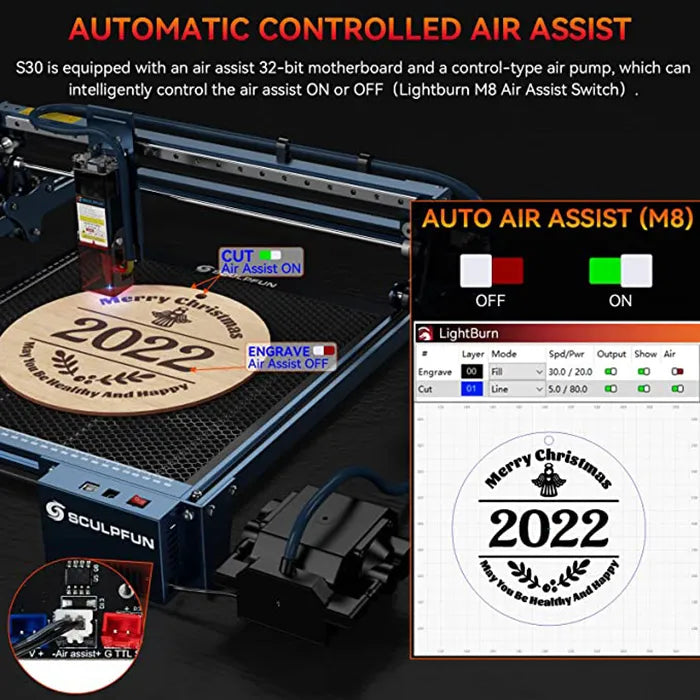

  • Upgraded gas-assisted laser engraving: Sculpfun S30 series is equipped with a gas-assisted 32-bit motherboard and a controlled air pump, and the gas-assisted switch during engraving can be intelligently controlled through the M8 button of the LightBurn software.
  • Excellent engraving performance: The S30 5W laser is cost-effective and can meet 90% of hobby needs; it can cut 5mm balsa wood and 3cm plywood at one time. And with the extremely strong high-precision linear slide X-axis to achieve industrial-grade engraving accuracy, there is no wave pattern in the engraving of small objects.
  • Built-in high-pressure gas-assisted nozzle: S30 series laser engraver is equipped with advanced high-pressure gas-assisted metal nozzle, which can generate high-pressure airflow under the action of the air pump, which greatly improves the cutting efficiency and makes the cutting surface very clean. The cutting speed is greater than 5 times faster than that without air assistance1 times.
  • Replaceable protective lens: The use of innovative replaceable lens greatly improves the service life of the laser, which is more than 10 times longer than other ordinary lasers.

SCULPFUN S30 Laser Engraver Specification:

  • Model: Sculpfun S30
  • Power input: 100-240V AC, 50/60HZ Output: 12V 5A
  • Engraving accuracy: 0.005mm
  • Engraving area size: 410*400mm
  • Machine power: about 60WDiode laser output power: 5W (note that this is light energy not electrical energy)

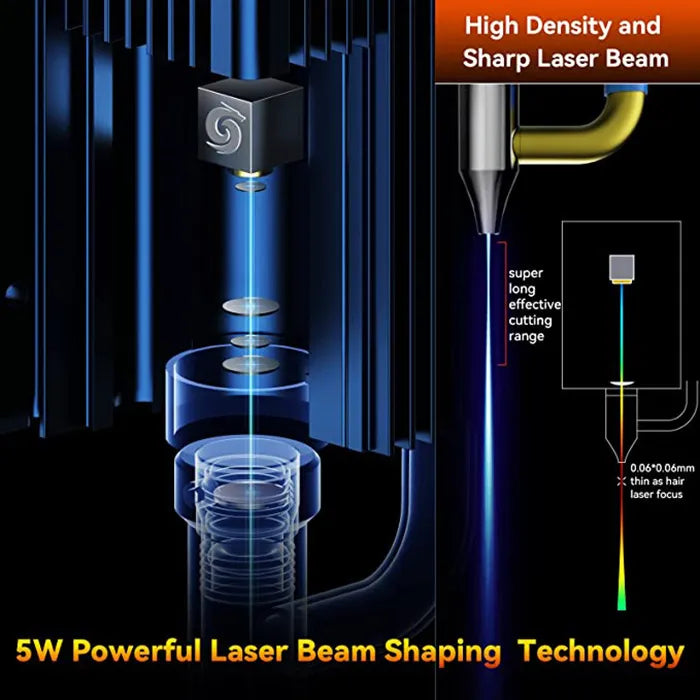

  • Laser focus: 0.06x0.06mm
  • Laser wavelength 455±5nm
  • Focusing method: fixed focus column + sliding device

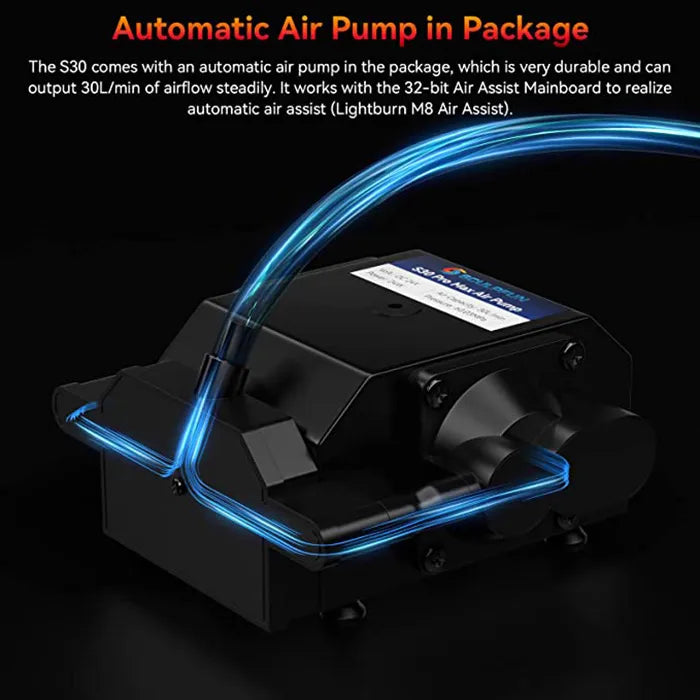

  • Laser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.Type: Air pump controlled by motherboard, voltage 12V, flow rate 30L/min
  • Inner diameter of trachea: 7.5mm
  • Carving materials: all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramics, dark stone
  • Cutting materials: all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, acrylic board, cardboard, non-woven fabric, bamboo, leather, some plastic boards, PCB boards
  • Operating software: LightBurn (M8 with air-assisted function), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats
  • Package size: 62.3x24x22.5cm/24.5x9.4x8.8in
  • Package weight: 6.7 kg/14.7 lbs
