ATOMSTACK A5 M50 40W Laser Engraving Machine For Wood 5-5.5W Output Power Eye Protection Fixed-focus Compressed Spot Power Engraving Area 400x410mm
Atomstack
translation missing: en.products.product.loader_label
Free Fast Shipping in US & EU. Ship out in 1-2 business days from US Warehouse or EU Warehouse.
- Upgraded High-Performance Fixed-Focus Laser
- Cut 6mm Thick Wood And Black Acrylic
- Can Engrave Smooth Stainless Steel Metal And Ceramics
- 410x400mm Engraving Areameet Various Engraving Needs
$283.99
Atomstack A5 M50 Laser Engraving Machine Features:
- New filter eye protection acrylic design: The filter acrylic protective cover plays a good role in protecting your eyes, filtering 97% of ultraviolet light, you and the people around you do not need to wear goggles, you can also watch the laser engraving. Reduce your goggle expense and the inconvenience of wearing goggles.
- Solid and easy installation structure design:The all-aluminum alloy anodized structure design makes the laser engraving machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.
- Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving; the new laser focal spot is 50% smaller than other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
- Wide compatibility:The ATOMSTACK A5 M50 can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
- Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

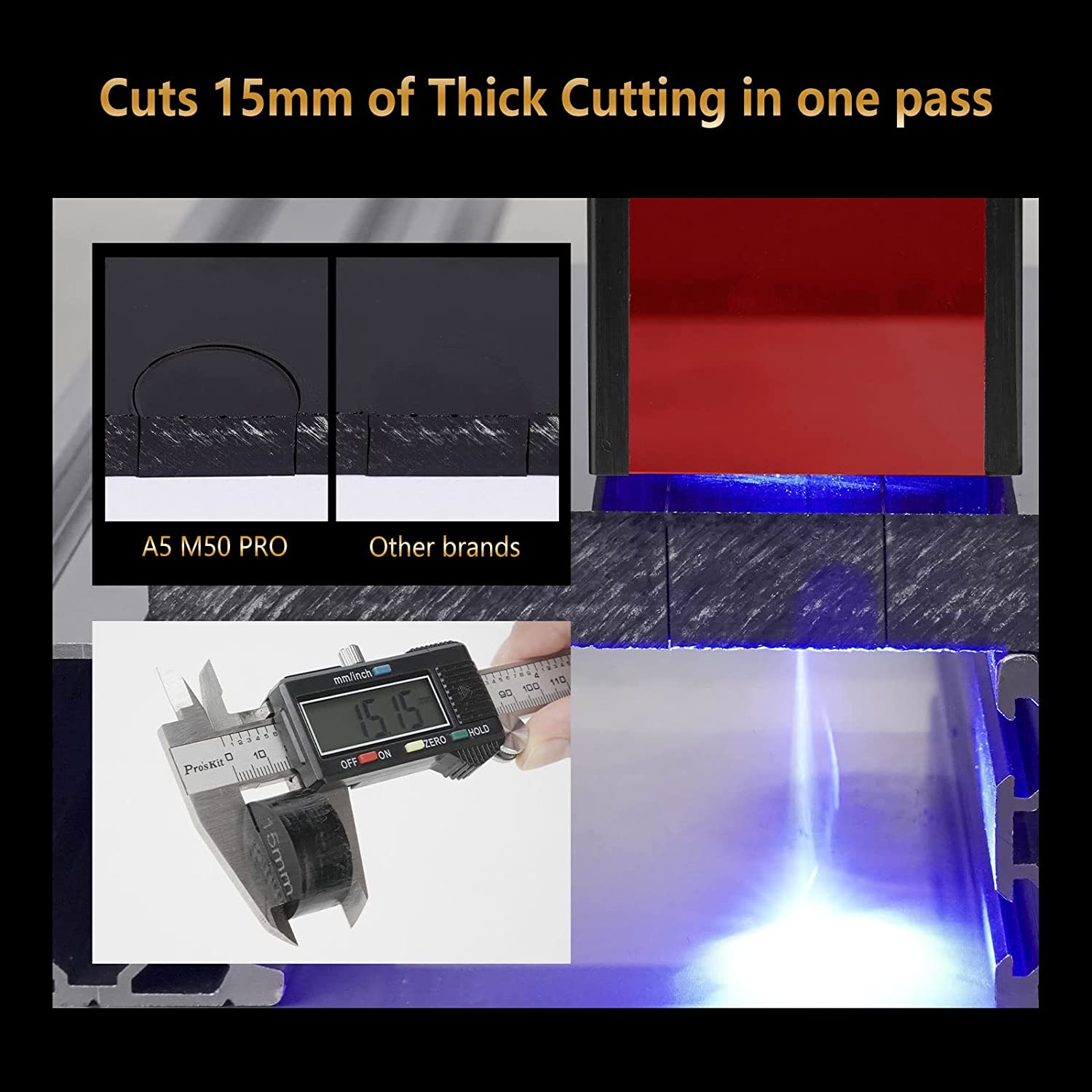

- Newly upgraded compression laser: Newly upgraded ultra-fine compression laser: The laser adopts 4-fold lens group collimation focusing technology, the optical power is 5-5.5W, the laser focal area is reduced to 0.08*0.08mm, the focal length of 30mm is adopted, and the effective energy range is longer , The laser can easily cut 15mm thick wood and 15mm black acrylic; it can directly engrave mirror stainless steel metal and ceramics, and can achieve the effect of 100W CO₂ laser engraver.
- Integral screw rod: The A5 M50 laser engraver uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.
- New laser with knob: It is more convenient and quick to adjust the height of the laser.
- Expandable engraving size: modular design of the body mechanism, only need to replace the frame components, you can get 410*850mm super large engraving size.
Atomstack A5 M50 Product Description:
- Item model number: ATOMSTACK A5 M50
- Engraving area: 410*400mm
- Carving materials: wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel;
- Cutting material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather;
- Laser power: 40W
- Laser output power: 5-5.5W
- Wave Length: 445 ± 5nm
- Engraving accuracy: 0.01mm
- Focusing method: fixed focus laser, no need to focus
- Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
- Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
- Input Format: NC, BMP, JPG, PNG, DXF, etc.
- Data transmission method: USB connection.
- Input Voltage: AC100-240V, 50/60Hz
- Output Voltage: DC12V, 5A
- Equipment net weight: 3.426kg
- Package weight: 5.072kg
- Equipment size: 570*600*270mm
- Packing size: 620*345*130mm
- Certification: CE FCC RoHS FDA
A5 M50 LASER ENGRAVER PACKAGE:
1 x X-axis assembly |
2 × Section 57CM |
2 × Section 48CM |
1 x Control box |
3 x Support legs |
1 × Goggles |
1 x Laser |
1 × 24V2A power adapter |
1 x Power switch line |
1 x USB cable |
Step 1~5 installation package |
1 × M5 wrench |
10 × Rolled belt |
3 x Small wood |
1 × Focal length film |
1 × M3 wrench |
1 x Brush |
3 × Small acrylic |
1×Stainless steel backing plate for cutting |
Note:
- When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
- Please do not touch the laser emitter with your hand, or it may burn your hand.
- Please avoid strong impact on the machine.
- Children under 14 are not allowed to use this product and children over 14 need adult supervision.
- The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
