[EU/US Direct] TwoTrees TS2 20W Desktop Diode Laser Engraving & Cutting Machine with Air Assist 410*410mm Large Engraving Area Laser Power APP Connection
DE Warehouse: ship to EU countries (Delivered within 3-4 business days.)
China Warehouse: ship to USA & Europe & Canada & Australia & Asia (Delivered within 8-12 business days.)
● Compressed Spot Technology: Advanced LD+FAC+C-lens technology enables the spot reach up to 0.08mm, and get much cleaner, thiner, smoother, deeper cuts. 20W super power laser supports high moving speed under strong stability.

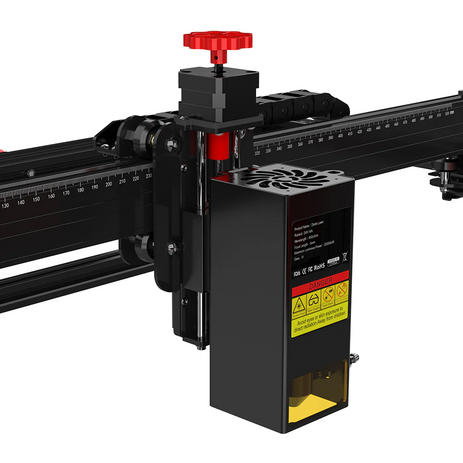

●Auto Focus: The Z-axis rising height is set via a custom button in the software and the focus is automatically adjusted for laser engraving and cutting.
● Support Offline Engraving: The machine supports operation via WIFI, TF card and USB connection. Connect and control it easily, no need messy cables.
● Design with flame detector, fire alarming, smart auto power off function and protection cover for maximized safety.
● Built-in Air Assist kit: The external air pump, as an enhanced additional accessory, will be used to assist to get the best effect in cutting and engraving.
30-Day Returns: Protect your shopping experience
12-Month Warranty: Perfect after-sales service
Two Trees TS2 Descriptions:
1. Key Function :
Working area: 410*410mm
Compressed Spot Technology : 20W laser is powerful to cut 8mm plywood easily. Advanced LD+FAC+C-lens technology enables the spot reach up to 0.08mm, and get much cleaner, thiner, smoother, deeper cuts. 20W super power laser supports high moving speed under strong stability.
Auto Focus : The Z-axis rising height is set via a custom button in the software and the focus is automatically adjusted for laser engraving and cutting.
Support Offline Engraving : Built-in ESP32-DOWD-V3 chip, 32-bit LX6 microprocessor, high speed dicing, support LaserGRBL and LightBurn software. Out of box DIY machine without complex installation. Easy to use APP makes it much more playable and funny. The machine supports operation via WIFI, TF card and USB connection. Connect and control it easily, no need messy cables.
2. Second Value :
Wire harness safety management: Double drag chain structure for X-axis and Y-axis, regulating and protecting the cables.
Design with flame detector, fire alarming, smart auto power off function and protection cover for maximized safety.
Laser protection: The laser will automatically stop within 10s when machine stops. For example, the laser head cannot be moved due to object obstruction (to prevent long emitted light from burning the object).
Emergency Stop Button: The machine stops working immediately after pressing the red emergency stop button. It cannot be started unless you turn the button in the right direction to unlock.
Limit Switch Design: Limit switches are installed on both X-axis and Y-axis. Easy to control the stoke whenever necessary. When the engraving stoke is at its maximum, the limit function will be automatically triggered to protect the laser and avoid collisions.
Built-in Air Assist kit : The laser head comes with a built-in air assist kit to improve engraving and cutting effect. The external air pump, as an enhanced additional accessory, will be used to assist to get the best effect in cutting and engraving.
Strong Support of Software and File Formats: L1ghtBurn/ LaserGRBL/APP (JPG/SVG/PNG/TIF/BMP/PDF/NG) Linux/Mac 0S / Windows (Win XP/ Win 7 /Win 8/ Win 10 / Win 11).
Extended Interface Module: Reserved screen serial port, offers more possibilities and expandability for DIY modification of the machine.
3. Service Value :
Strong Stability Design: XY axis tensioner: adjusts and tightens the timing belt by the tensioning pulley to improve the precision of the movement. New Y-axis motion structure design ensures it stable and synchronized operation, suitable for high-speed movements.
60% pre-assembled parts with modular design makes installation easier than ever before.
Silk-screened scale markings: for easy measurement and positioning of the engraved object.
- 410*410MM large size engraving area;
- Equipped with flame alarm system, which can send an alarm and stop engraving;
- Quick stop and quick shutdown, which is convenient for one-key on/off;
- Various control methods: APP operation, offline operation , online operation;
- The main board reserves an external display port, and customers can purchase an external display screen for offline use;
- ESP32 main control board is more compatible with GRBL&Lightburn software, and has higher engraving and cutting accuracy;
- Silk-screen scale profiles, easy to use Measure the size of engraved objects;
- Equipped with a laser automatic lifting module, which is easy to adjust;
- Laser touch automatic focus function, automatic focus, easy to use;
- X/Y axis belt tensioner design, easy to adjust the belt tightness;
- Tow chain routing design, the machine line is routed from the tow chain, and the appearance is clean;
- The unique Y-axis motor module design ensures the stability and synchronization of the Y-axis operation, and the engraving accuracy is higher;
- Matching Air-assisted system (excluding air pump), improve the engraving and cutting effect;
- With 20W high-power laser module, it can engrave/cut many materials (refer to the attached table for specific materials);
- Factory pre-assembled 60%, easy to install;
- Safety protection design: Within 10S when the machine stops moving, protection measures will be triggered to stop light emission and prevent burn-through.
Two Trees TS2 20W Parameters:
- Model: Two Trees TS2
- Laser Power: 20W
- Electrical Requirement: 24V 4A DC
- Motherboard: 32 bit
- Engraving Speed: 10000mm/min
- Engraving Method: USB / APP / Online/Screen Operation
- Software Support System: Mac. Windows, Lunix
- Laser Wavelength: 445 ± 5nm
- Engraving Size: 410x410mm
- Machine Weight: 7.4kg
- Engraving Materials: Wood, Plastic, Paper, Leather, Bamboo, Stainless Steel, Chevron, Acrylic, Glass, etc
- Machine Size: 733x721x172mm
- Engraving Mode: Image carving/text carving/scan carving/contour carving
- File format: SVG. NC. BMP, JPG, PNG, GCODE etc
- Support Software: LaserGRBL. Lightburn
- Software Support Language: English, German, Italian, French, Chinese
LaserGRBL VS LightBurn Software
LaserGRBL (Free) (Windows): LaserGRBL Download Page
LaserGRBL is one of the best Windows software for image Laser Engraving. It is able to load any image, pictures and logo and send to your laser engrave with few click. It is specifically developed for use with hobbist laser cutter and engraver and could be a good free and easy alternative to picengrave, benbox, T2laser, lightburn for who don’t need more then a simple and effective tool. LaserGRBL is compatible with any engraver based on Grbl v0.9 and Grbl v1.1 standards.
LightBurn is layout, editing, and control software for your laser cutter. With LightBurn you can:
- Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, BMP)
- Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing
- Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more
- Send the result directly to your laser cutter
LightBurn is a native application written for Windows, Mac OS, and Linux.
