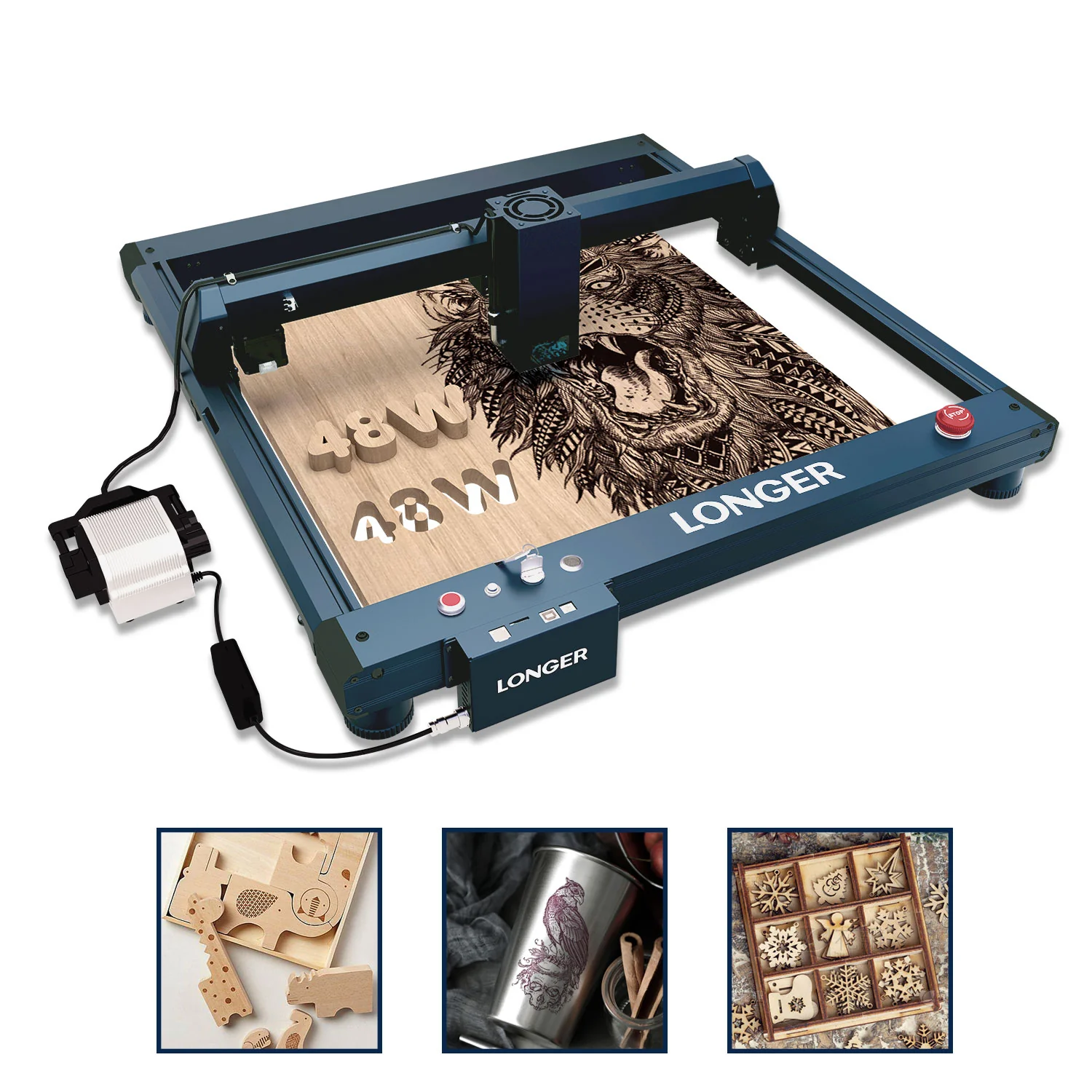

Longer Laser B1 40W Engraver with Auto Air Assist 44-48W Laser Output Power Laser Engraving Cutting Machine for Wood Metal Paper Acrylic Glass Leather


Longer


  • The 44-48W Output & 8-Core Laser Head
  • The highly concentrated laser beam increases cutting capabilities by 20%, can cut through 40mm basswood and 50mm acrylic.
  • 450 x 440mm engraving area, ideal for A3 panels
  • Maximum engraving speed up to 36,000 mm/minute,32 bits chipset
  • Equipped with smart Air-Assist system automatically controlled by lightburn
  • 8 major safety protections and sturdy fram
  • Accesssories Coming Soon:Honeycomb Table and Rotary Roller.Available; Camera,Aug 1st; Extension kits,Sept 1st; Enclosers & Touch Screen,Sept 15th

US Warehouse: ship to USA (Delivered within 3-4 business days.)
Save -13% $1,399.99 $1,599.99

Notify Me
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Features:
  • 44-48W Ultra-high Power Laser: With the most advanced six-core laser technology, Laser B1 40W has a strong 44-48W optical output power, one of the most strongest available diode-laser today and thus a much stronger cutting ability. Laser B1 can cut through 20mm paulownia wood, 10mm black acrylic, and even 0.1mm stainless steel in one-pass, 40mm basswood and 50mm black acrylic in multi-passes.
  • Highly Concentrated Laser and Stronger Cutting: With the most cutting edge laser coupling technology, Laser B1 40W has a thinner and longer focal length(50mm), yet stronger laser beam, which increase the cutting capability 20%+ stronger comparing to other 40W lasers. It can cut through 40mm basswood and 50mm black acrylic by multi-passes.
  • Bigger Working Frame: 17.72x17.32 inches/450x440mm working area, Laser B1 40W provides a 23.75% increase in working size comparing to others, which meets the demands of most scenarios, especially ideal for A3 panels.
  • 36,000mm/min High Speed: Laser B1 is equipped with a new 32-bit motherboard, which allows engraving speed up to 36,000mm/min, four times faster than ordinary laser engraving machines. In addition, TMC2209 silent drivers is used to effectively reduce the noise of operation, providing a faster and more enjoyable experience.
  • Smart Air-Assist System: Air-assist pump can be automatically turned on/off. This is controlled directly by the lightburn, based on the parameters set in the program, which greatly enhances cutting ability and also significantly improves cutting precision and quality.
  • Multi-Color Engraving: The high-energy laser beam instantly oxidizes the metal surface, bringing 300+ rich colors to fulfill your colorful creative needs.
  • Eight Major Safety Protections: Eight safety protection features are installed, i.e. Move/ Flame/Offline/Motionless/Security Lock/Eye Protection/Emergency Stop Button/Zero Reset. Laser automatically shuts down when falling, flame, data disconnection and laser head freezing over 15 seconds are detected. In addition, laser head is automatically reset to zero to avoid burnout when fire. And the panoramic filter glass can effectively filter 99.8% of the laser, safer to use.
  • Engraving up to 1000+ Materials: With 44-48W laser power and its strong cutting and engraving capacities, Laser B1 can cut or engrave up to 1000+ materials, such as wood, stainless steel, leather, silver, acrylic, cloth and more.
  • Sturdy Metal Frame: Laser B1 40W is made with an aluminum frame with improved mechanical designs and is very stable even under high-speed working mode. This helps to make better engraving and cutting arts.
  • Focus Positioning Bar: The laser module integrates a pull-down focus bar, which is easy to use, just pull down the focus bar, and move the bar towards the surface of the working panel.
  • XY-axis Limit Switches: Added X-axis and Y-axis limit switches can accurately locate the position of the laser module. At the same time, if the laser module moves in the negative direction of the X-axis or Y-axis, Laser B1 will trigger an alarm and stop the movement.
  • Laser Lens Protection: Laser module is equipped with a replaceable protective lens, which effectively prevents the smoke from polluting the laser lens, and greatly improve the service life of laser module.
  • Multiple Data Transfer Options: Data can be transferred via different methods of Wi-Fi, USB cable, APP and TF cards , which supports offline operations. You can use anywhere, without the limits of physical connection to a computer.
  • Great Software Support: Laser B1 is compatible with various mature carving software, such as LaserGRBL and LightBurn. It supports Windows 7+, macOS, Linux; engraving file formats Support JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc.

Product Specifications:

Model number Laser B1 40W Laser B1 30W
Laser technology Diode Laser Technology Diode Laser Technology
Work area 450x440mm (17.72x17.32inch) 450x440mm (17.72x17.32inch)
Laser wavelength 450nm 450nm
Focal length Fixed Focus-50mm Fixed Focus-50mm
Laser spot size 0.10x0.15mm 0.08x0.1mm
Optical output power 44-48W 33~36W
Z axis - height range Up to 50mm Up to 50mm
The fastest working speed 36000mm/min 36000mm/min
Engraving machine output DC24V 9A 216W DC24V 7.5A 180W
Engraving machine input AC 110-240V, 50/60Hz AC 110-240V, 50/60Hz
Software LaserGRBL on XP/7/8/10 (Free),LightBurn on Windows, Mac OS, and Linux LaserGRBL on XP/7/8/10 (Free),LightBurn on Windows, Mac OS, and Linux
Connect USB / TF Card / Wifi / APP USB / TF Card / Wifi / APP
Engraving technique Eight diode lasers with FAC Six diode lasers with FAC
Cutting parameters one-pass 25mm paulownia wood, 15mm black acrylic, 0.15mm stainless steel plate 20mm paulownia wood, 10mm black acrylic, 0.1mm stainless steel plate
Cut maximum 40mm basswood, 50mm black acrylic 25mm basswood, 50mm black acrylic
Laser head life 10000+ hours 10000+ hours
Rated power 175W 145W
Motherboard 32-bit motherboard 32-bit motherboard
Limit switch X Y-axis limit switches X Y-axis limit switches
Compatible device PC, mobiles PC, mobiles



LaserGRBL VS LightBurn Software

LaserGRBL (Free) (Windows): LaserGRBL Download Page

LaserGRBL is one of the best Windows software for image Laser Engraving. It is able to load any image, pictures and logo and send to your laser engrave with few click. It is specifically developed for use with hobbist laser cutter and engraver and could be a good free and easy alternative to picengrave, benbox, T2laser, lightburn for who don’t need more then a simple and effective tool. LaserGRBL is compatible with any engraver based on Grbl v0.9 and Grbl v1.1 standards.

LightBurn (Paid - 30 Day Free Trial) (Windows/Mac OS/Linux): LightBurn Download Page  , Purchase LightBurn software key.

LightBurn is layout, editing, and control software for your laser cutter. With LightBurn you can:

- Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, BMP)

- Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing

- Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more

- Send the result directly to your laser cutter

LightBurn is a native application written for Windows, Mac OS, and Linux.
