Atomstack A5 M40 Laser Engraving Machine 40W for Wood Leather Acrylic Metal 5.5W Laser Output DIY Engraver Tool


Atomstack


★The Atomstack A5 M40 Is An Upgrade Version Of The A5 Pro
★5.5mm Wood Board And a 2.8mm Black Acrylic Board In One Pass
★Can Also Directly Craft Smooth Stainless Steel
★410x400mm Engraving Areameet Various Engraving Needs

$499.99

AC POWER PLUG
shiping   US Warehouse: In stock in the US (arrived within 2 to 5 days)
return    30-Day Returns: Protect your shopping experience
safe   12-Month Warranty: Perfect after-sales service
Notify Me
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Atomstack A5 M40 Features:

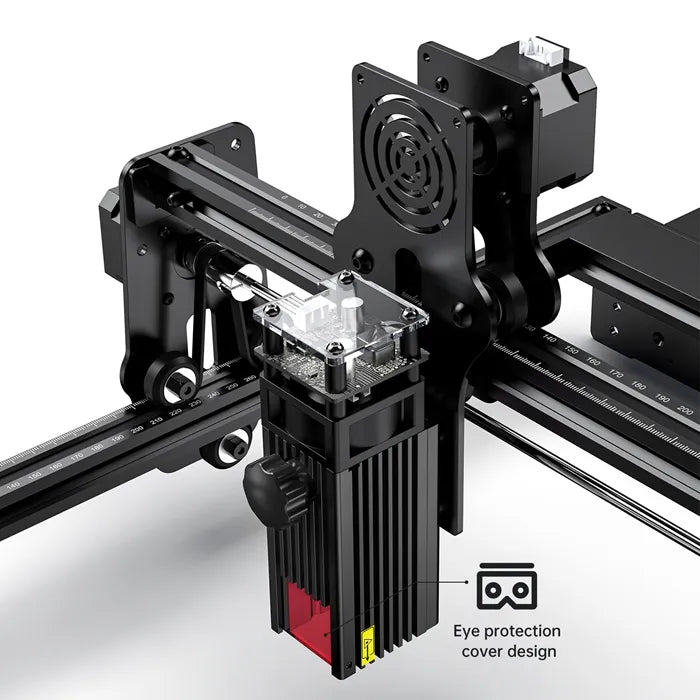

  • New eye protection design:The laser protective cover perfectly protect your eyes,filter UV light for 97%. You and the people around  can watch laser engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.

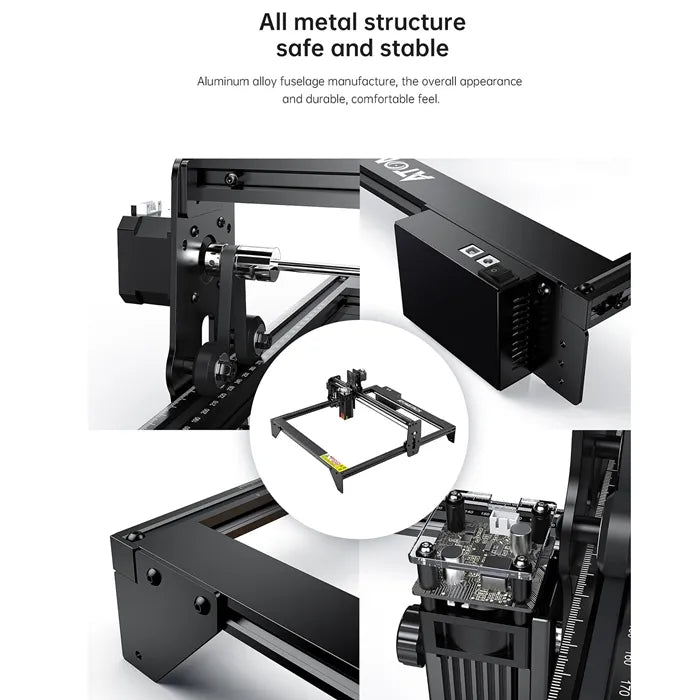

  • Solid and easy installation structure design:The all-aluminum alloy anodized structure design makes the laser engraver more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.
  • Upgraded high-performance fixed-focus laser: no need to adjust the focus before engraving;The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
  • Wide compatibility:The Atomstack A5 M40 can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
  • Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

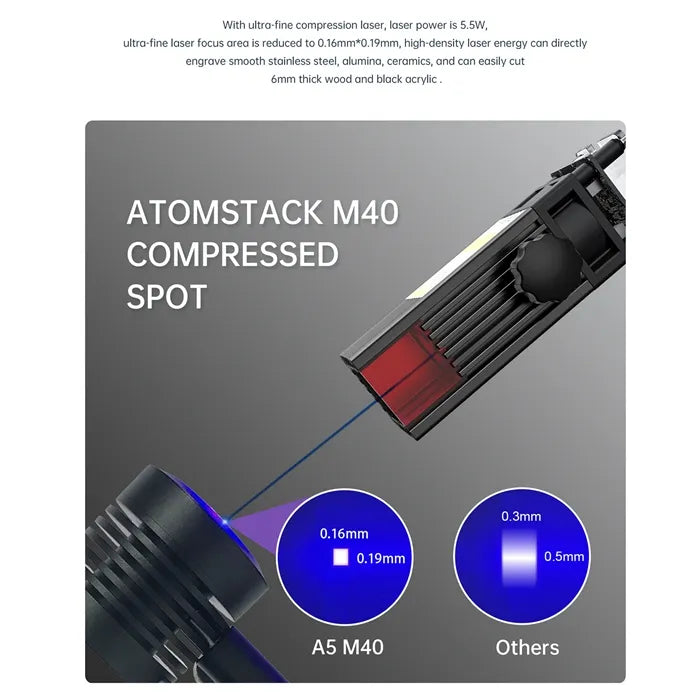

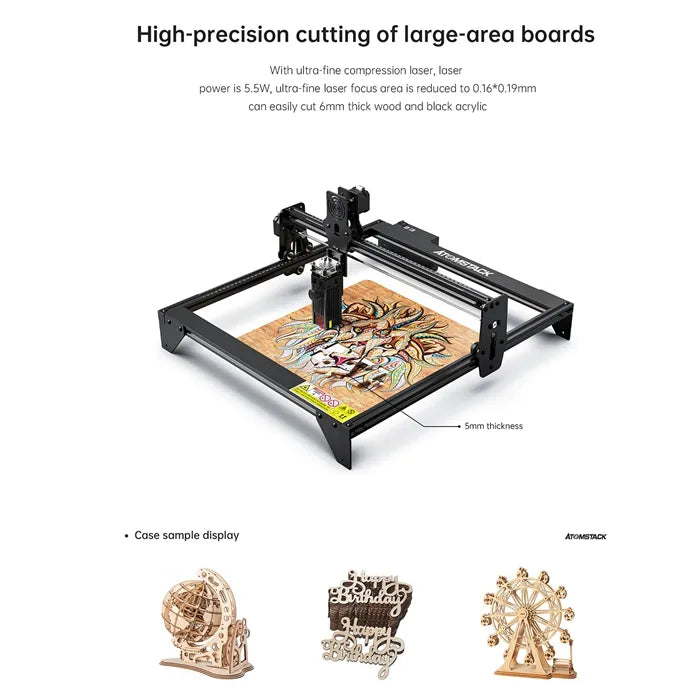

  • Ultra-fine compression laser: The laser power is 4.5~5.5W, and the ultra-fine laser focus area is reduced to 0.16*0.19mm. The high-density laser can easily cut 6mm thick wood and black acrylic; it can directly engrave smooth stainless steel metal and ceramics.

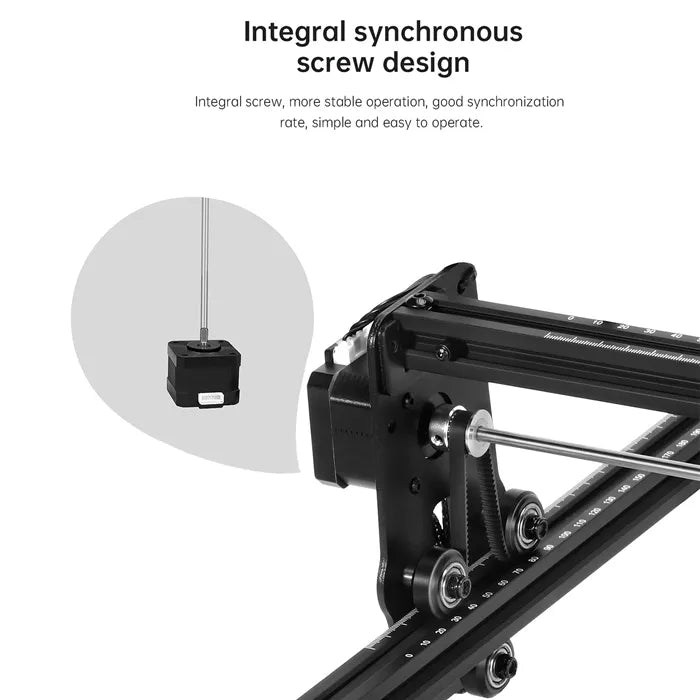

  • Integral screw rod: The laser engraver uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

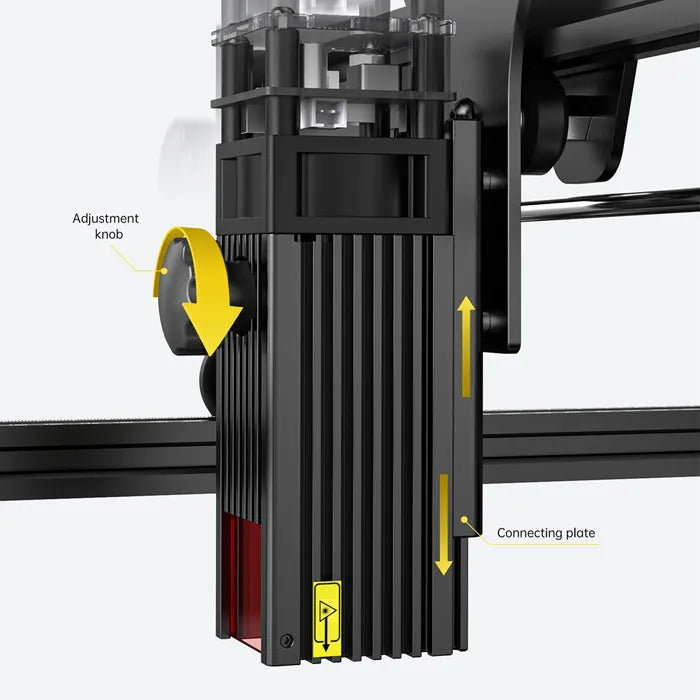

  • New laser with knob: It is more convenient and quick to adjust the height of the laser.

A5 M40 Laser Engraving Machine Product Description:

  • Item model number: ATOMSTACK A5 M40
  • Print Size: Recommend Print Size 410*400mm
  • Carving Objects:All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal,Utility knife after blacking
  • Cutting Objects:Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.
  • Laser power: 40W
  • Laser output power: 4.5-5.5W
  • Wave Length: 445 ± 5nm
  • Engraving accuracy: 0.01mm
  • Focusing method: fixed focus laser, no need to focus
  • Laser protective cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
  • Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
  • Input Format: NC, BMP, JPG, PNG, DXF, etc.
  • Data transmission method: USB connection.
  • Input Voltage: AC100-240V, 50/60Hz
  • Output Voltage: DC12V, 5A
  • Equipment net weight: 3.426kg
  • Package weight: 5.072kg
  • Equipment size: 570*600*270mm
  • Packing size: 620*345*130mm
  • Certification: CE FCC RoHS FDA

A5 M40 LASER ENGRAVER PACKAGE:

1 x X-axis assembly
2 × Section 57CM
2 × Section 48CM
1 x Control box
3 x Support legs
1 × Goggles
1 x Laser
1 × 24V2A power adapter
1 x Power switch line
1 x USB cable
Step 1~5 installation package
1 × M5 wrench
10 × Rolled belt
3 x Small wood
1 x Focal length film
1 x Marker
1 x Brush
3 × Small acrylic
1 × Stainless steel backing plate for cutting

Note:

  • When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
  • Please do not touch the laser emitter with your hand, or it may burn your hand.
  • Please avoid strong impact on the machine.
  • Children under 14 are not allowed to use this product and children over 14 need adult supervision.
  • The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.

atomstack a5 m40 laser engraving a5 m40 laser engraver atomstack a5 m40 laser engraving machine atomstack a5 m40 laser cutter for wood laser engraving machine for metal atomstack a5 m40 laser engraving a5 m40 engraving laser atomstack a5 m40 laser cutter a5 m40 laser engraving a5 m40 laser engravers a5 m40 wood laser cutter

LaserGRBL VS LightBurn Software

LaserGRBL (Free) (Windows): LaserGRBL Download Page

LaserGRBL is one of the best Windows software for image Laser Engraving. It is able to load any image, pictures and logo and send to your laser engrave with few click. It is specifically developed for use with hobbist laser cutter and engraver and could be a good free and easy alternative to picengrave, benbox, T2laser, lightburn for who don’t need more then a simple and effective tool. LaserGRBL is compatible with any engraver based on Grbl v0.9 and Grbl v1.1 standards.

LightBurn (Paid - 30 Day Free Trial) (Windows/Mac OS/Linux): LightBurn Download Page  , Purchase LightBurn software key.

LightBurn is layout, editing, and control software for your laser cutter. With LightBurn you can:

- Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, BMP)

- Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing

- Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more

- Send the result directly to your laser cutter

LightBurn is a native application written for Windows, Mac OS, and Linux.
