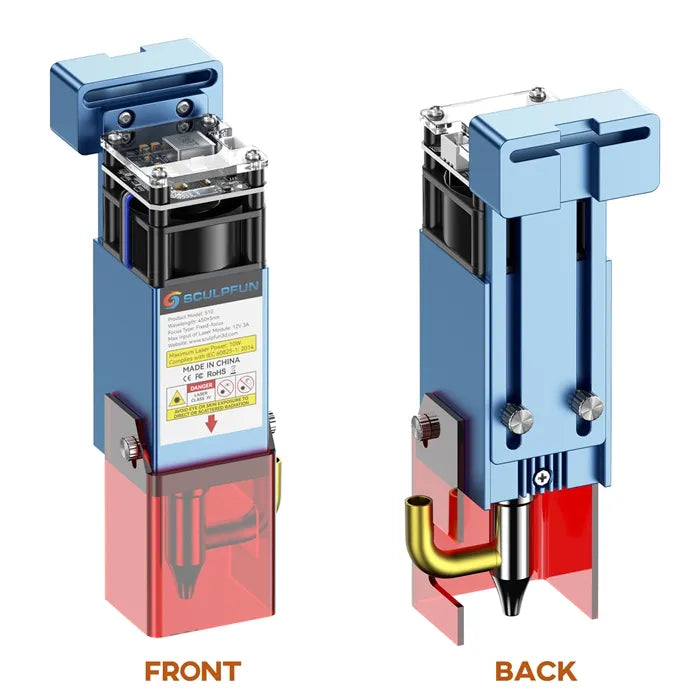

10W Engraving Laser Module for SCULPFUN S10 With High Speed Air Assist & High Density Laser Beam & 0.08mm Ultra-Fine Compressed Spot
SCULPFUN S10 Laser Module Feature:
- Powerful high-speed air assist: S10 is equipped with a high-speed air assist nozzle. The difference of this nozzle is that it has an advanced fluid mechanics design to better utilize the air pressure. When using the same air compressor, the S10 spray airflow faster. For example, when using 30L/min, 0.03Mpa air compressor, the S10 nozzle will spray high-speed airflow up to 14.5m/s. This will greatly improve the cutting penetration and cutting efficiency.

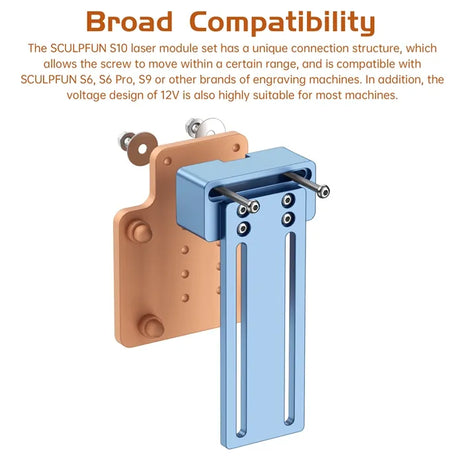

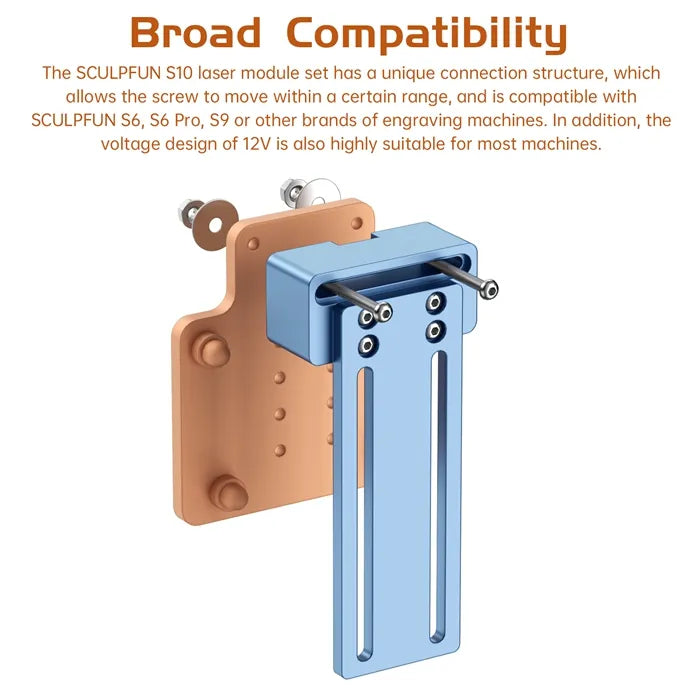

- Widely compatible design: The SCULPFUN laser module has a clever and widely compatible structural connection device, which can be well adapted to different laser engraving machines, laser cutting machines, 3D printer, CNC milling machines, etc. It can be installed on a variety of brand machines, such as SCULPFUN S9/S6pro/S6、ATOMSTACK A5 Pro, ORTUR(12V Version) laser engraver, or other DIY type machines.

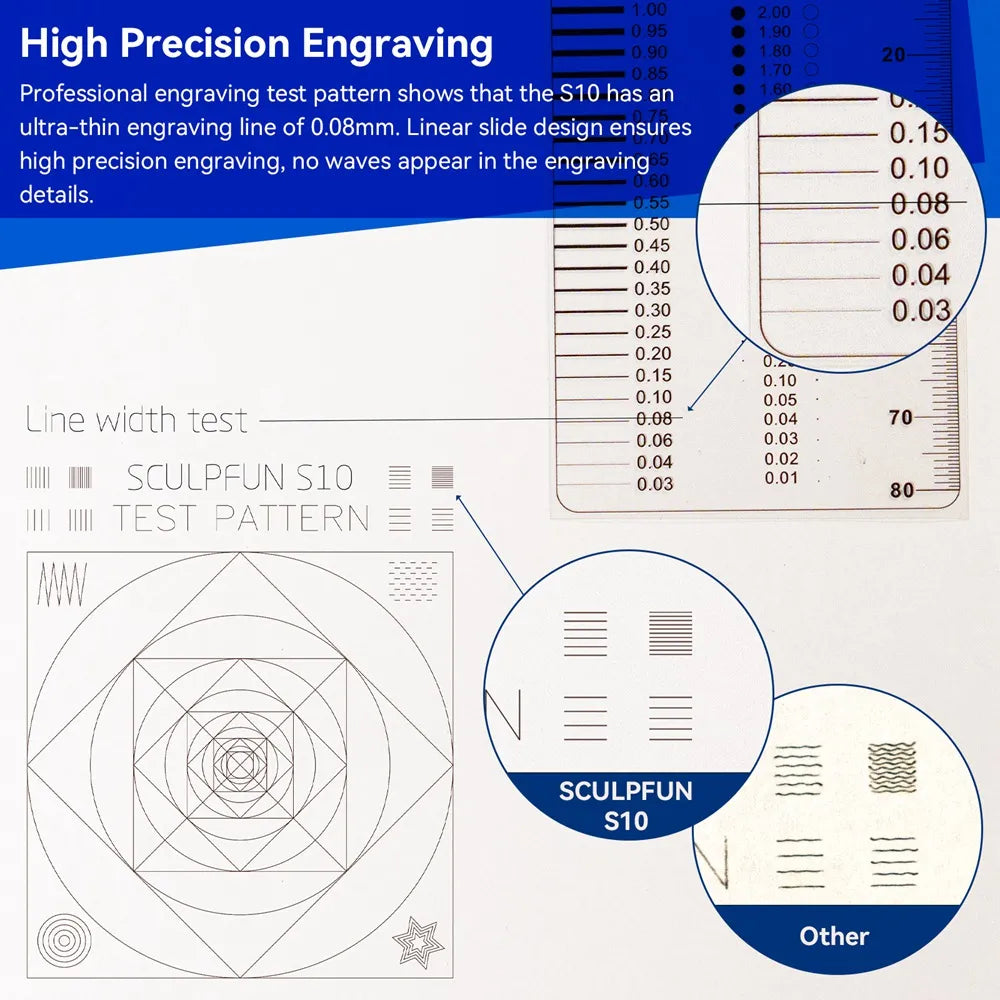

- Ultra-thin high density 10W laser beam shaping technology: The S10 laser output power is increased to 10W, which is twice that of the S9. But S10 obtains the same ultra-thin laser beam with 0.08mm focus as S9 , which means S10 has higher energy density, stronger cutting penetration and engraving capabilities.

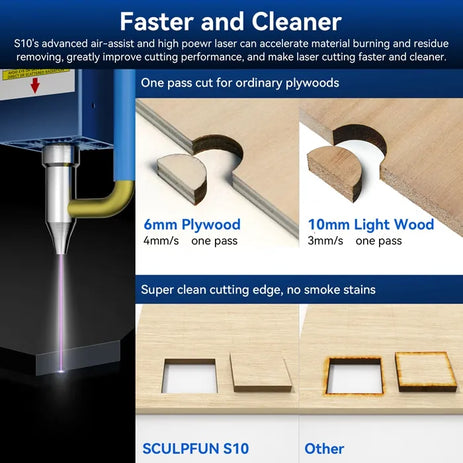

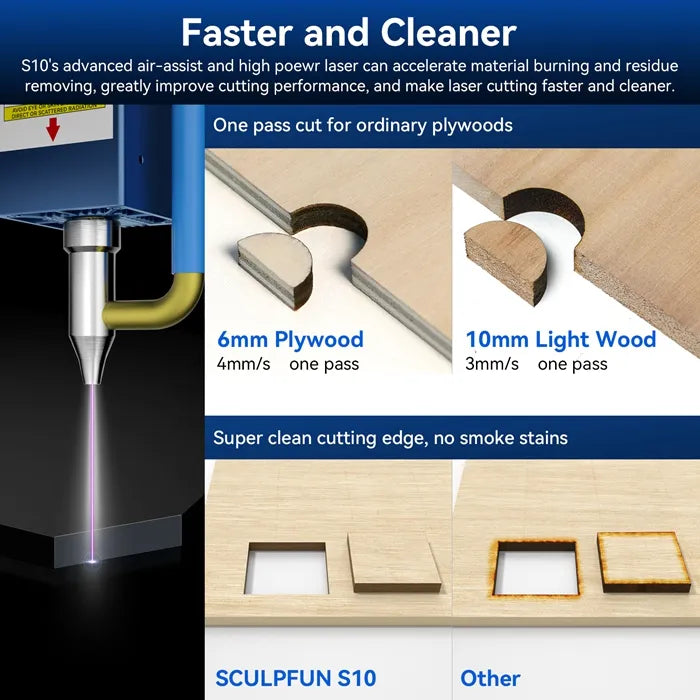

- Faster, stronger, cleaner: Combining advanced high-speed air assist and 10W high density laser, S10 shows comparable to industrial-grade wood cutting performance: First, the cutting efficiency is greatly improved, cut faster; Second, the cutting penetration is stronger, and many high-density woods can be cut; Third, the cutting surface is cleaner, the powerful airflow blows away the residue, so that there is no stain on the surface of the cutting object.

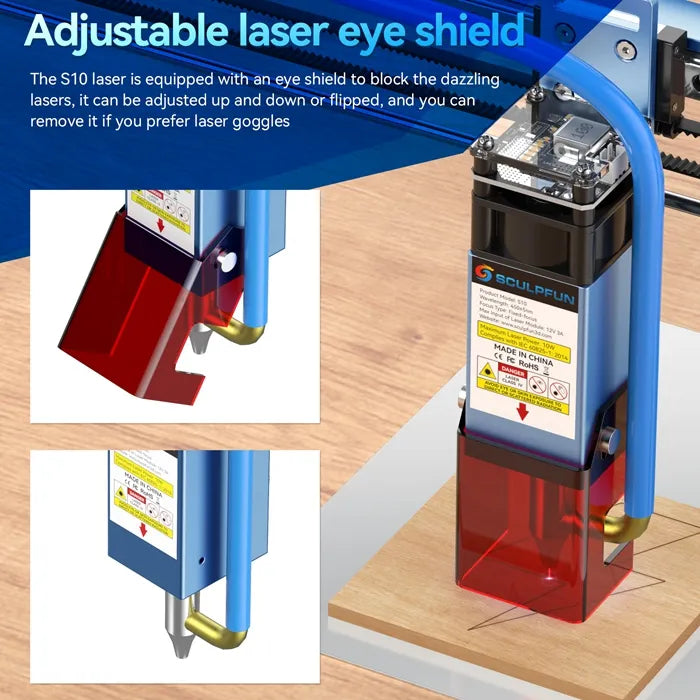

- Adjustable laser eye shield: The S10 laser is equipped with a detachable eye shield, which will not dazzle even without glasses. And if you don't need it, you can easily disassemble the eye shield.
- General 12V/PWM modulation board: It uses a common 12V/PWM modulation board, which can be adapted to common GRBL or CNC motherboards. You can view product pictures for details.
Laser Module for Sculpfun S10 Parameter:
- Product model: SCULPFUN S10 Laser module

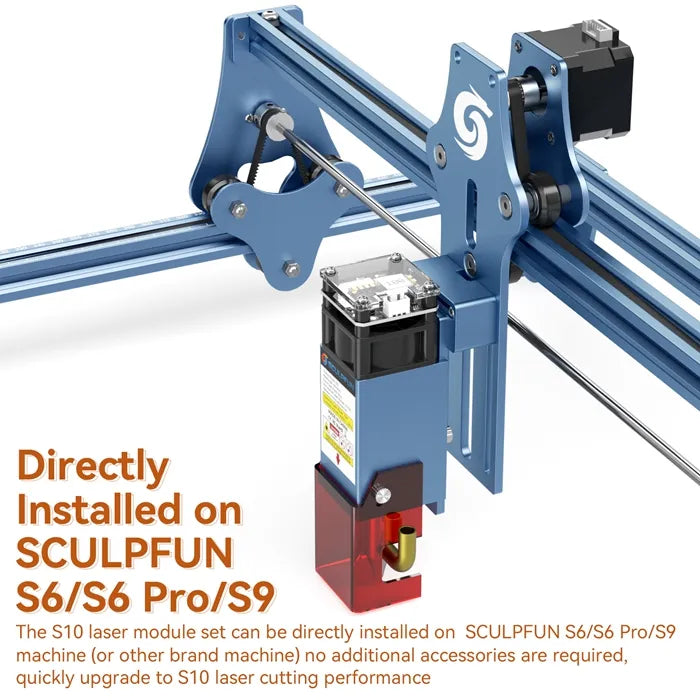

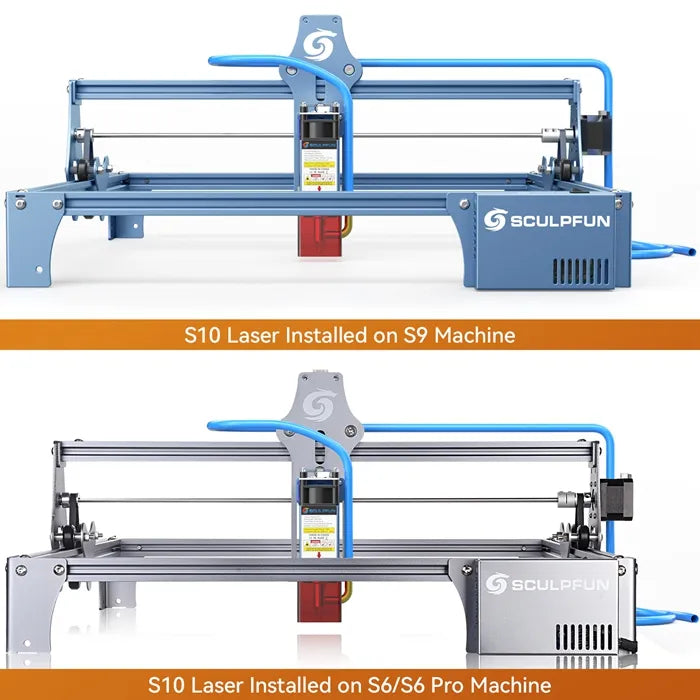

- Applicable machines: laser engravers such as SCULPFUN S9/S6pro/S6、ATOMSTACK A5/A5Pro、ORTUR(12V Version), ELEKSMAKER, or DIY 3D printers, CNC machine tools.
- How to judge whether the Sculpfun S10 laser is suitable for use? You need to pay attention that the input voltage of the S10 laser is 12V, and the S10 is a 3pin interface, you can check the detailed pictures.
- Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone

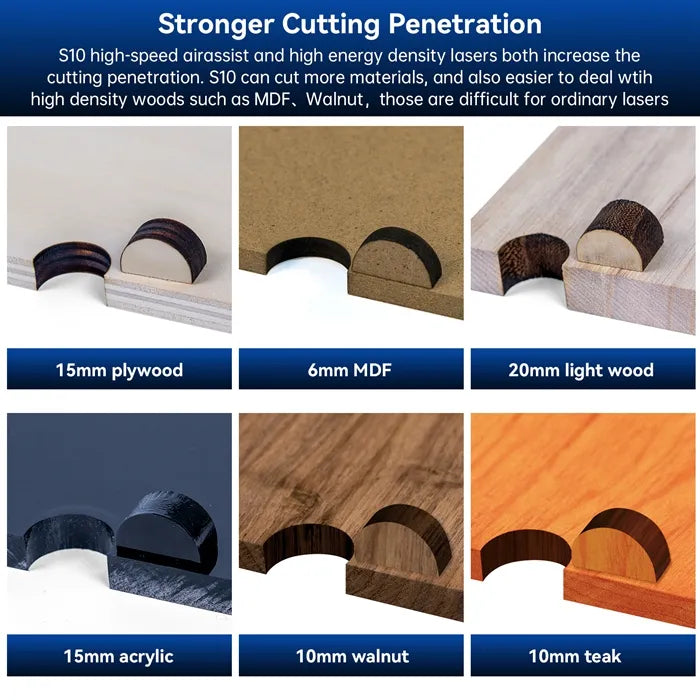

- Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards
- Laser output power: 10W (light energy)
- Inner diameter of air pipe: 7.5mm (recommended to use 30L/min, 0.03Mpa air compressor, out diameter of nozzle:8mm)
- Laser wavelength 455±5nm
- Laser type and fixed focus: fixed focus laser, fixed focus through 50mm measuring column
- Laser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.
- Laser shell material: aluminum alloy
- Circuit Board Size: 40*40mm
- Circuit Board:12V/PWM modulation board
- Input voltage: 12V
- Max Input of laser module:12V 5A

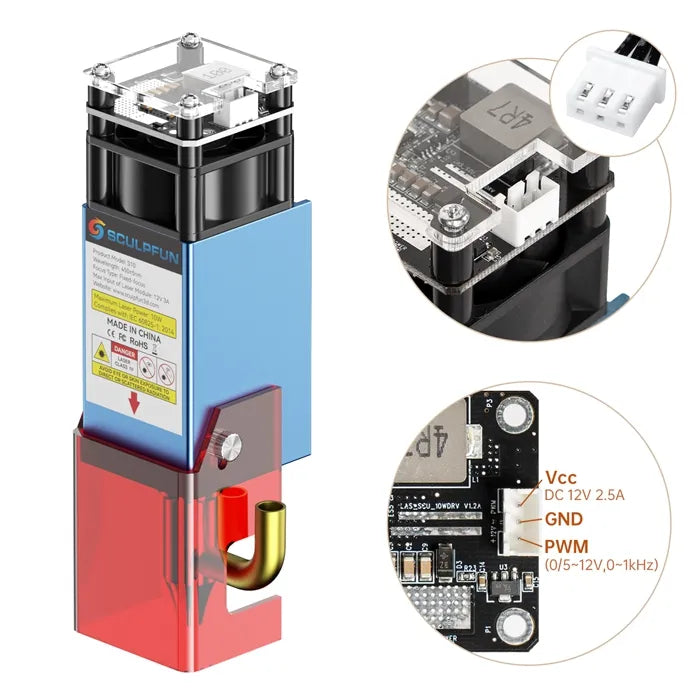

- Wire Rod:HY2.0, 3Pin terminal (3-core cable, A: PWM +, B: GND, C: VCC ).
- Fan:12V 0.15A 4020 fan
- Fan speed: 15000 rpm
- Operating temperature: -20 ℃ to 70 ℃
- Package weight: 0.85kg
- Packing size: 22.7*13.6*9.5cm

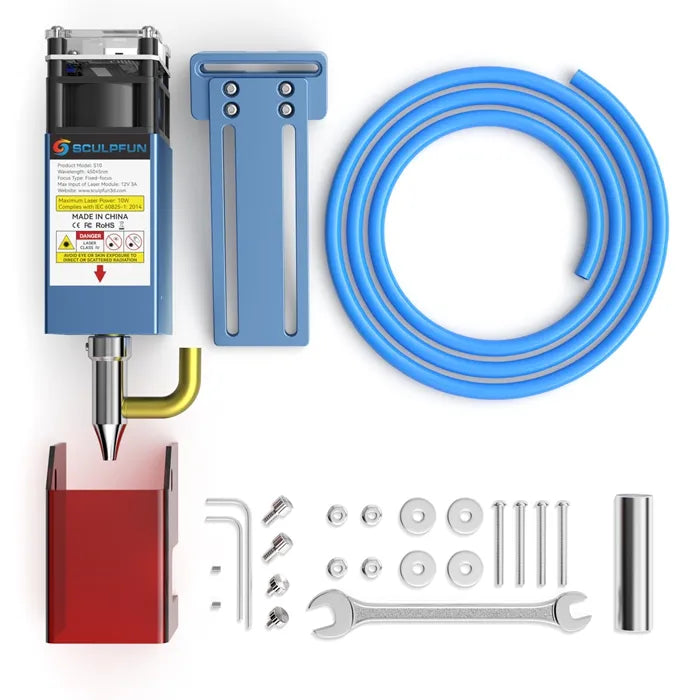

S10 Laser Module Packing list:
- 7.5mm inner diameter air tube*1
- acrylic protective cover*1
- S10 Laser head*1
- Multi-function connector*1
- 50mm measuring column*1
- Screw and tool kit*1
- Because of the powerful laser of S10, it is forbidden to run the engraving machine unattended. Pause it if you're not around.
- For detailed machine instructions, please refer to the manual for parameter settings.
- When operating the laser engraving machine, please install the laser protective cover; if it is not installed, you need to wear goggles.
- Do not touch the laser with your hands, otherwise you may burn your hands.
- Please avoid strong impact on the machine.
- It is forbidden for children under 14 years old to use this product, and children over 14 years old need adult attended.
- Do not use the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.
LaserGRBL VS LightBurn Software
LaserGRBL (Free) (Windows): LaserGRBL Download Page
LaserGRBL is one of the best Windows software for image Laser Engraving. It is able to load any image, pictures and logo and send to your laser engrave with few click. It is specifically developed for use with hobbist laser cutter and engraver and could be a good free and easy alternative to picengrave, benbox, T2laser, lightburn for who don’t need more then a simple and effective tool. LaserGRBL is compatible with any engraver based on Grbl v0.9 and Grbl v1.1 standards.
LightBurn is layout, editing, and control software for your laser cutter. With LightBurn you can:
- Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, BMP)
- Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing
- Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more
- Send the result directly to your laser cutter
LightBurn is a native application written for Windows, Mac OS, and Linux.
