10W Laser Module for SCULPFUN S30 Pro Interchangeable Lens Built-in Air Assist For SCULPFUN S9/S6pro/S6 ATOMSTACK A5/A5Pro Laser Cutting Machine
Sculpfun
SCULPFUN S30 Pro Laser Module Features:

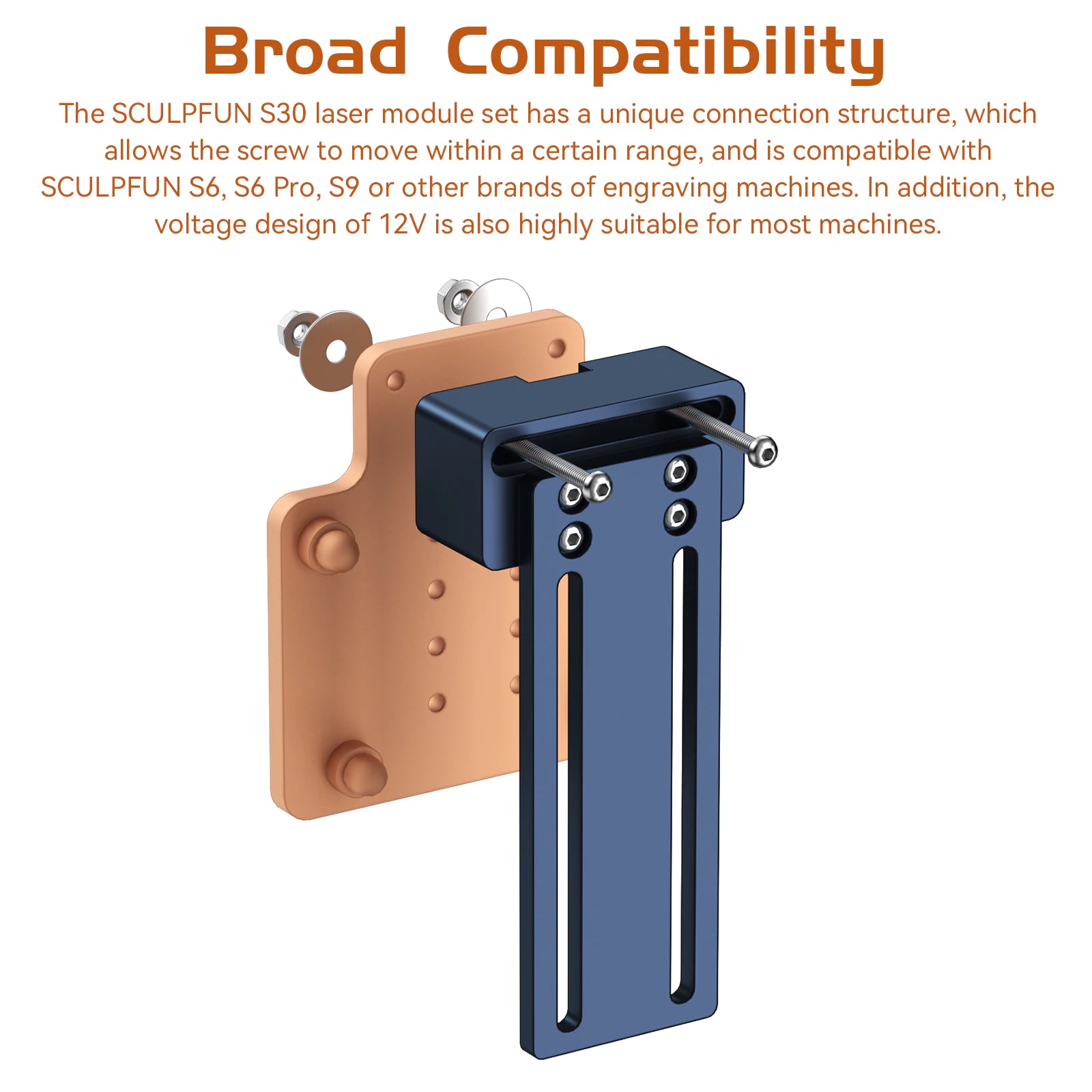

- Wide Compatibility: With an ingenious and highly compatible structural connection device, S30PRO module can be well adapted to different laser engraving machines, laser cutting machines, DIY 3D printers, CNC milling machines, etc. Compatible with SCULPFUN S9/S6pro/S6, ATOMSTACK A5/A5Pro, ORTUR (12V version) laser engraving machine.
- Ultra-fine and high-density 10W laser shaping technology: The laser power of S30 Pro is increased to 10W, which is twice that of S9. But getting the same 0.08mm focus ultra-fine laser beam as the S9 means that the S30 Pro has higher energy density, stronger cutting penetration and engraving capabilities.
- Powerful High-Speed Air Assist: S30 Pro is equipped with an advanced high-pressure air-assisted metal nozzle, which can generate high-pressure airflow under the air pump, greatly improving the cutting efficiency, and the cutting speed is more than 5 times faster than that without air assistance.
- Detachable laser eye shiel d: Equipped with a detachable eye shiel d, which will not dazzle even without glasses. Also, if you don't need it, you can easily disassemble it.
- Stronger&Cleaner: Combining advanced high-speed air assist and 10W high-energy density laser, many high-density woods such as can be cut; And the cutting surface is cleaner with powerful airflow blows away the residue, free of any stains.
- Universal 12V/PWM modulation board: It uses a common 12V/PWM modulation board, which can be adapted to common GRBL or CNC motherboards. See product pictures for details.
Laser Module for SCULPFUN S30 Pro Specification:
- Module: SCULPFUN S30 Pro Laser module
- For: laser engraving machines such as SCULPFUN S9/S6pro/S6、ATOMSTACK A5/A5Pro、ORTUR(12V Version), ELEKSMAKER, or DIY 3D printers, CNC machine tools.
- Engraving Materials: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone
- Cutting Materials: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards
- Laser Output Power: 10W (light energy)
- Inner diameter of Air Pipe: 7.5mm (recommended to use 30L/min, 0.03Mpa air compressor, out diameter of nozzle:8mm)
- Laser Wavelength: 455±5nm
- Laser Type and Fixed Focus: fixed focus laser, fixed focus through 50mm measuring column
- Laser Shell Material: aluminum alloy
- Laser circuit board
- Circuit Board Size: 40*40mm
- Circuit Board:12V/PWM modulation board
- Input voltage: 12V
- Max Input of laser module:12V 5A
- Wire Rod:HY2.0, 3Pin terminal (3-core cable, A: PWM +, B: GND, C: VCC ).
- Fan:12V 0.15A 4020 fan
- Fan speed: 15000 rpm
- Operating temperature: -20 ℃ to 70 ℃
- Package Weight: 0.6kg/21.1oz
- Package Size: 305x150x125mm/12x5.9x4.9in
Note:
How to judge whether the Sculpfun S30 Pro laser is suitable for use? You need to pay attention that the input voltage of the S30 Pro laser is 12V, and the S30 Pro is a 3pin interface, you can check the detailed pictures.
- Because of the powerful laser of S30 Pro, it is forbidden to run the engraving machine unattended. Pause it if you're not around.
- For detailed machine instructions, please refer to the manual for parameter settings.
- When operating the laser engraver, please install the laser protective cover; if it is not installed, you need to wear goggles.
- Do not touch the laser with your hands, otherwise you may burn your hands.
- Please avoid strong impact on the machine.
- It is forbidden for children under 14 years old to use this product, and children over 14 years old need adult attended.
- Do not use the laser directly on any specular reflection object, which may cause injury to the operator or burn the laser.
Packing List:
- 1 x 7.5mm inner diameter air tube
- 1 x acrylic protective cover
- 1 x S30 Pro Laser head
- 1 x Multi-function connector
- 1 x 50mm measuring column
- 1 x Screw and tool kit
LaserGRBL VS LightBurn Software
LaserGRBL (Free) (Windows): LaserGRBL Download Page
LaserGRBL is one of the best Windows software for image Laser Engraving. It is able to load any image, pictures and logo and send to your laser engrave with few click. It is specifically developed for use with hobbist laser cutter and engraver and could be a good free and easy alternative to picengrave, benbox, T2laser, lightburn for who don’t need more then a simple and effective tool. LaserGRBL is compatible with any engraver based on Grbl v0.9 and Grbl v1.1 standards.
LightBurn (Paid - 30 Day Free Trial) (Windows/Mac OS/Linux): LightBurn Download Page , Purchase LightBurn software key.
LightBurn is layout, editing, and control software for your laser cutter. With LightBurn you can:
- Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, BMP)
- Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing
- Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more
- Send the result directly to your laser cutter
LightBurn is a native application written for Windows, Mac OS, and Linux.
